Gear Sensor/Switch: Service and Repair

28 10 020 Removing and installing or replacing combination sensor (GS7D36SG)





Important!
After completion of work, check transmission oil level.
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).

Necessary preliminary work:





^ Remove twin clutch transmission
^ Remove clutch

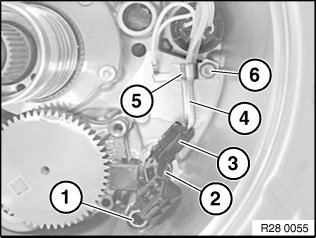

Release screw (1).

Tightening torque 28 10 6AZ.

Release combination sensor (2) from housing.

Disconnect connector (3).

Installation note:
Replace screw.

Important!
Do not where possible release cable (4) from bracket (5).

Installation note:
If bracket (5) does have to be released, replace aluminum screw (6).

Tightening torque 28 10 11AZ.

Important!

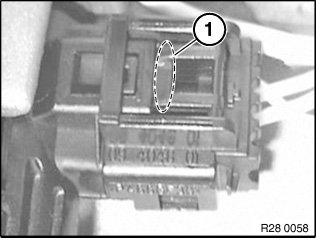

To disconnect the combination sensor connector:
Press lock together in area (1) and simultaneously detach connector.

���:
