Wiring Harness: Service and Repair

28 60 020 Replacing wiring harness (GS7D36SG)





Important!
After completion of work, check gearbox oil level.
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).

Necessary preliminary work:
^ Remove twin-clutch gearbox
^ Remove mechatronics





^ Remove clutch

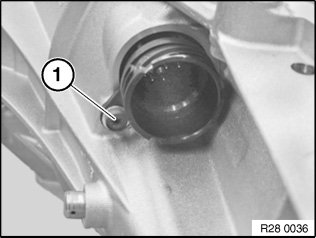

Release screw (1).

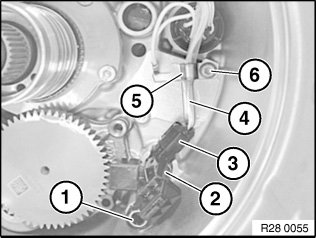

Release screw (1).

Tightening torque: 28 10 6AZ.

Release aluminum screw (6).

Tightening torque: 28 10 11AZ.

Installation note:
Replace aluminum screw.

Release combination sensor (2) from housing.

Disconnect connector (3).

Removing wiring harness (4) with earth terminal (5) from housing.

Important!
Guide earth terminal (5) carefully through transmission connector bore.
Risk of damage to sealing surface.





Important!

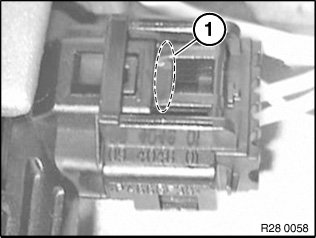

To disconnect the combination sensor connector:
Press lock together in area (1) and simultaneously detach connector.

���:
