135i Convertible (E88) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatically Shifted Manual Transmission/Transaxle
>>
Locations
>>
Overview of Transmission Housing (GS7D36SG)
Overview of Transmission Housing (GS7D36SG)

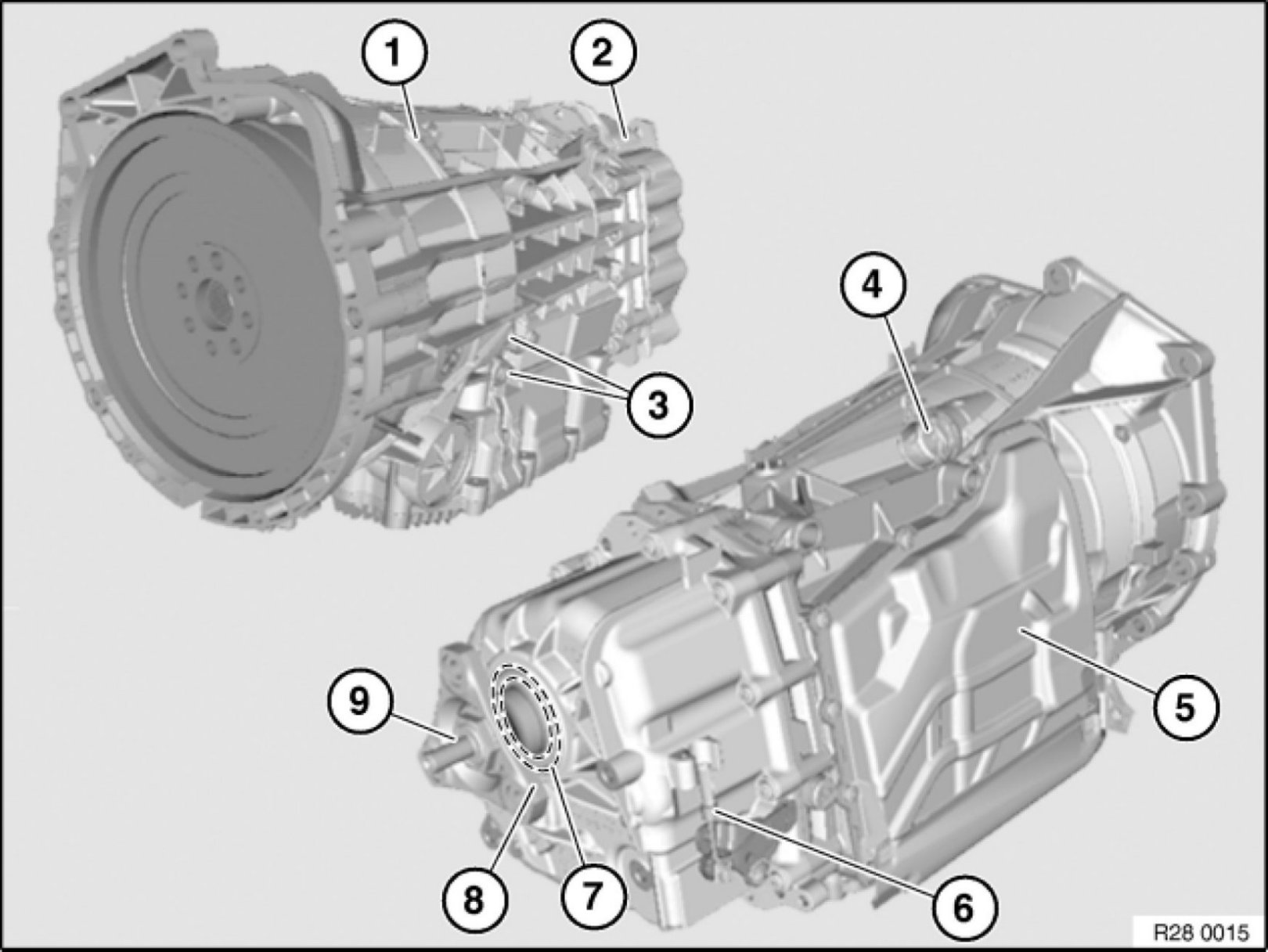

28 00 ... - Overview of transmission housing (GS7D36SG)
