33 55 021 Replacing Both Rubber Mounts For Anti-Roll Bar Mounting

33 55 021 Replacing both rubber mounts for anti-roll bar mounting





Necessary preliminary tasks:
^ Remove rear wheels
^ Remove fuel filler pipe

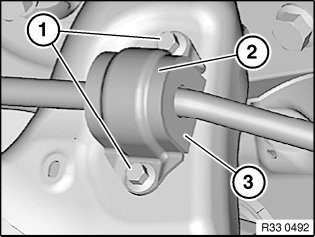

Release screws (1).

Tightening torque 33 55 1AZ.

Remove retaining bracket (2) and rubber mount (3).

Installation:
Keep retaining bracket (2), rubber mount (3) and anti-roll bar clean and free from oil and grease.

Clean rear anti-roll bar on both sides.

Position rubber mount on rear anti-roll bar.

Position retaining bracket on rubber mount.

Push rubber mount with retaining bracket on rear anti-roll bar to installation position.
