72 11 092 Removing and Installing/Replacing Rear Left or Right Seat Belts

72 11 092 - Removing and installing or replacing rear left or right seat belts





Necessary preliminary tasks:
- Remove cover for seat belt 51 46 030 Removing and Installing/Replacing Trim For Belt Guide on Left or Right.
- Remove rear seat back Removing and Installing/Replacing Backrest





Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use





Removing left or right inertia reel unit:

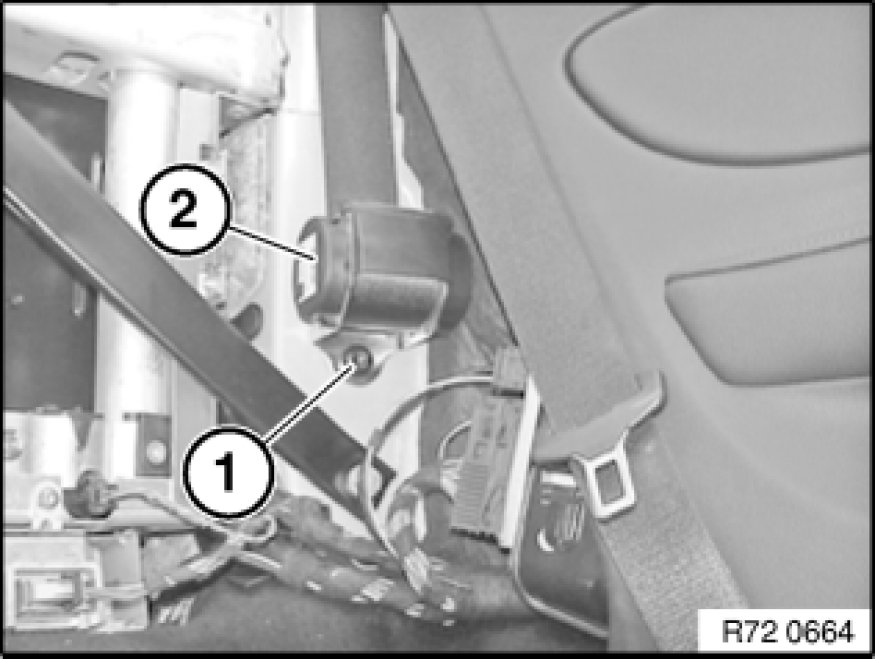

Release screw (1) on inertia reel mechanism (2).
Tightening torques: 72 11 21AZ Specifications.
Remove inertia reel mechanism (2).

Installation:
Pay attention to coding.

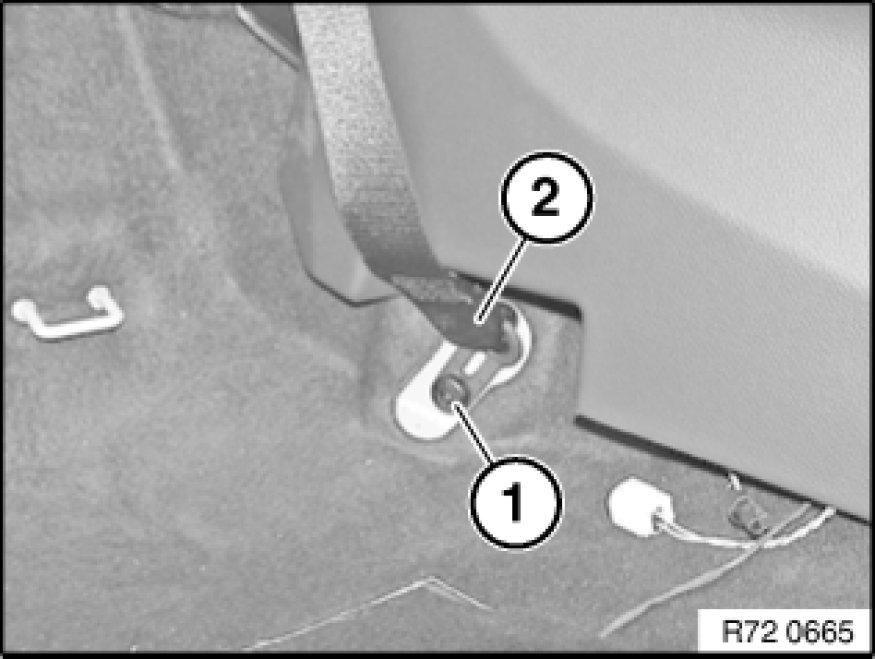

Release screw (1).
Tightening torque: 72 11 24AZ Specifications.

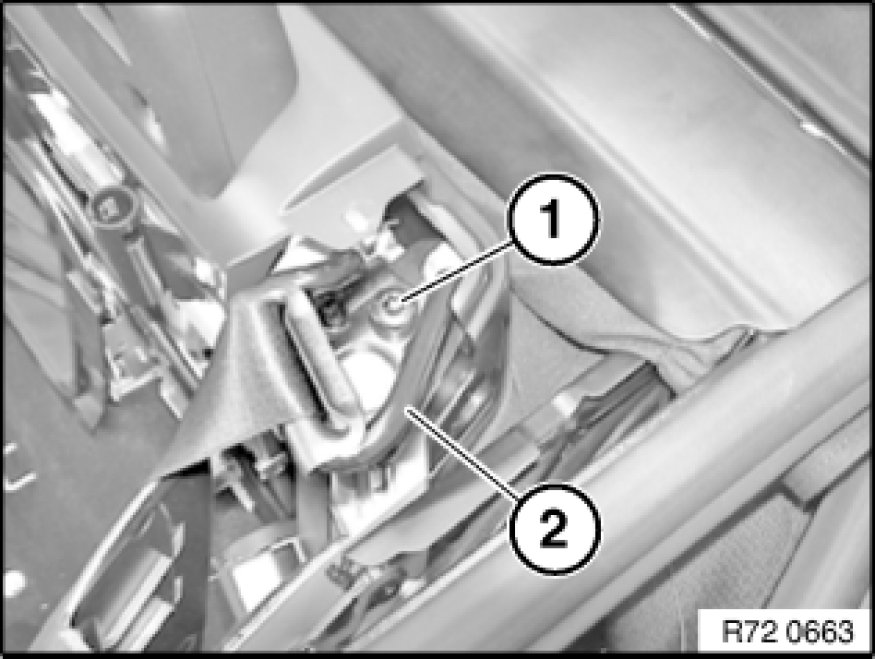

Release screw (1).
Tightening torques: 72 11 22AZ Specifications.
Remove anchor fitting (2).

Installation:
Pin determines the installation position and prevents the anchor fitting from turning.
