Main Relay (Computer/Fuel System): Service and Repair

61 13 ... Main Relay Connector For DME

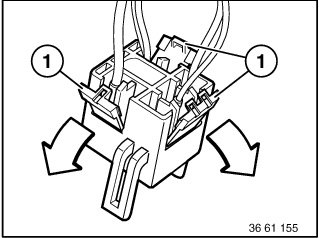

Open locking clip (1) for the corresponding cable.

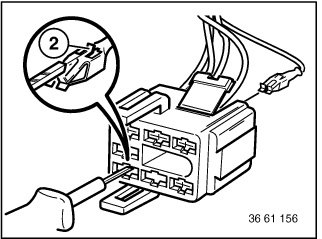

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (2) of appropriate contact and pull out cable with contact.
