12 14 650 Replacing Differential-Pressure Sensor on Intake Plenum

12 14 650 Replacing Differential-pressure Sensor On Intake Plenum (N55)







Necessary preliminary tasks:
- Read out fault memory of DME control unit.
- Switch off ignition.
- Remove rear ignition coil cover.

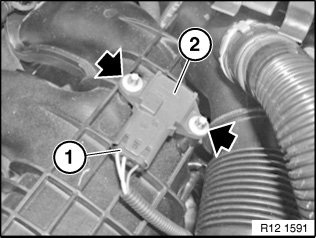

Unlock connector (1) and remove.

Release screws and pull differential-pressure sensor (2) out of intake plenum.

Tightening torque 13 62 2AZ.







Installation note:

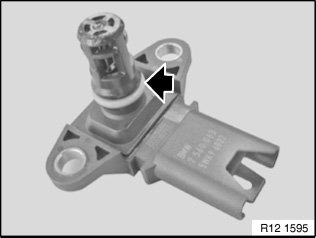

Check sealing ring for damage. Replace damaged sealing ring.

When installing, coat sealing ring with suitable lubricant.







NOTE:
Reassemble the vehicle.
Check stored fault message.
Delete fault memory.
