11 61 368 Removing and Installing/Replacing Rear Left Charge-Air Duct

11 61 368 Removing And Installing/Replacing Rear Left Charge-air Duct (N55)







Necessary preliminary tasks:
- Remove intake silencer housing.

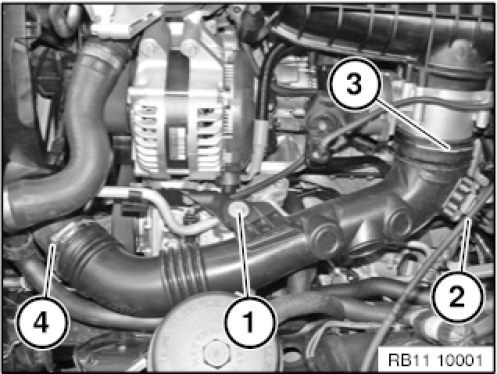

Release screw (1).
Disconnect plug connection (2).
Unlock snap fastener (3).
Unfasten hose clamp (4).

Installation note:
The snap fastener (3) must snap audibly into place.







Assemble engine.
