Evaporative Emissions Hose: Service and Repair

16 14 070 Removing And Installing/replacing Vent Hose With Strainer For Carbon Canister







Necessary preliminary tasks:
- Remove cover for carbon canister Removing and Installing/Replacing Cover for Carbon Canister
- Remove rear right wheel arch cover Service and Repair

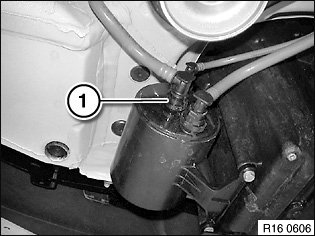

Release quick-release coupling (1) and detach vent hose.

Installation:
Quick-release coupling (1) must audibly snap into place.

Check locking of quick-release coupling by pulling, do not actuate release element in the process.

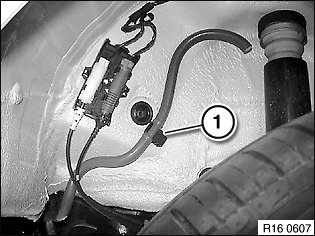

Carefully press vent hose out of clamps (1).
