Spark Plug: Application and ID

The content of this article reflects the changes identified in TSB SI B12 01 05 dated February 2010.

This technical service bulletin (12 01 05) was first published in May of 2005 (that is the meaning of the 05) and has been updated several times.

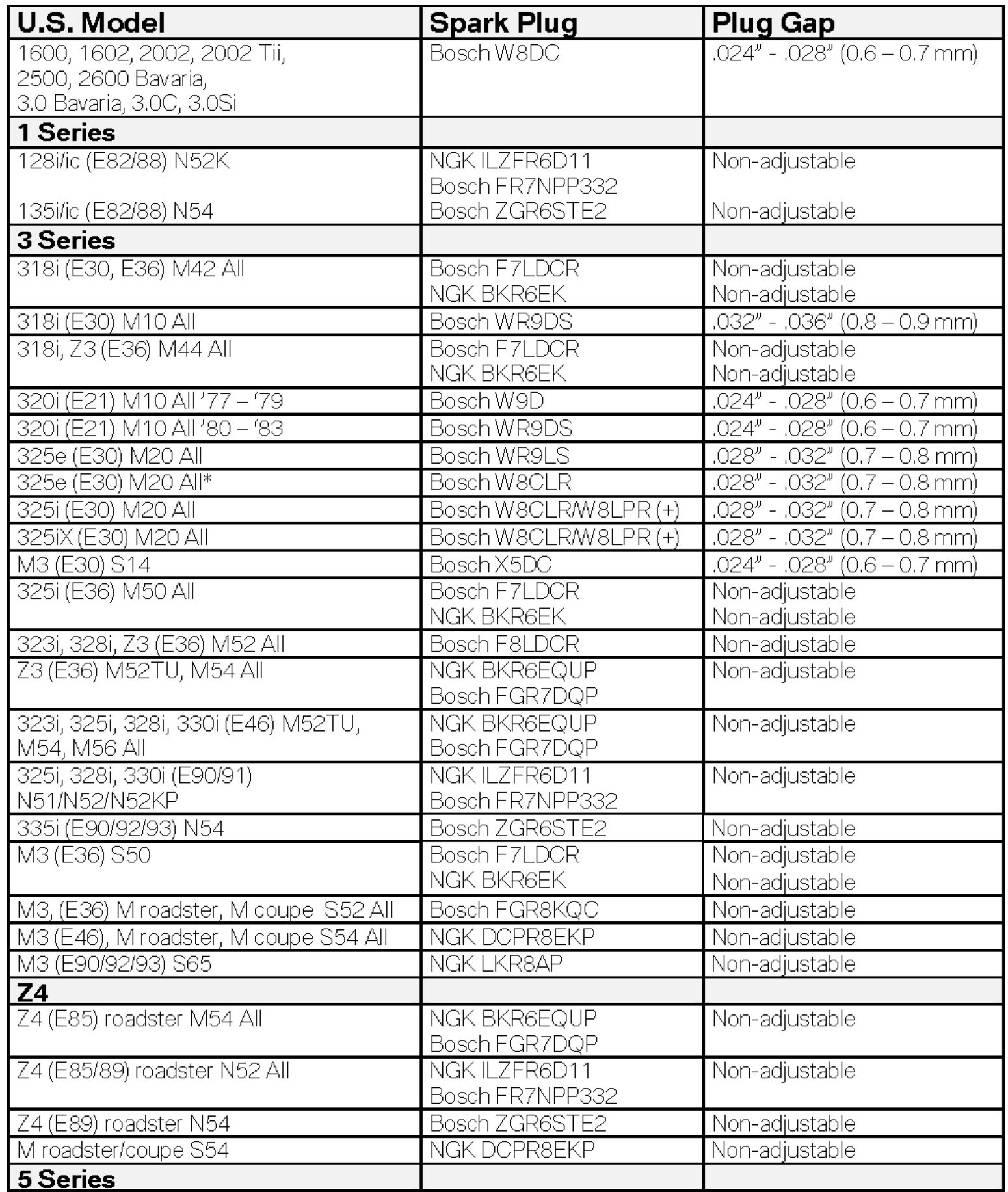

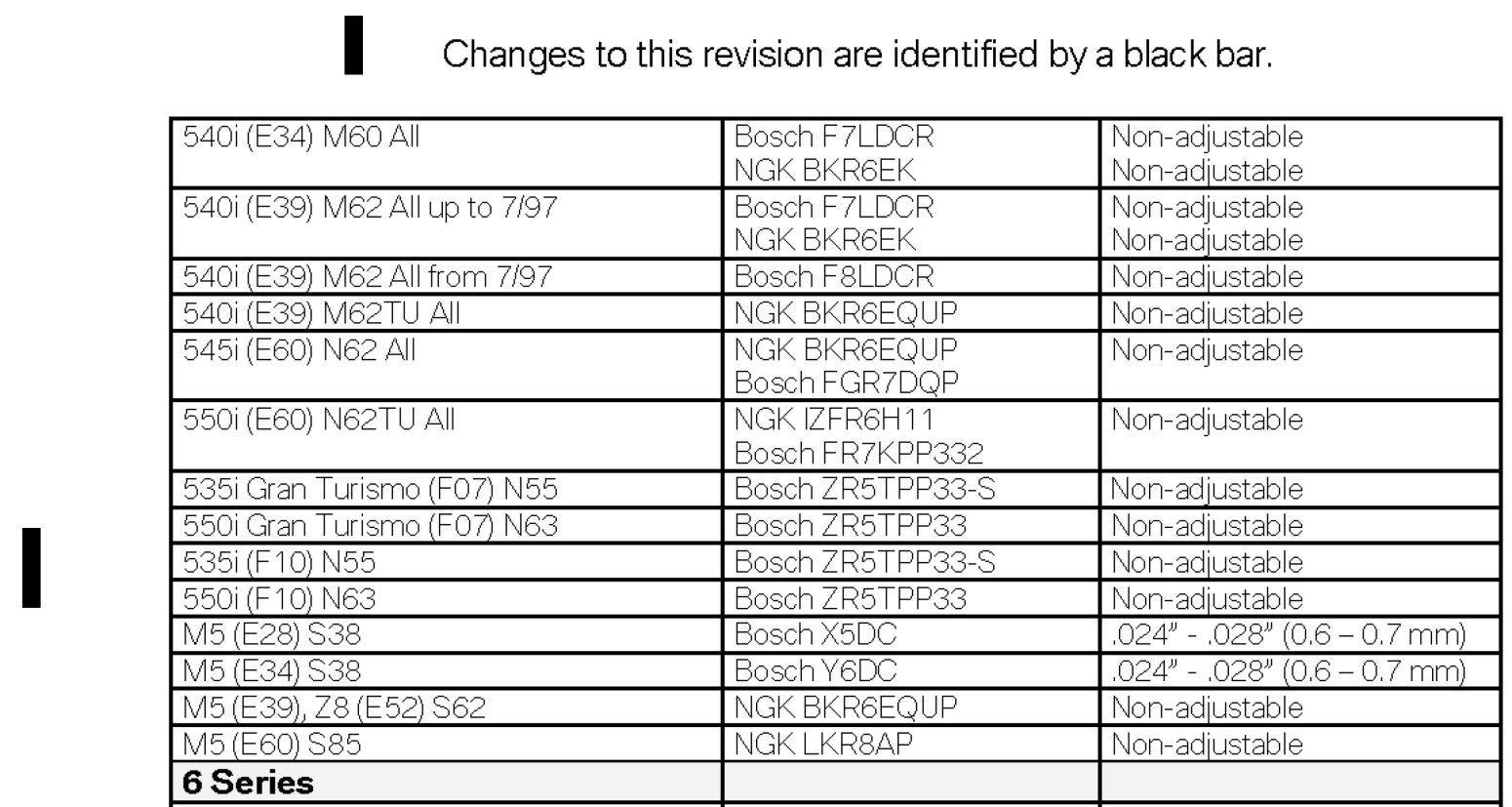

SPARK PLUG APPLICATION CHART

Although the 1 Seies is not shown in this TSB equipped wiht the N55 engine, The N55 spark plug application is shown for:
535i Gran Turismo (F07)
535i (F10) and
X5 (E70)

Application And ID:

Application And ID:
