Evaporator Temperature Sensor / Switch: Service and Repair

64 11 943 - Replacing evaporator temperature sensor





Necessary preliminary tasks:
- Remove trim for instrument panel, bottom left

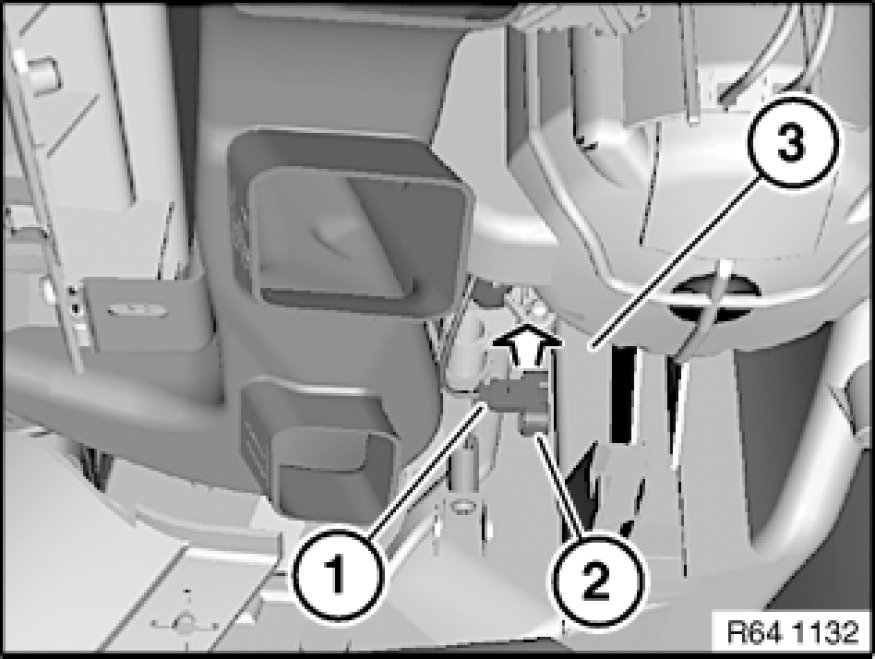

Disconnect plug connection (1).
Pull evaporator temperature sensor (2) in direction of arrow out of heater/air conditioner (3) and remove.

Installation:
Ensure evaporator temperature sensor (2) is correctly seated.
