13 71 170 Removing Air Duct

13 71 170 Removing Air Duct (N55)







Necessary preliminary work:
- Remove clean air pipe.
- Remove coolant pump.

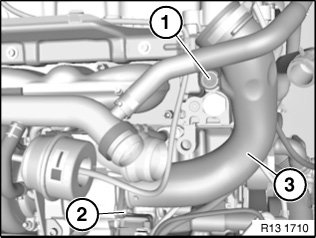

Release screw (1).
Tightening torque 13 71 8AZ.

Pull off air duct (3) from exhaust turbocharger (2), feed out and remove.







Assemble engine.
