12 .. ... Removing and Installing/Replacing Rear Ignition Coil Cover

12 .. ... Removing And Installing/replacing Rear Ignition Coil Cover (N55)







Necessary preliminary tasks:
- Remove ignition coil cover.
- Remove microfilter housing lower section.
- Remove right tension strut.







Release clamps along line (1).

Release clamp (2).

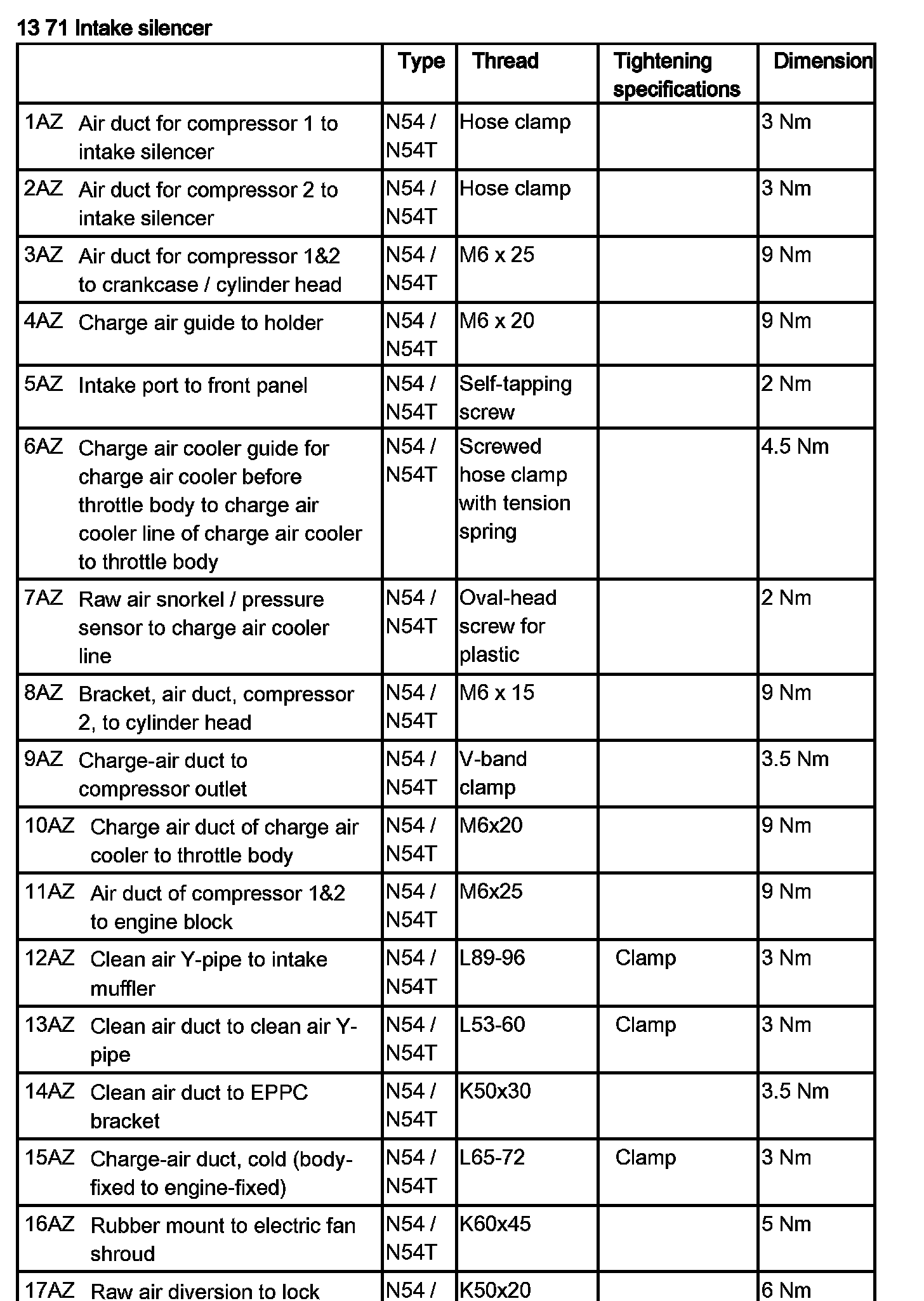

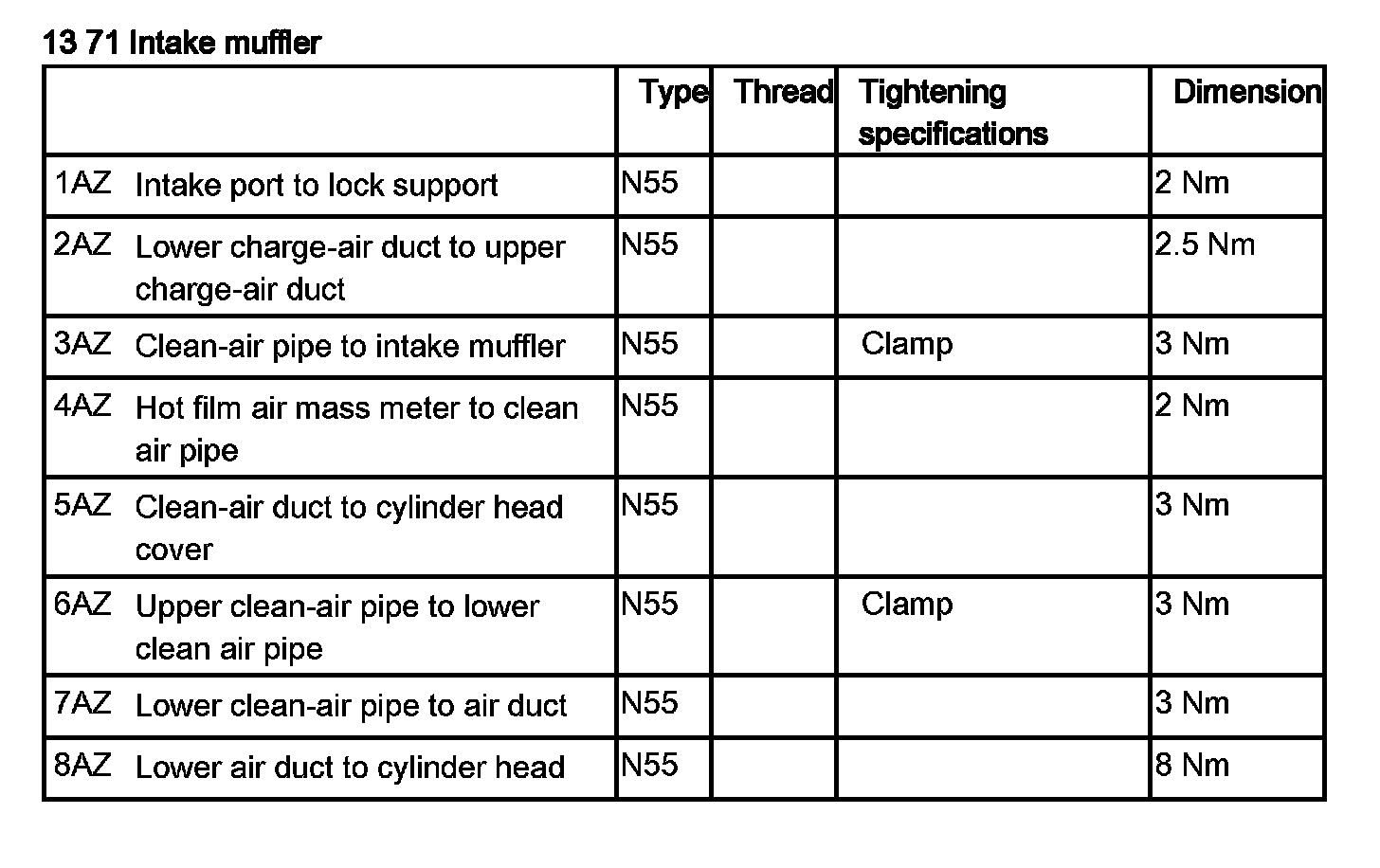

Tightening torque 13 71 3AZ.

Unlock connector (3) on hot film air mass meter and disconnect.

Release upper section of intake filter housing (4) at rear from clamps and remove in an upward direction.

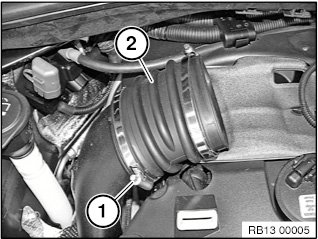

Release clamp (1).

Tightening torque

Detach hose (2) and remove.

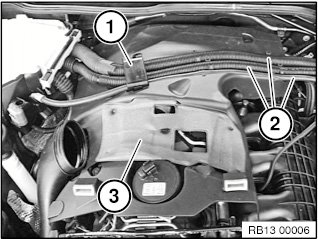

Unlock and remove retainer (1).

Release wiring harnesses (2) from ignition coil cover (3) and lay to one side.

Detach ignition coil cover (3) in upward direction from rubber mounts, feed out and remove.







Assemble engine.
