Replacing Left Engine Mount

22 11 011 - Replacing left engine mount (N54)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine In Installation Position.
- Remove underbody protection.
- Remove left V-strut (E93 only)





Note:
E90/E91/E92 only

Remove stiffening strut(1).

Release screws (2) and remove engine mount.
Tightening torque 22 11 1AZ Specifications.





Installation:

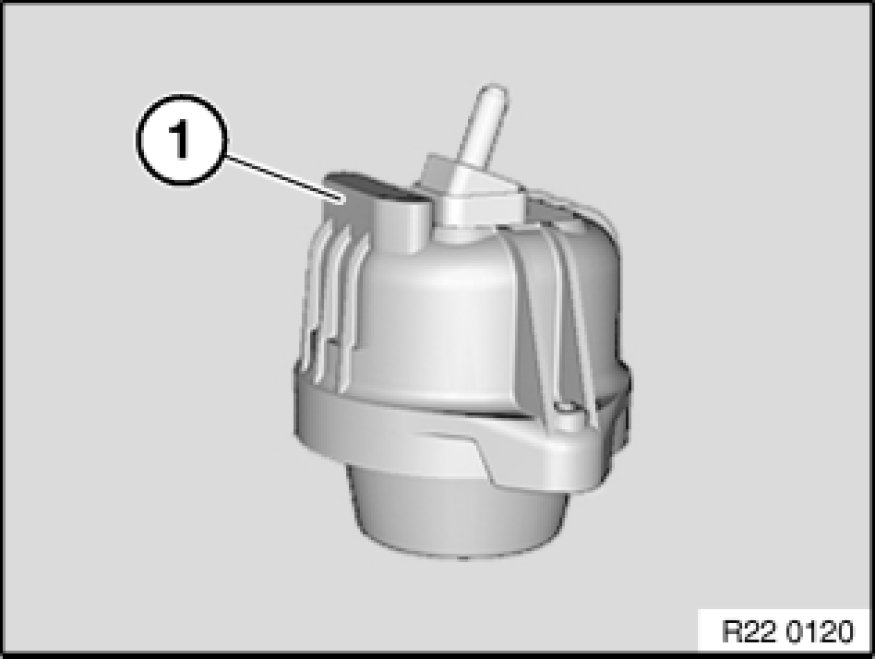

Rubber section (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
- Even component number
Left engine mount
- Odd component number
