Harmonic Balancer - Crankshaft Pulley: Service and Repair

11 23 010 Removing And Installing/Replacing Vibration Damper (N55)

Special tools required:







Necessary preliminary tasks:
- Remove underbody protection
- Remove drive belt.







NOTE:

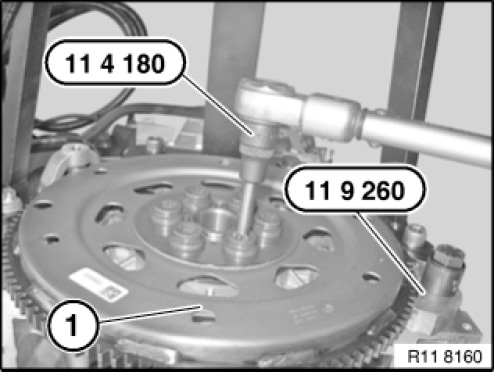

Engine removed:
Block crankshaft with special tool 11 9 260.

NOTE: Picture of flywheel removal.







NOTE:

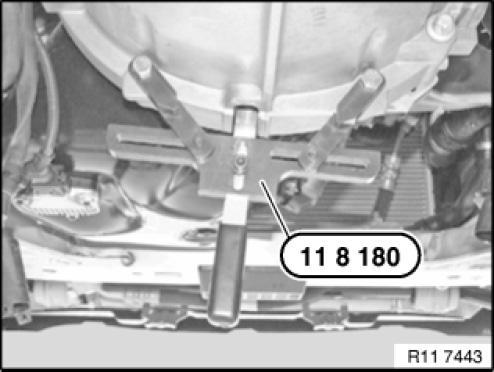

Engine installed with manual transmission:
Block crankshaft with special tool 11 8180 .

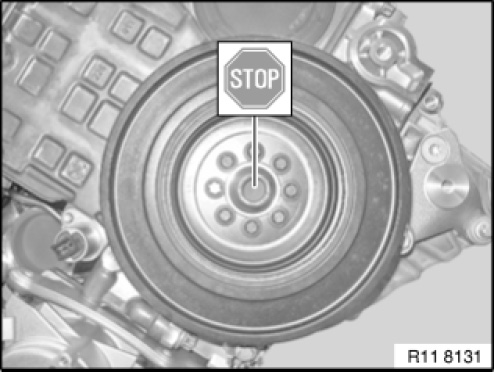

IMPORTANT:
Do not release central bolt.
If the central bolt is accidentally loosened, the timing must be readjusted.

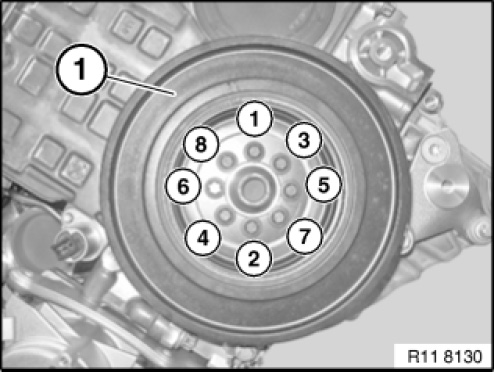

Release screws (1 to 8).
Remove vibration damper (1).

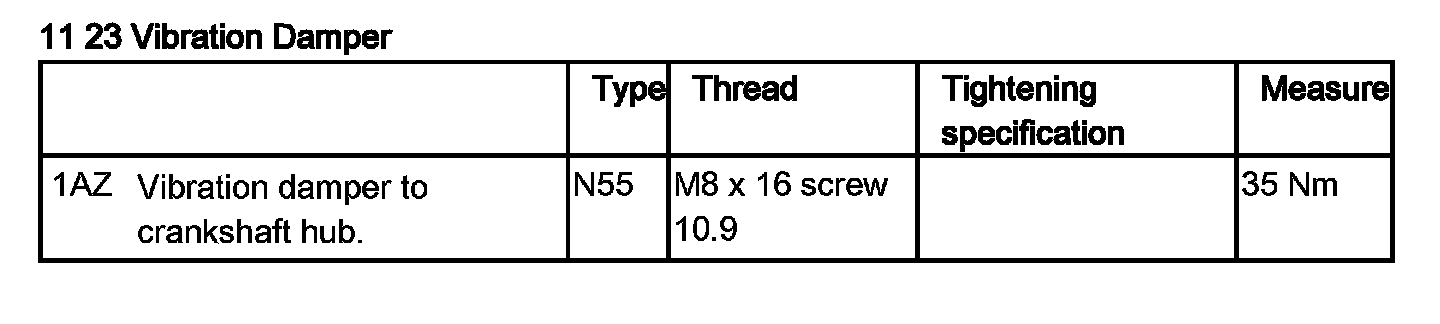

Screws on vibration damper
Tightening torque 11 23 1AZ.







Assemble engine.
