Passenger's Seat Heating
Passenger's Seat Heating
Passenger's Seat Heating

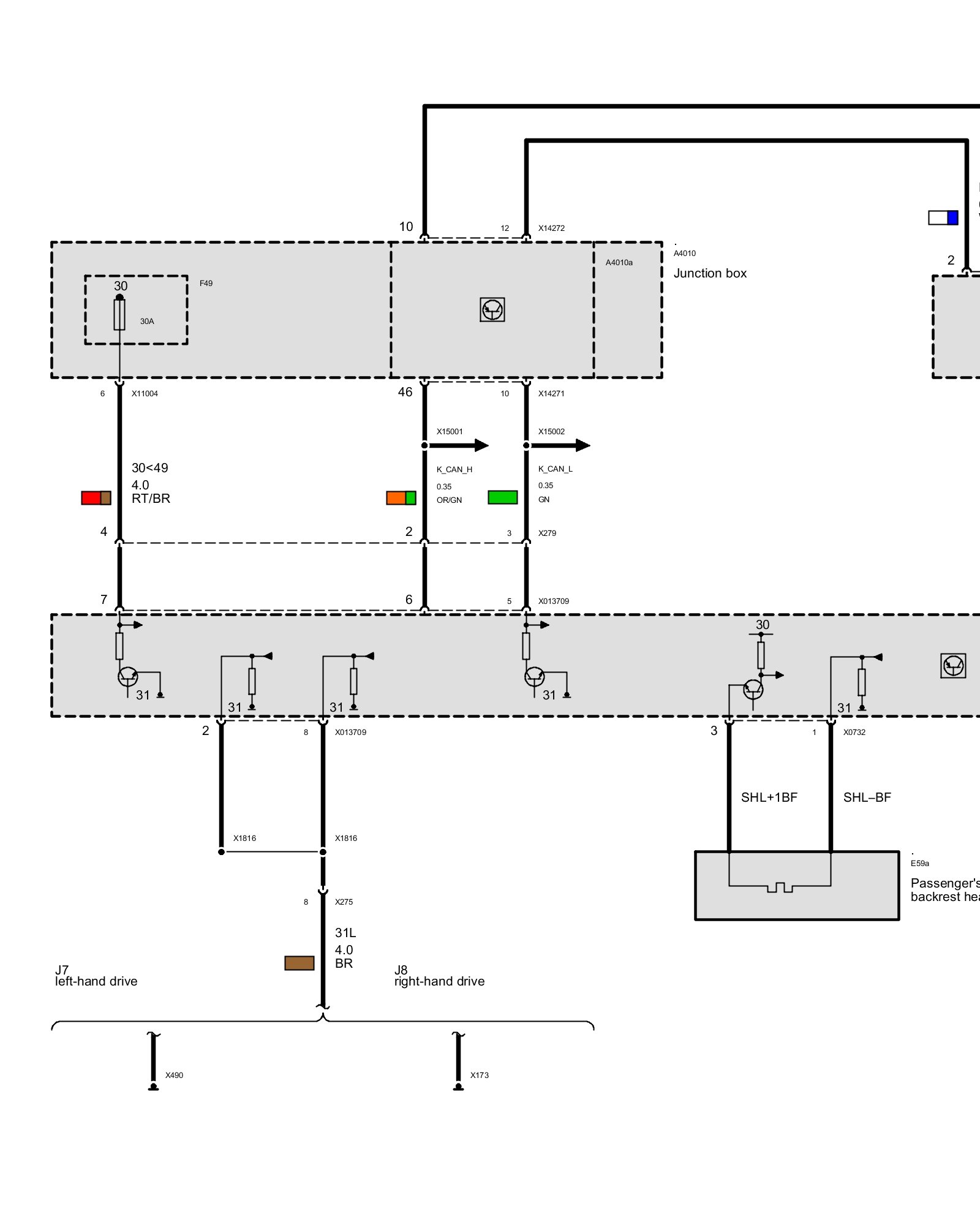

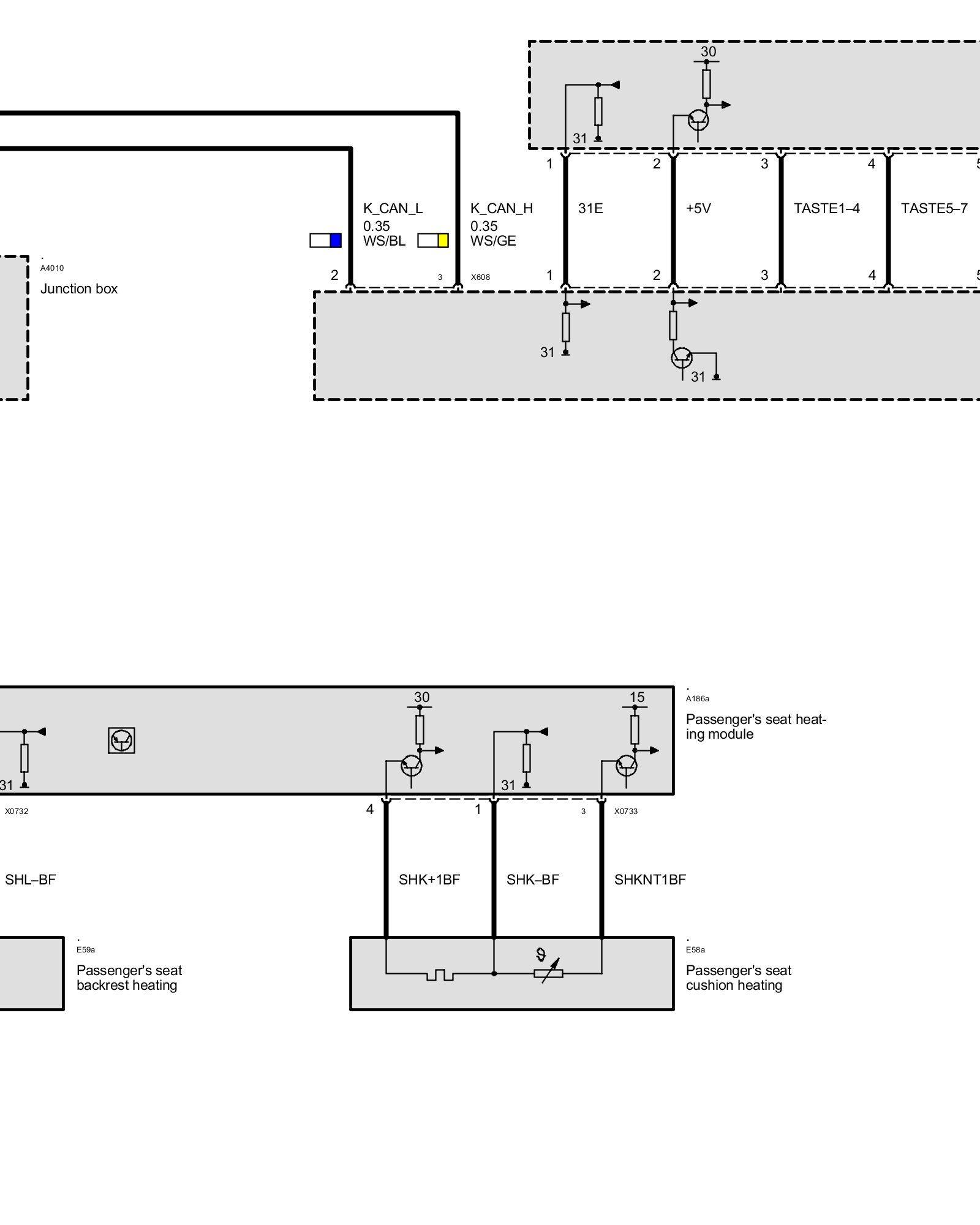

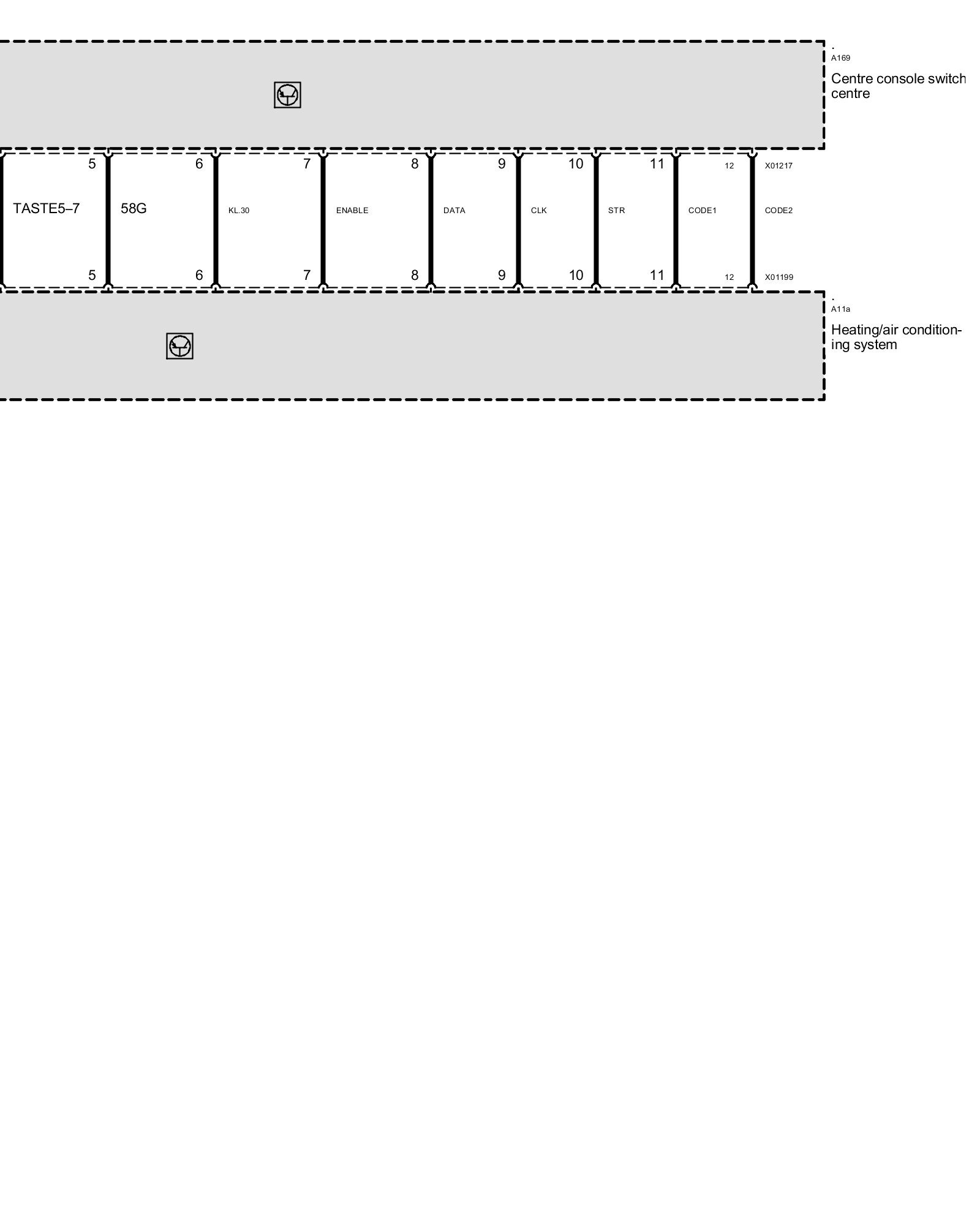

SMBF Seat Module, Passenger

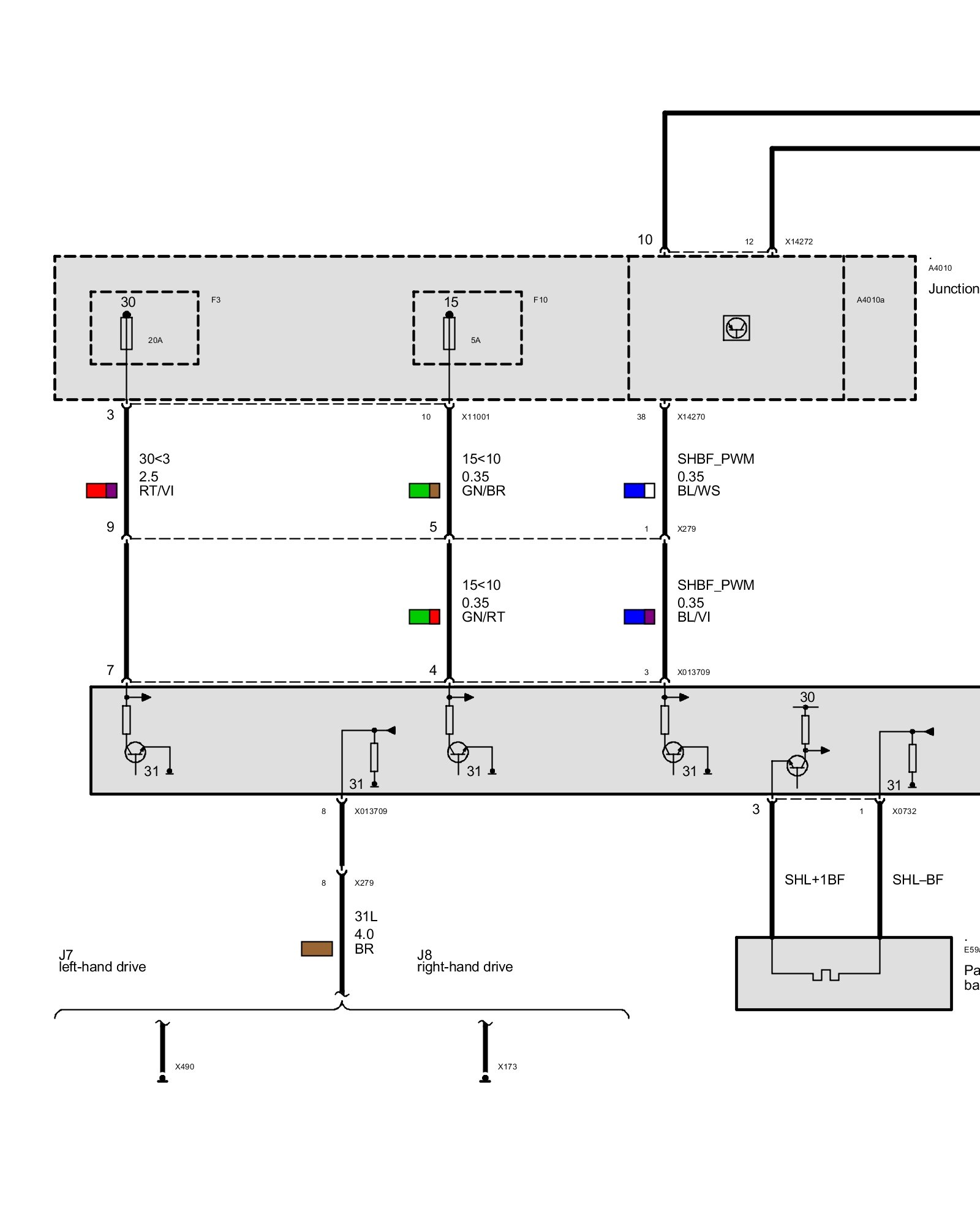

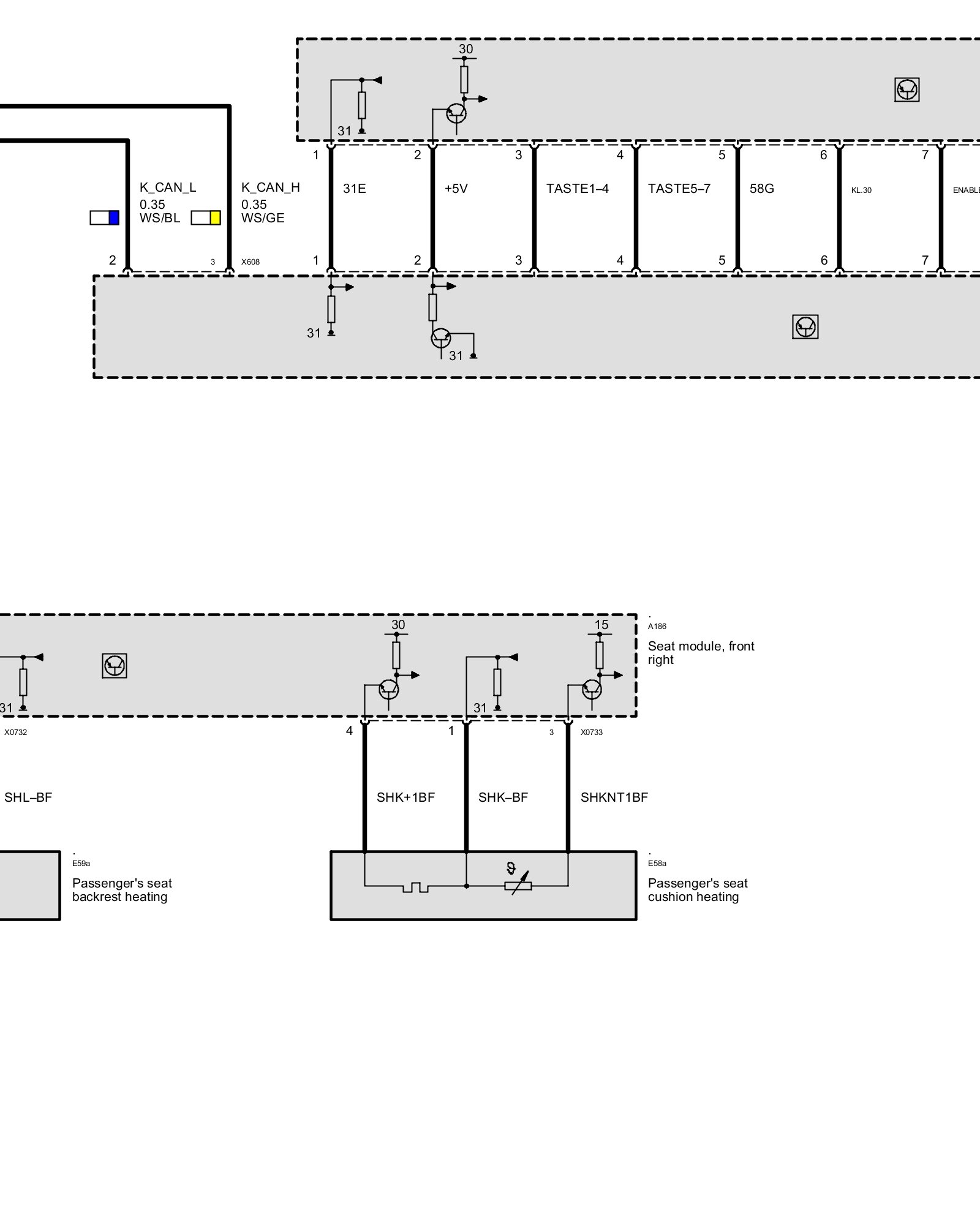

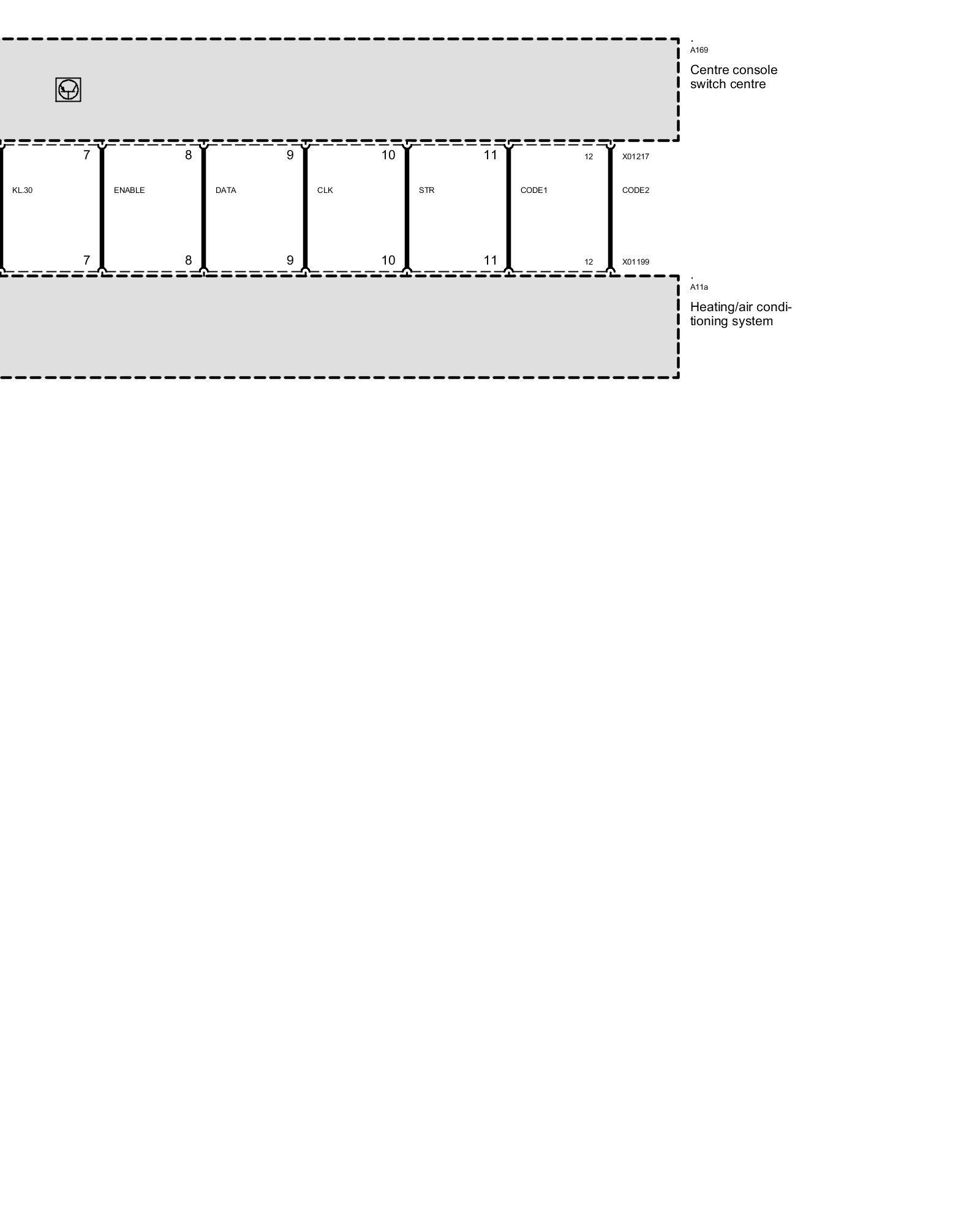

Without SMBF Seat Module, Passenger As Of 09/07
