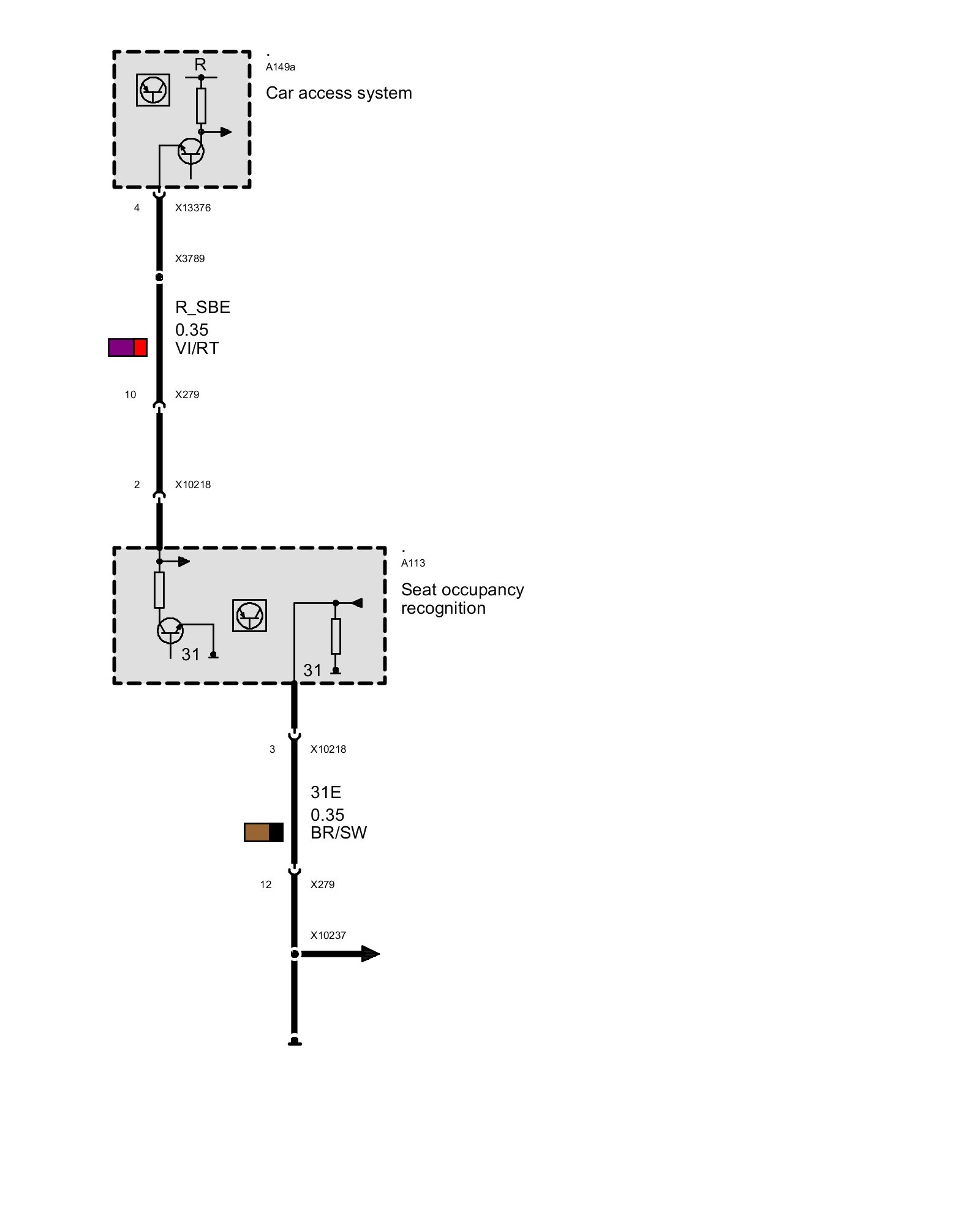

Power Supply, Seat Occupancy Detection
Power Supply, Seat Occupancy Detection
Power Supply, Seat Occupancy Detection
