Home >> BMW >> 2011 >> 135i Convertible (E88) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Convertible Top Control Module >> Automatic Convertible Top >> Drive

Drive

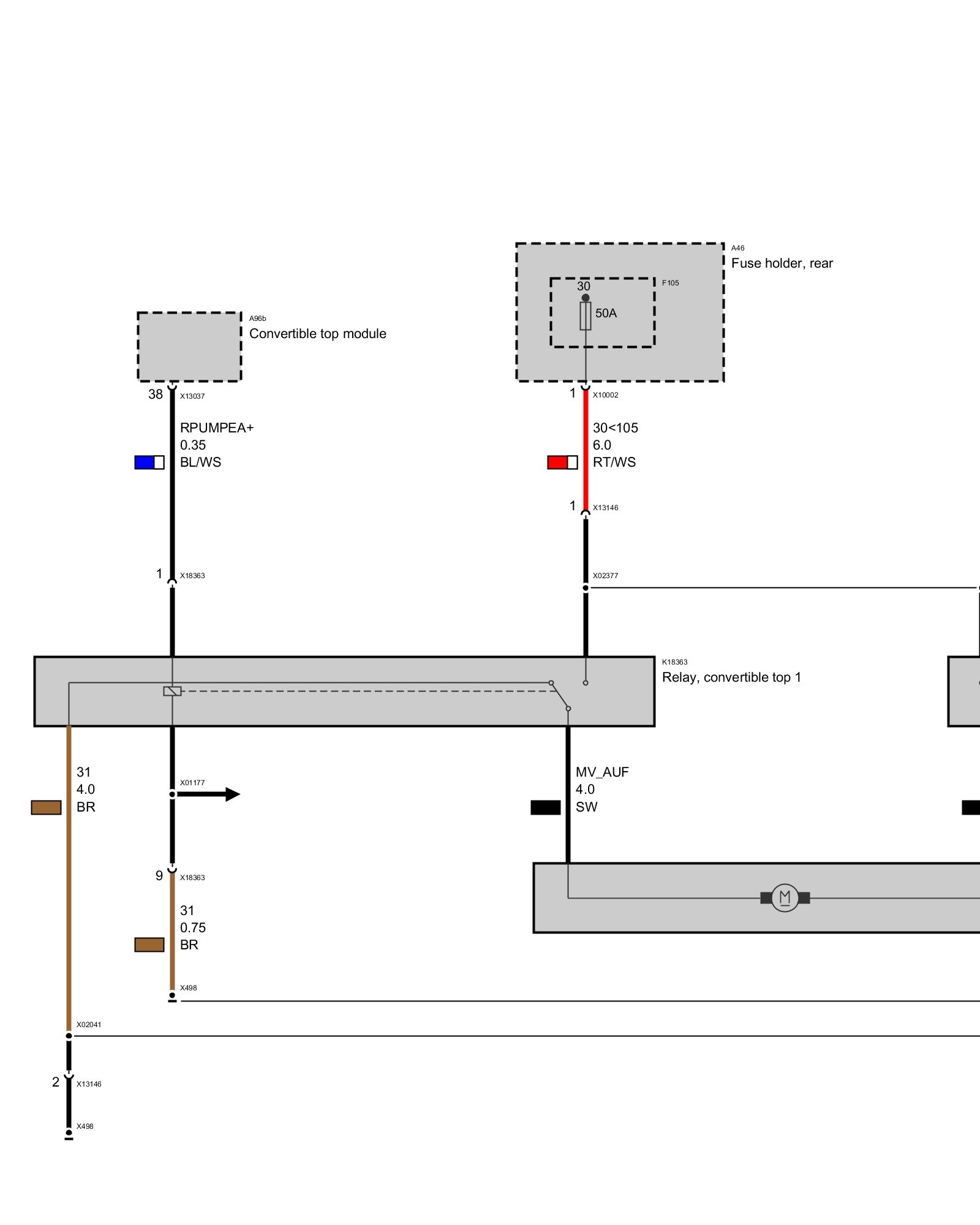

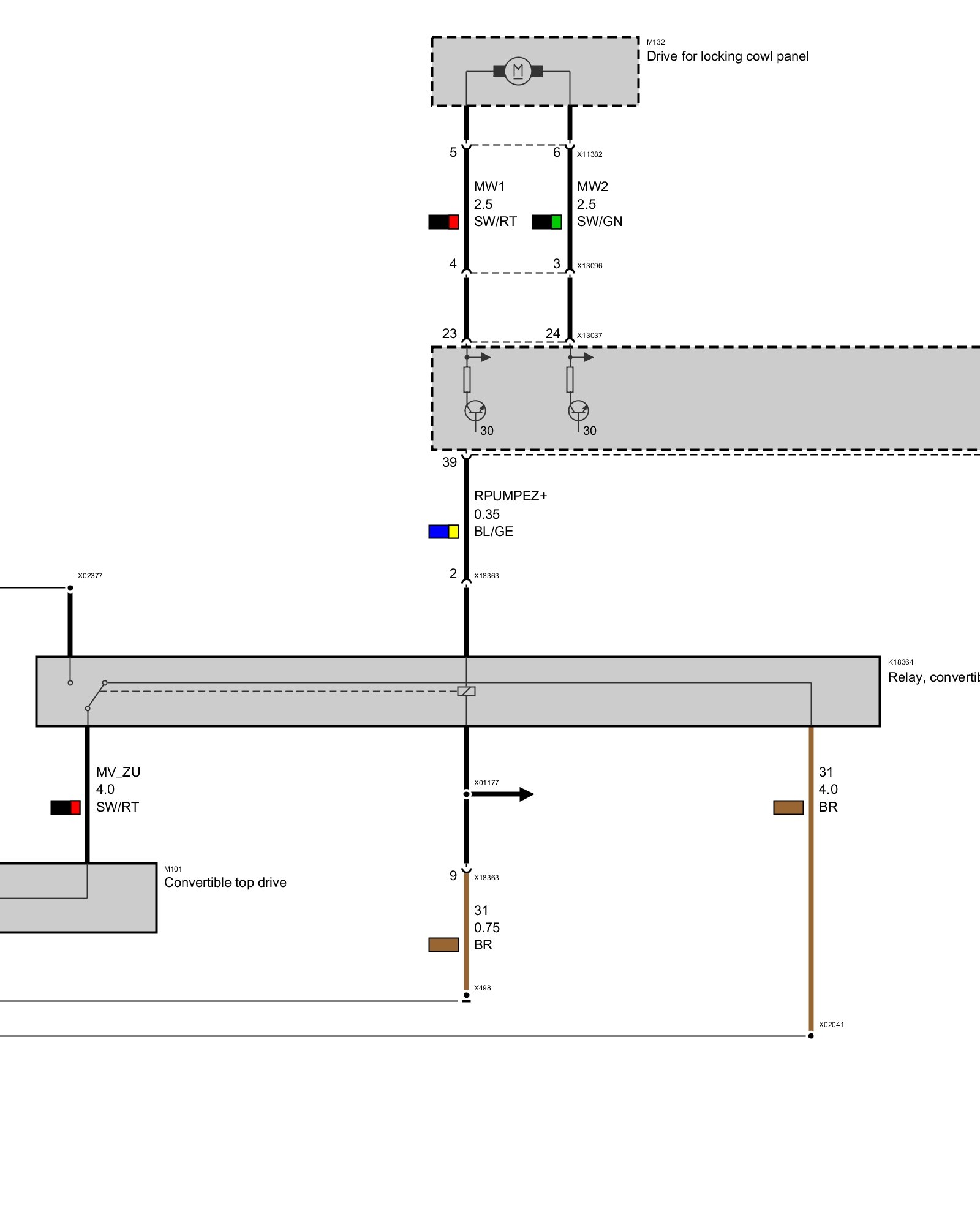

Drives For Automatic Convertible Top
