135i Convertible (E88) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X18013
>>
A81a Park Distance Control (PDC) As of 09/07
A81a Park Distance Control (PDC) As of 09/07
X18013

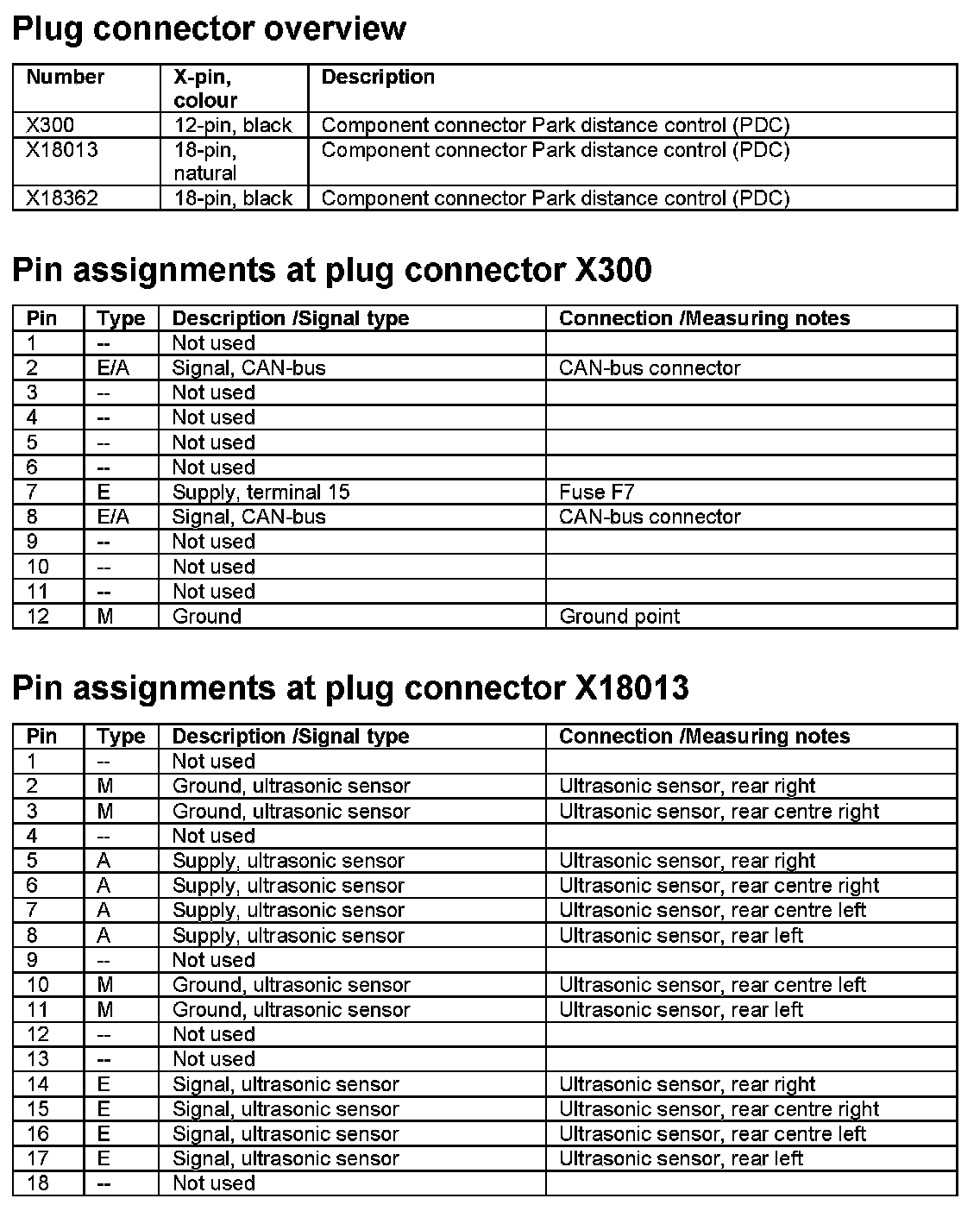

A81a Park Distance Control (PDC) Pin Assignments
