135i Convertible (E88) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X13813
>>
Stereo System
Stereo System

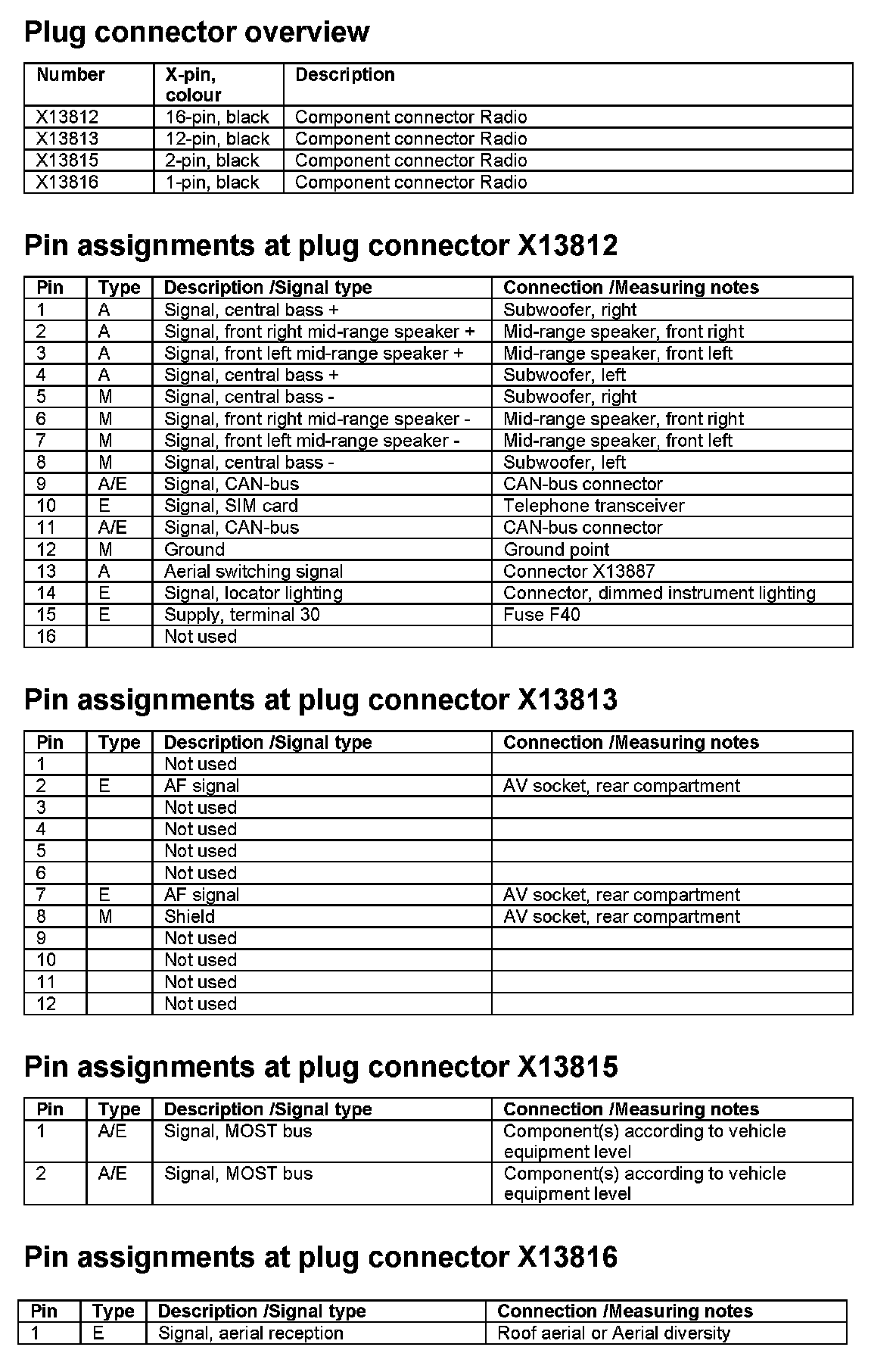

Connector View X13813
N9 Radio Pin Assignments
