Home >> BMW >> 2011 >> 135i Convertible (E88) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X0 >> X01188

X01188

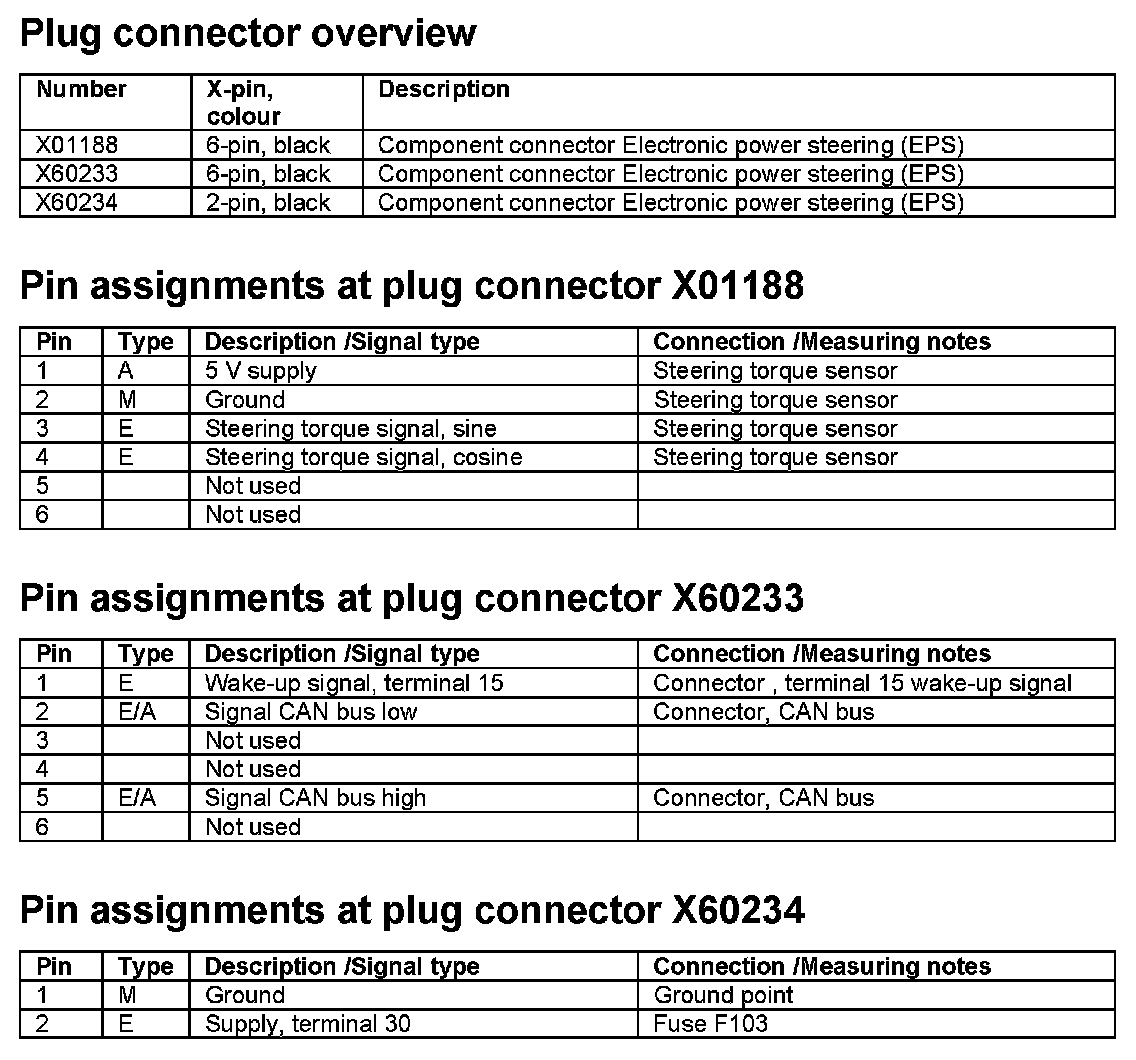

A60233 Electronic Power Steering (EPS) Pin Assignments
