Removing and Installing/Replacing Rear Left or Right Ram-Air Lip




51 47 ... - Removing and installing/replacing rear left or right ram-air lip

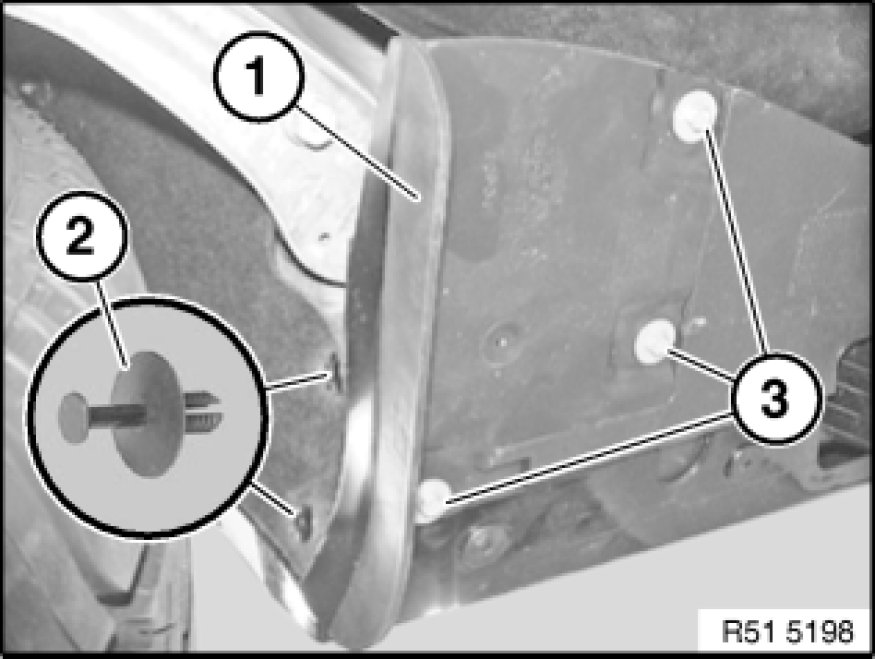

Release expander rivets (2).
Release screws (3) and remove lip (1).
