Removing and Installing/Replacing Left or Right Underbody Panelling

51 47 ... - Removing and installing/replacing left or right underbody panelling





Necessary preliminary tasks:
Only if removing left underbody panelling:
- Remove rear underbody protection Removing and Installing/Replacing Rear Underbody Protection

Note:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
The operation is described on the left side; proceed in the same way for the right side.

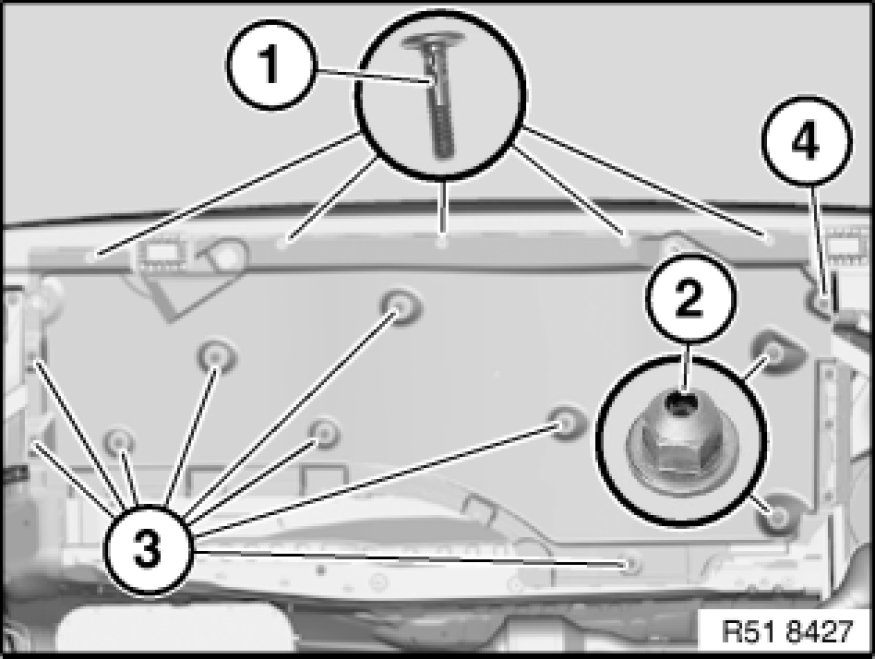

Release clips (1).
Release plastic nuts (2).
Unfasten screws (3 and 4).
Feed out underbody panelling and remove towards bottom.

Installation:
If necessary, replace faulty clips (1) and plastic nuts (2).

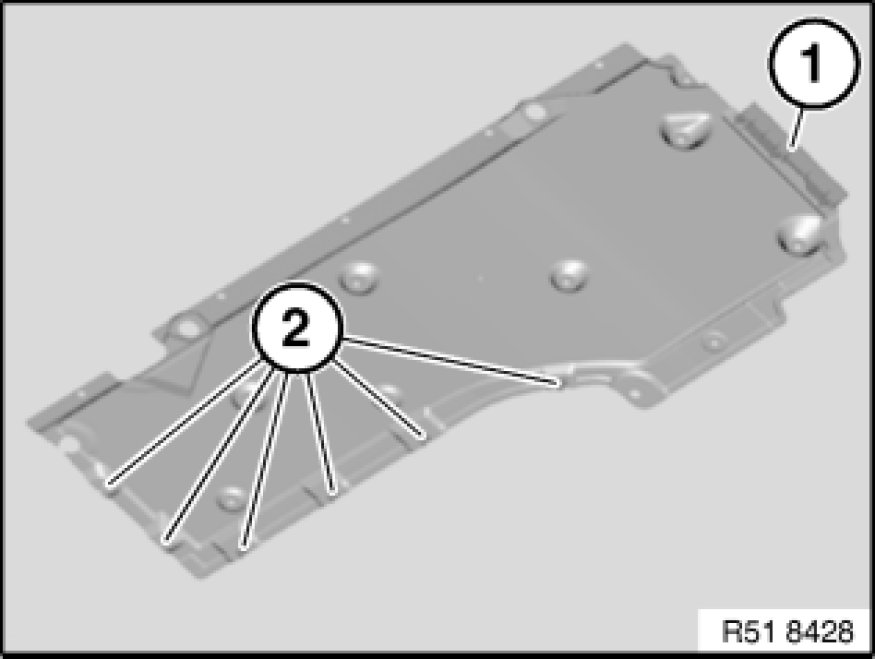

Replacement:
- Modify lip Removing and Installing/Replacing Lip on Underbody Panelling on Left or Right (1)

- Modify sheet nuts (2)

Installation:
If necessary, replace faulty metal nuts (2).
