Removing and Installing Filler Element




52 24 465 - Removing and installing filler element

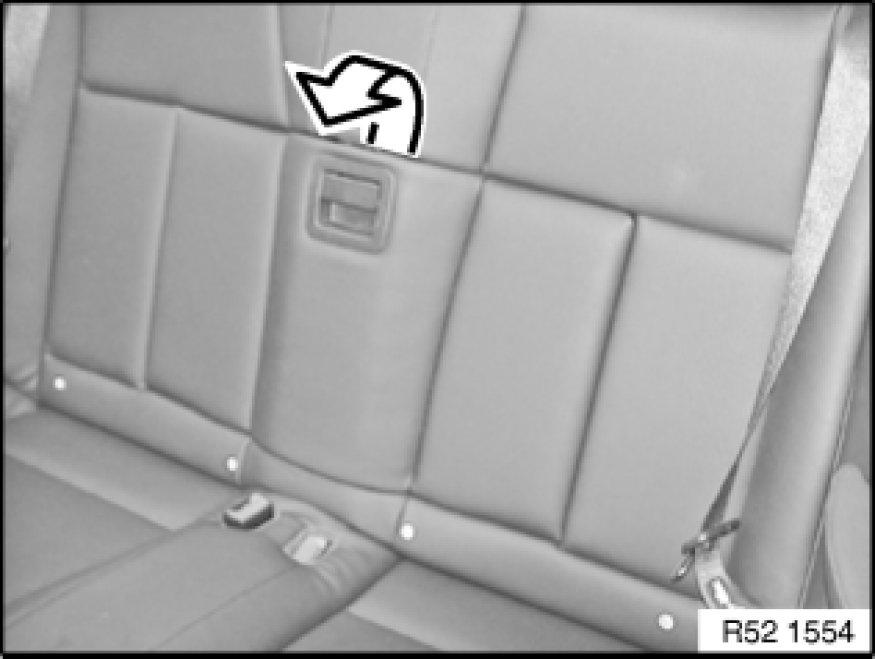

Unlock filler element and tilt forwards out of rear seat backrest.

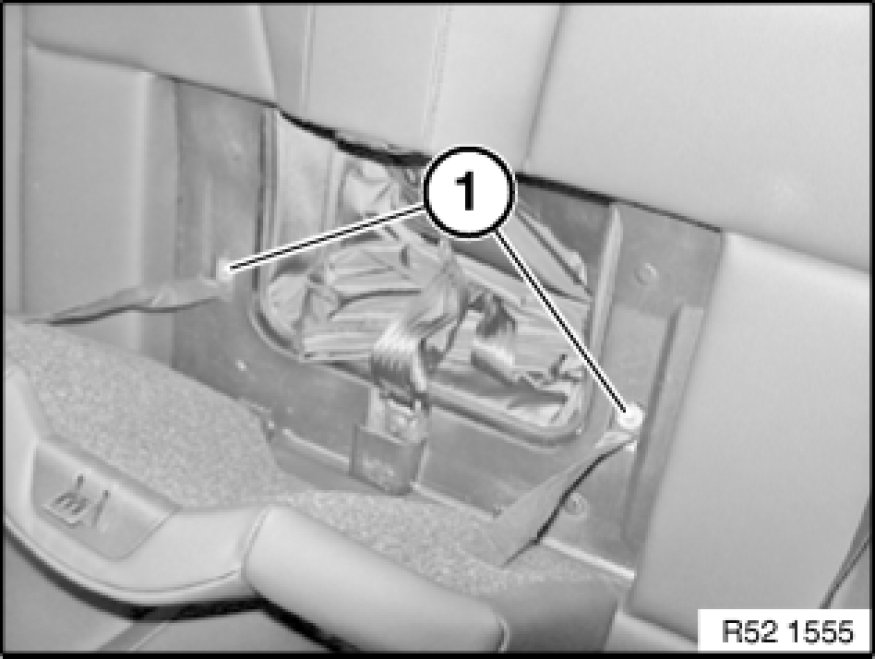

Release screws (1).
Remove filler element.

Installation:
Make sure filler element is correctly seated on plug-in tongue.
