Removing and Installing/Replacing Thigh Support Cover on Front Seat (Sport/Manual)

52 15 403 - Removing and installing/replacing thigh support cover on front seat (sport/manual)

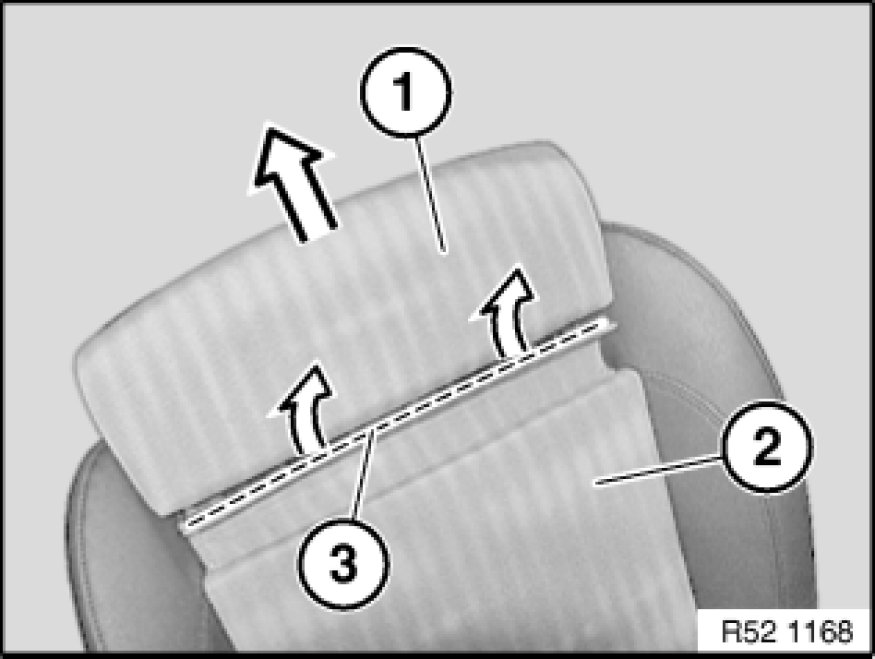

Release thigh support (1) and move forward.
Lever welt of seat cover (2) out of thigh support.

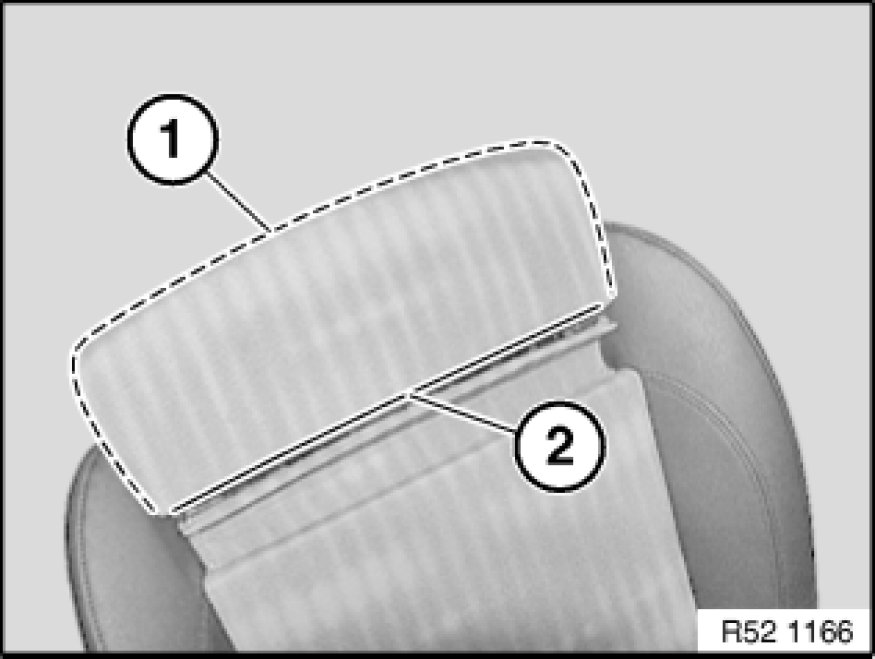

Lever out cover welt in marked area (1).
Disengage trim thread in marked area (2) from thigh support.
Remove cover with padding.

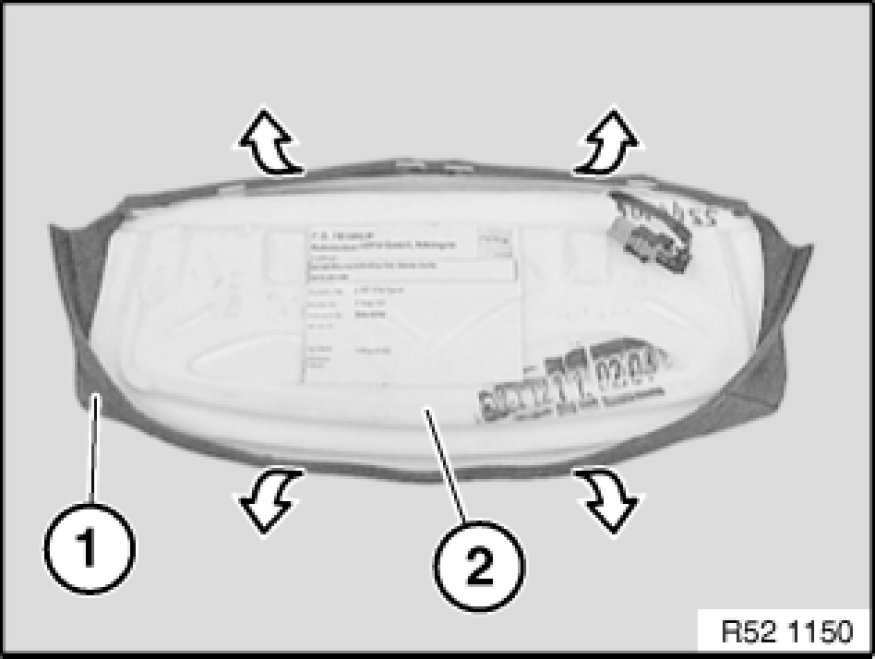

Pull cover (1) off padding (2).
