67 31 531 Removing and Installing/Replacing Drive Unit For Backrest Angle Adjustment

67 31 531 Removing And Installing/replacing Drive Unit For Backrest Angle Adjustment







Necessary preliminary tasks:
- Remove outer cover

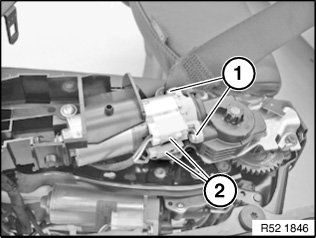

Unlock plug connections (2) and disconnect.

Release screws (1).

Remove drive for backrest angle adjustment from flange.

Installation:
Make sure drive shaft is correctly seated in gearbox.
