67 31 511 Removing and Installing/Replacing Drive Unit For Seat Tilt Adjustment

67 31 511 Removing And Installing/replacing Drive Unit For Seat Tilt Adjustment







Necessary preliminary tasks:
- Remove front seat

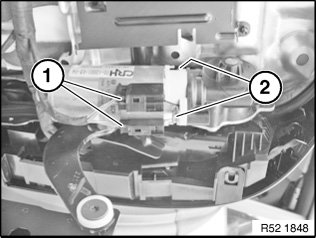

Unlock plug connections (1) and disconnect.

Unfasten screws (2).

Installation:
Make sure drive shaft is correctly seated in gearbox.
