54 34 ... Special Tool Lifting Gear

54 34 ... - Special tool: lifting gear E88





Special tools required:
- 54 3 240 54 3 240 Lifting Harness
- 54 3 241 54 3 240 Lifting Harness
- 54 3 242 54 3 240 Lifting Harness
- 54 3 243 54 3 240 Lifting Harness
- 54 3 250 54 3 250 Adapter with Chain and Hook
- 54 3 260 54 3 260 Adapter with Counterholder
- 54 3 270 54 3 270 Shaped Section for Counterholder (2 x)





For convertible top removal the universal lifting gear must be combined with individual tools specifically suitable for the E88.

Note:
Observe operating instructions 54 34 ... Operating Instructions For Universal Lifting Gear for universal lifting gear without fail.

Lifting gear:





The lifting gear 54 3 240 54 3 240 Lifting Harness comprises the following individual parts:

- 54 3 241 54 3 240 Lifting Harness Longitudinal tube with lifting eye and screws
- 54 3 242 54 3 240 Lifting Harness Cross-beam
- 54 3 243 54 3 240 Lifting Harness Extension arm, left and right
in conjunction with:
- 54 3 250 54 3 250 Adapter with Chain and Hook Adapter with chain and hook, left and right
- 54 3 260 54 3 260 Adapter with Counterholder Adapter with counterholder, left and right
- 54 3 270 54 3 270 Shaped Section for Counterholder (2 x) Shaped piece for counterholder, left and right

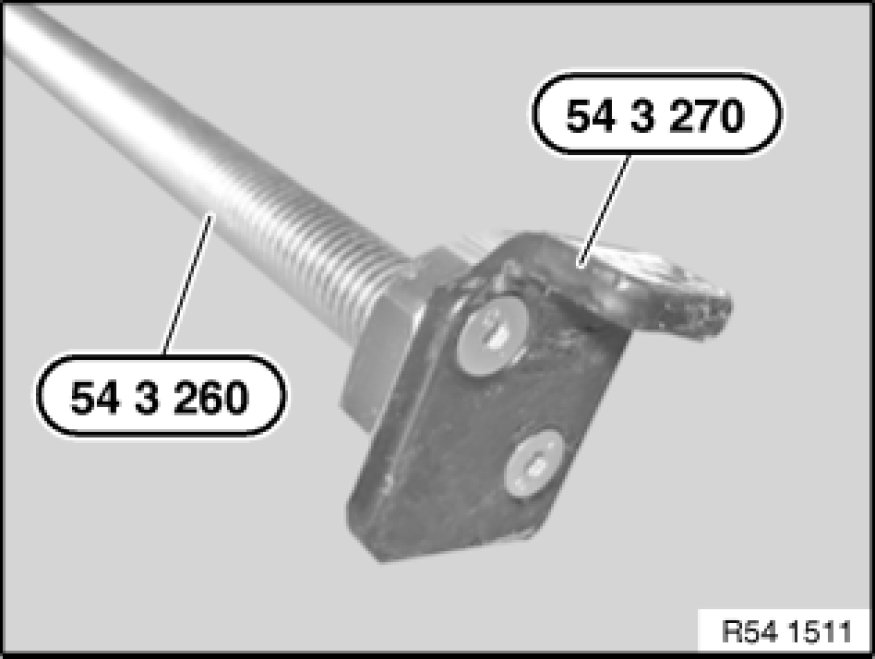

Screw down shaped piece 54 3 270 54 3 270 Shaped Section for Counterholder (2 x) on adapter with counterholder 54 3 260 54 3 260 Adapter with Counterholder, left and right.





Important!

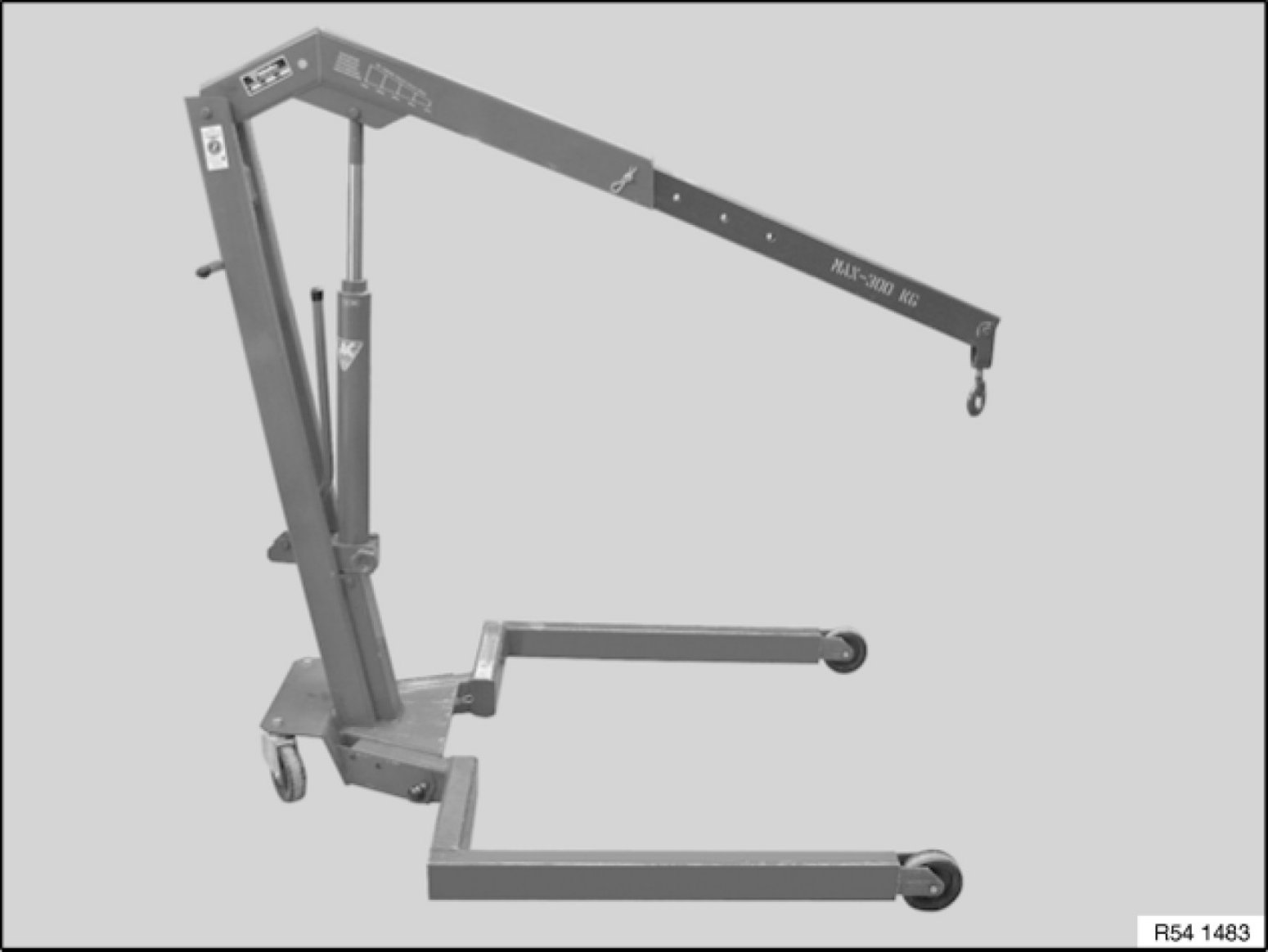

Use lifting gear and assembly carrier only in conjunction with BMW WJN.10 workshop crane (special lifting arm with 1690 mm arm length) or a crane with comparable specifications.





Adjustments of lifting tool especially for E88:

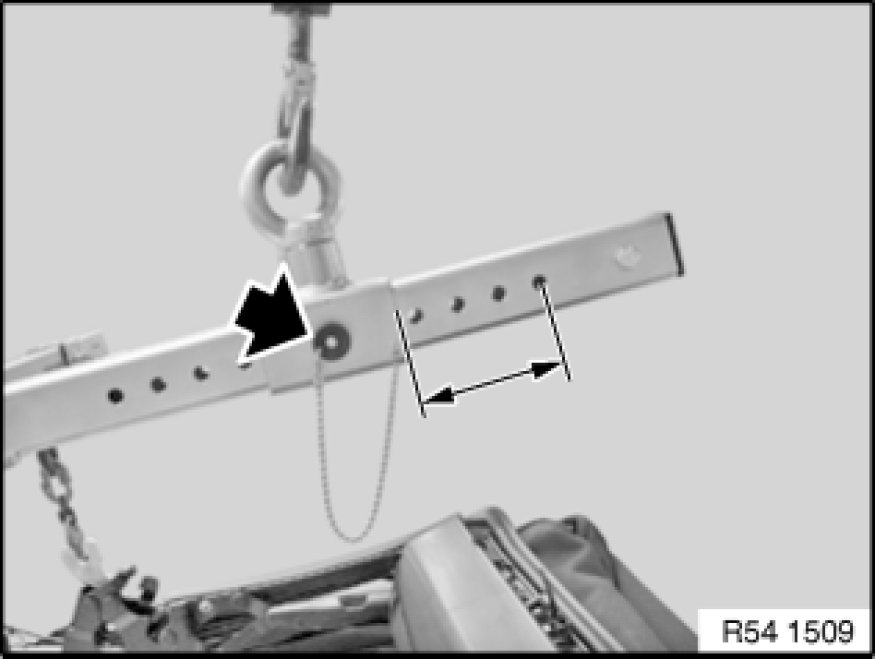

Adjust lifting eye measured two holes from rear on longitudinal tube.

Secure adjustment with ball locking pin.

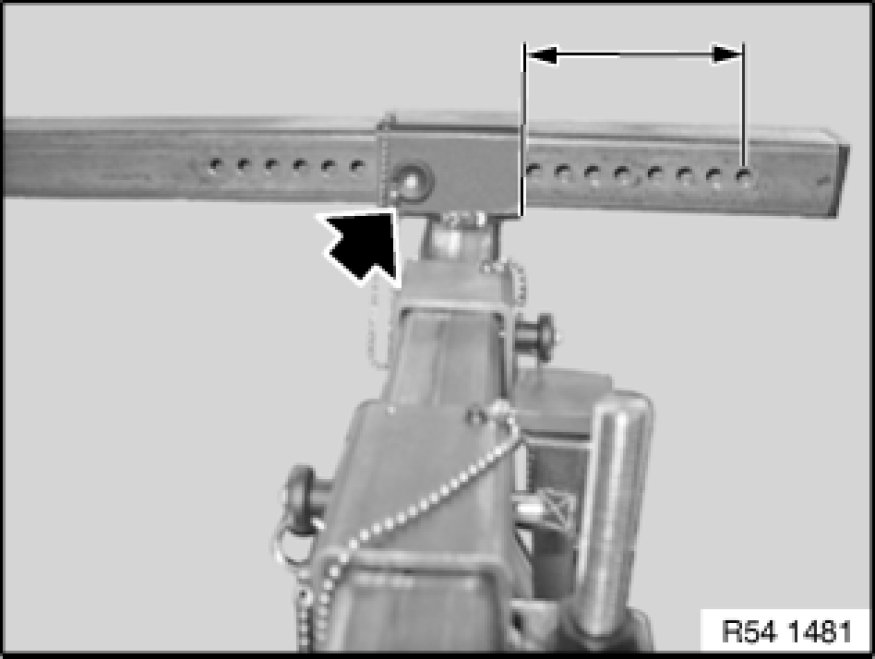

Adjust left and right extension arms measured eight holes from outside on cross-beam.

Secure adjustment with ball locking pin.

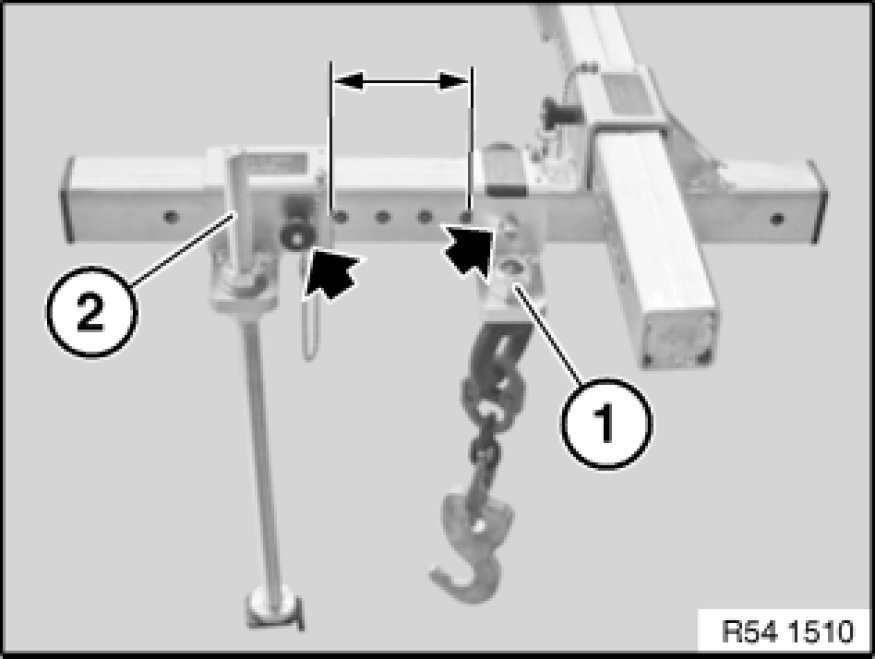

Adjust adapter with chain (1) in specified hole on extension arm.

Secure adjustment with ball locking pin.

Adjust adapter with counterholder (2) measured four holes from adapter chain on extension arm.

Secure adjustment with ball locking pin.
