54 34 348 Removing and Installing/Replacing Left or Right Rear Roof Frame Seal Rail

54 34 348 Removing And Installing/Replacing Left Or Right Rear Roof Frame Seal Rail







Necessary preliminary work:
- Remove rear roof frame seal







WARNING:
- Soft top becomes pressureless without a warning signal.
- For all repair work, secure soft top with a suitable support tool against collapsing.
- Ensure soft top is supported in the middle.
- Ignition must remain switched off during the repair work.
- Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.







Operation only when removing right roof frame:

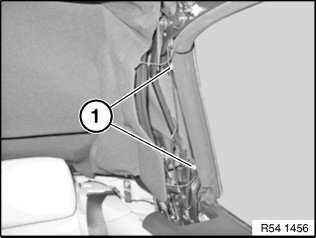

Unclip cable clip (1) from roof frame.

Installation note:
If necessary, replace cable clip.







IMPORTANT:
- Before releasing nuts, make a note of the number of spacer plates at the respective bolting point.
- Soft top is taught in at the factory.

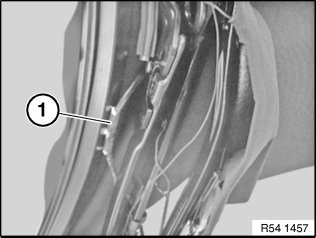

Release combination nuts (1).

Carefully remove rear roof frame with spacer plates.







Installation note:
Roof frame with window guide must be flush with middle window guide.

Adjust roof frame by means of spacers (refer to BMW Parts Department).

Side windows must run into seal correctly and rest in window guide over entire width.

Run a function check.

Check setting of side window and adjust if necessary.
