41 25 X30 Removing and Installing/Replacing Left or Right Hinge for Convertible Top Compartment Lid

41 25 X30 - Removing and installing/replacing left or right hinge for convertible top compartment lid





Read contents of Body, General.





Open rear lid.

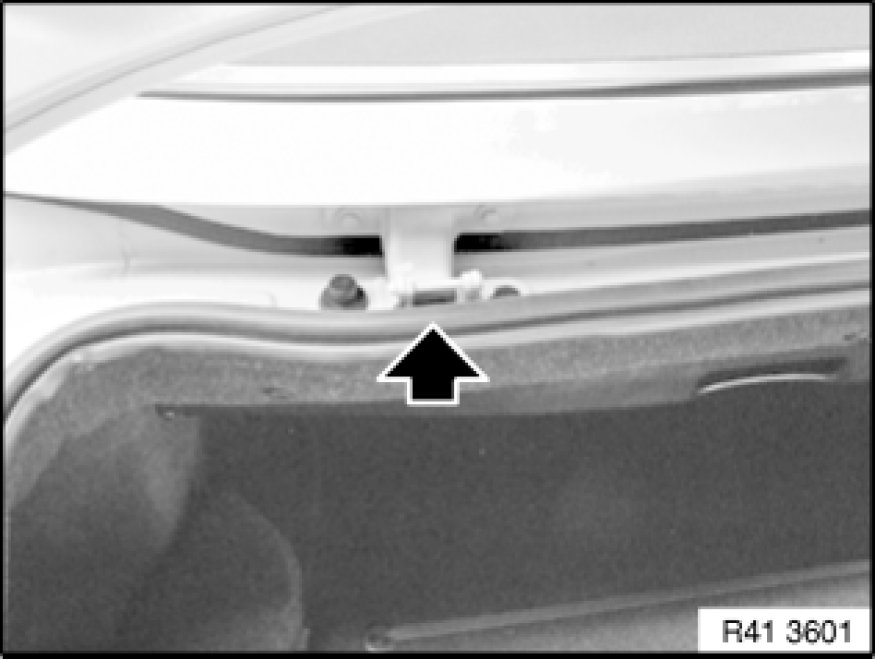

Release seal in hinge area.

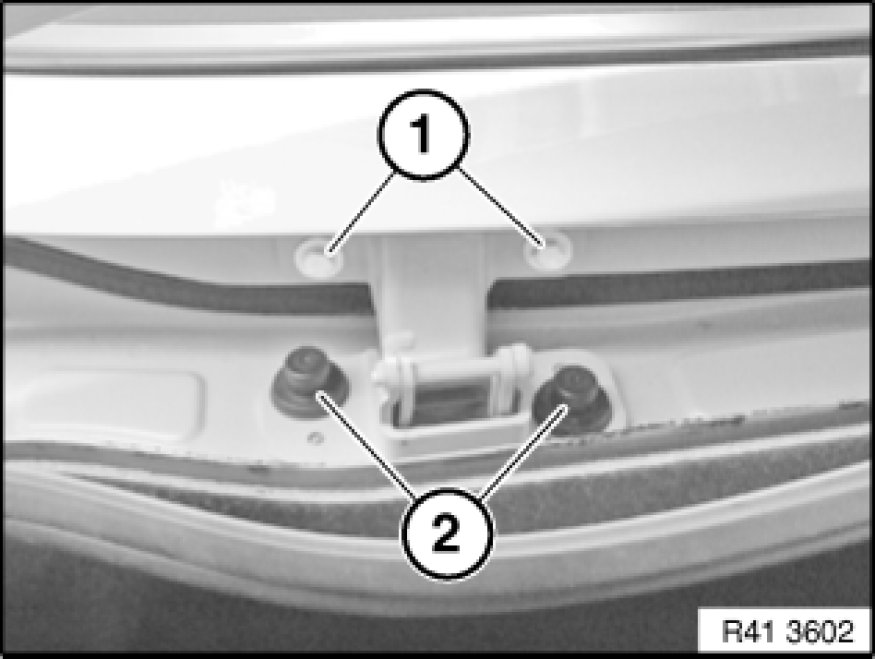

Release screws (1).
Tightening torque 41 63 3AZ. [1][2][3]41 63 Convertible Top Compartment Lid
Release protective caps (2) and screws underneath.
Tightening torque 41 63 4AZ. [1][2][3]41 63 Convertible Top Compartment Lid
Remove hinge.

Installation:
Install hinge at screw locations of convertible top compartment lid.
If necessary, adjust convertible top compartment lid Adjustments.
