Seat Temperature Control Module: Service and Repair

61 35 095 Removing And Installing/replacing Control Unit/module For Seat Heating







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







NOTE: Move seat completely towards rear/top.

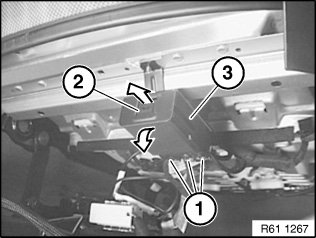

Disconnect plug connection (1).

Open lock (2) in direction of arrow and remove control unit/module for seat heating (3) towards bottom.

Installation:
Make sure control unit/module for seat heating (3) is correctly engaged.
