51 16 365 Removing and Installing/Replacing Glovebox Lid

51 16 365 - Removing and installing/replacing glovebox lid





Warning!
Read and comply with safety regulations [1][2]Safety Precautions and General Information for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling can activate airbag and cause injury.





Necessary preliminary tasks:
- Remove trim for instrument panel, bottom left 51 45 181 Removing and Installing/Replacing Bottom Right Trim For Instrument Panel

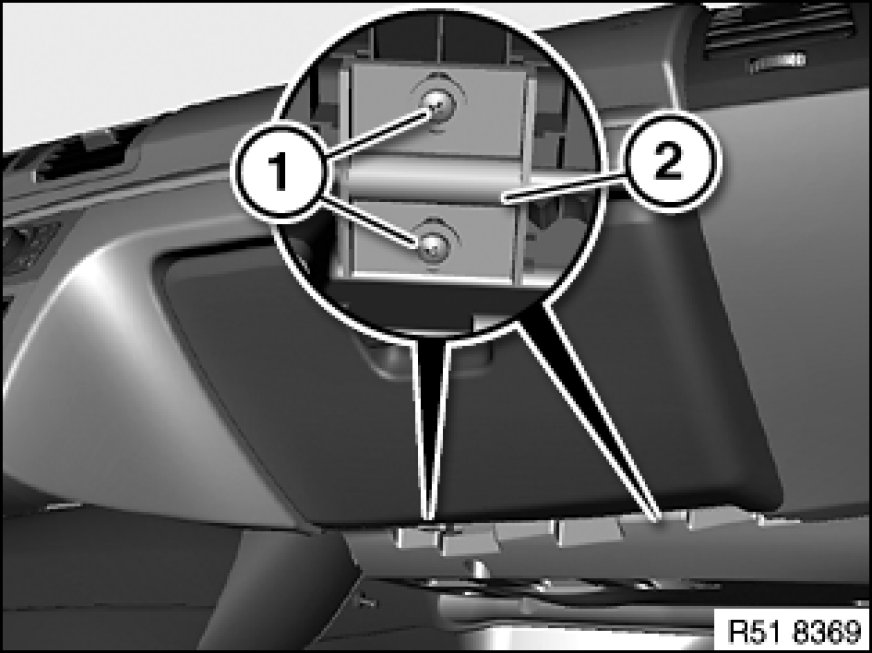

Release screws (1).
Remove hinge (2).

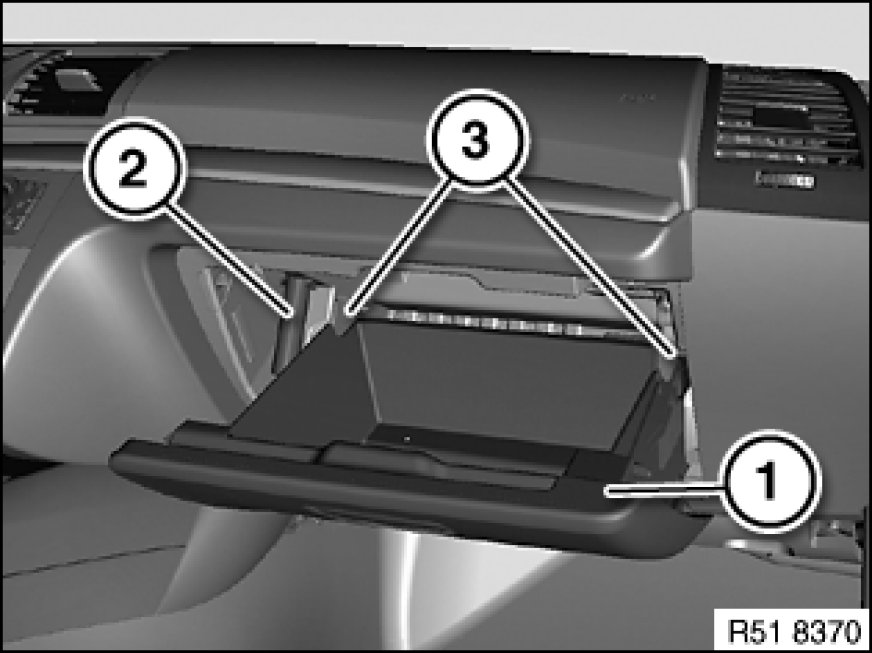

Open glovebox cover (1).
Unclip damper (2) on glovebox cover (1) towards rear.
Press in clips (3) and remove glovebox cover (1).
If necessary, unlock and disconnect plug connection on airbag module 72 12 ... Unlocking/Locking Airbag Plug Connections.





USA national version:
Replacement:
- Modify airbag module 72 12 006 Removing and Installing/Replacing Airbag Module For Passenger's Knee Protection
