51 16 491 Removing and Installing/Replacing Front Storage Shell

51 16 491 Removing And Installing/Replacing Front Storage Shell







Necessary preliminary tasks:
- Remove storage compartment

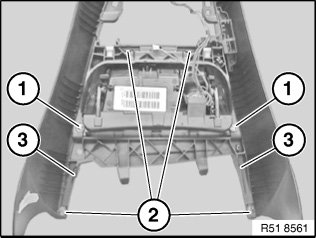

Release screws (1).

Unclip catches (2) and guides (3).

Installation:
Catches and guides must not be damaged.

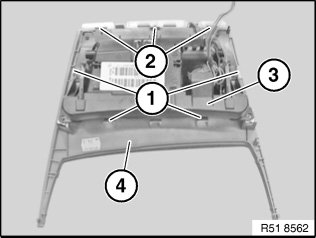

Unclip catches (1) and guides (2).

Detach storage shell (3) from trim (4).

Installation:
Do not damage guides (2) when feeding storage shell (3) in.
