51 16 201 Replacing Storage Compartment




51 16 201 - Replacing storage compartment





Necessary preliminary tasks:
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment
Version with centre armrest:
- Remove centre armrest 51 16 195 Removing and Installing Center Armrest





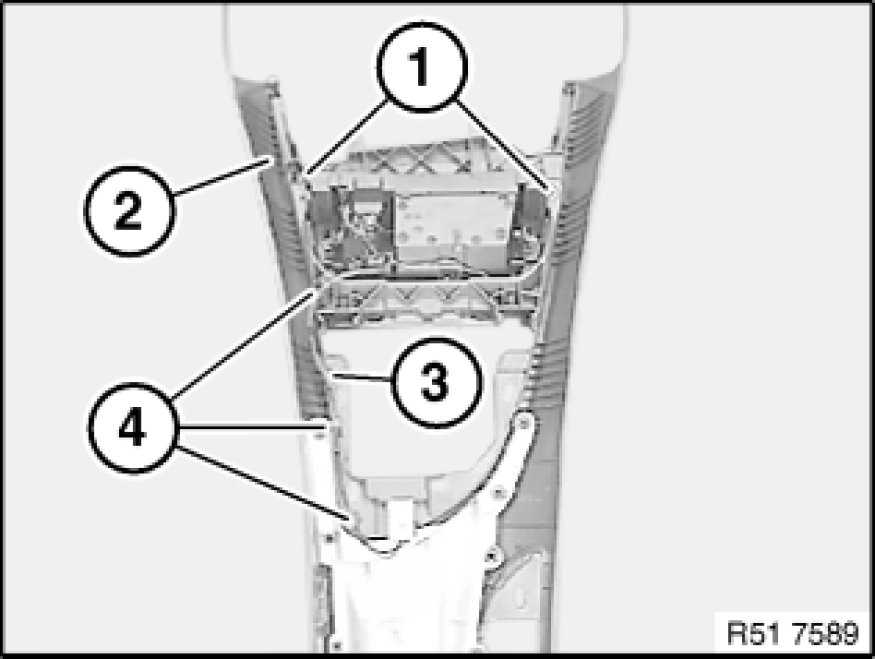

Release screws (1) on storage compartment (2).
Feed electrical lead (3) out of holders (4).





Unclip catches (1) and (2) on ashtray/storage trim at front (3).

Installation:
Catches (1) and (2) must not be damaged.
