51 16 196 Removing and Installing/Replacing Cover For Center Armrest

51 16 196 - Removing and installing/replacing cover for centre armrest





Important!
Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.





Necessary preliminary tasks:
- Remove trim on storage compartment at rear 51 16 ... Removing and Installing/Replacing Trim For Storage Compartment at Rear

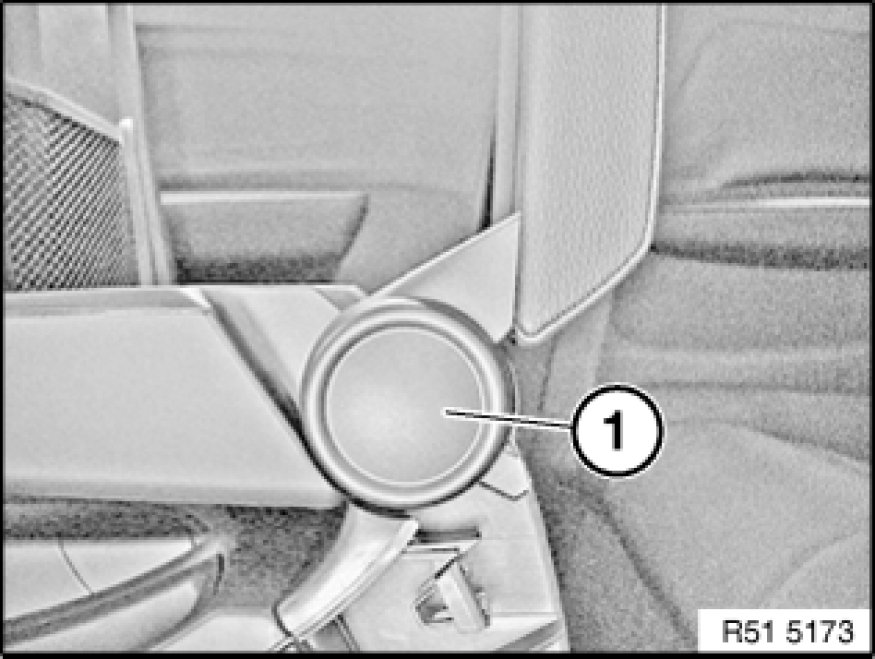

Unclip trim (1) on left/right.





Open cover (1).

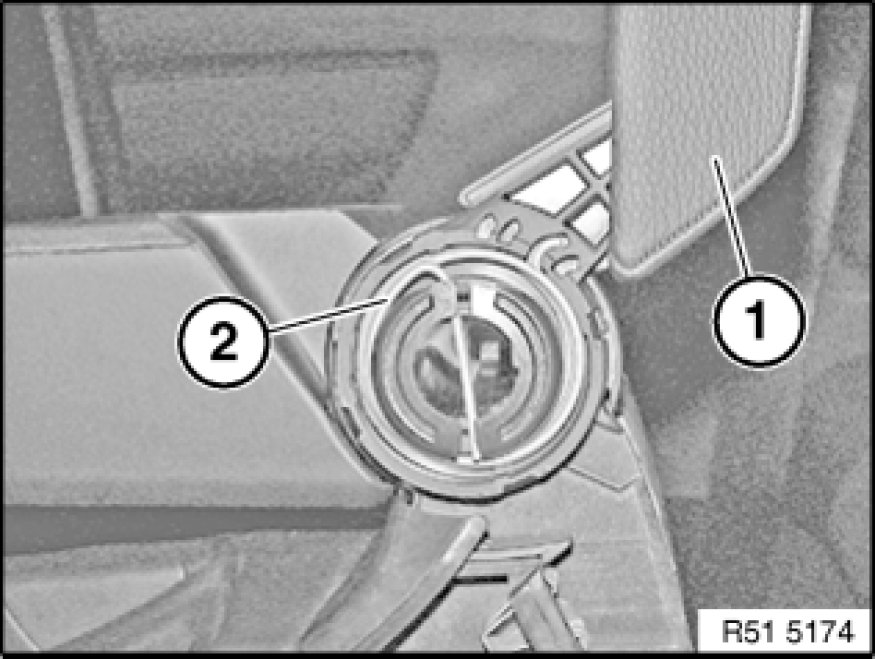

Detach spring (2) on left/right.

Installation Note:
Make sure spring (2) is correctly seated

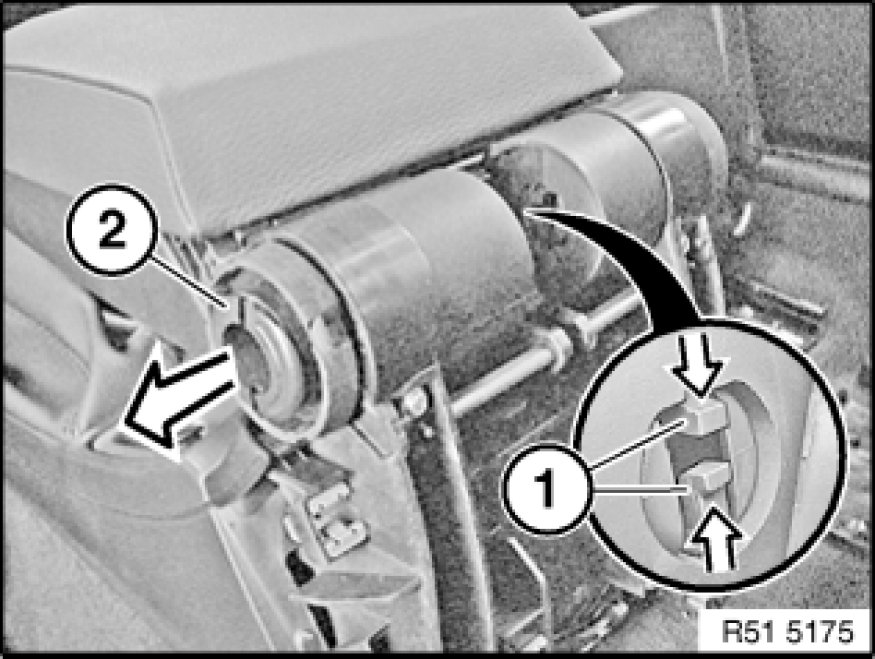

Press catches (1) together.
Pull out rotary shaft (2) on left/right.

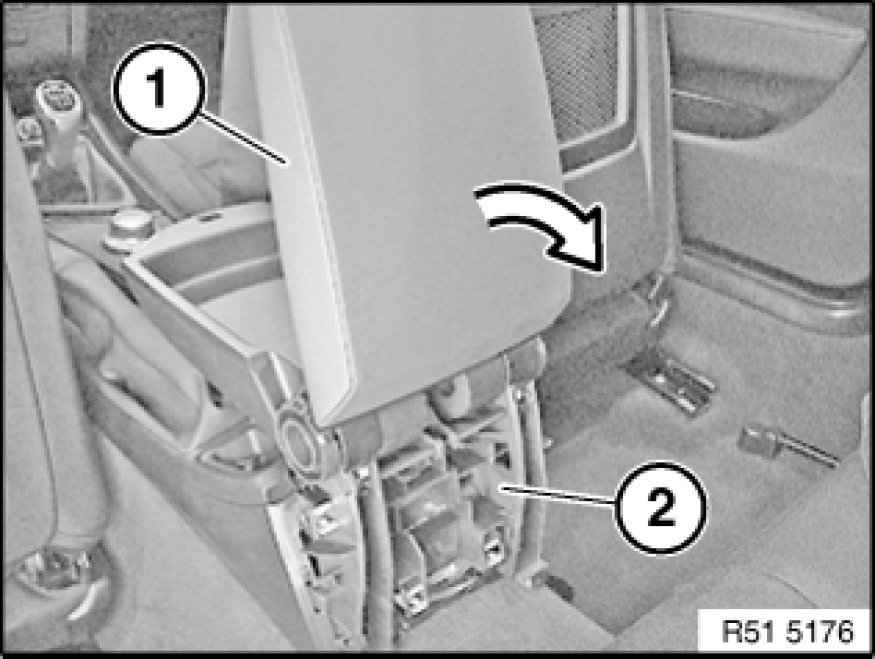

Fold cover (1) back until it feeds out of storage compartment (2).





Installation Note:

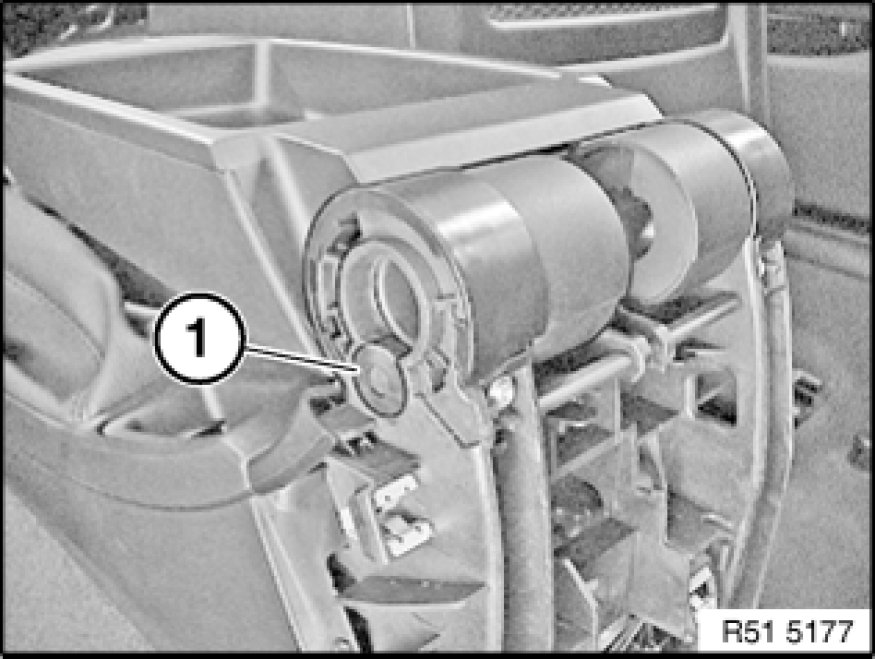

If necessary, replace rubber damper (1) on left/right.
