51 16 ... Removing and Installing/Replacing Trim For Storage Compartment at Rear

51 16 ... - Removing and installing/replacing trim for storage compartment at rear





Special tools required:
- 00 9 317





Version without centre armrest:

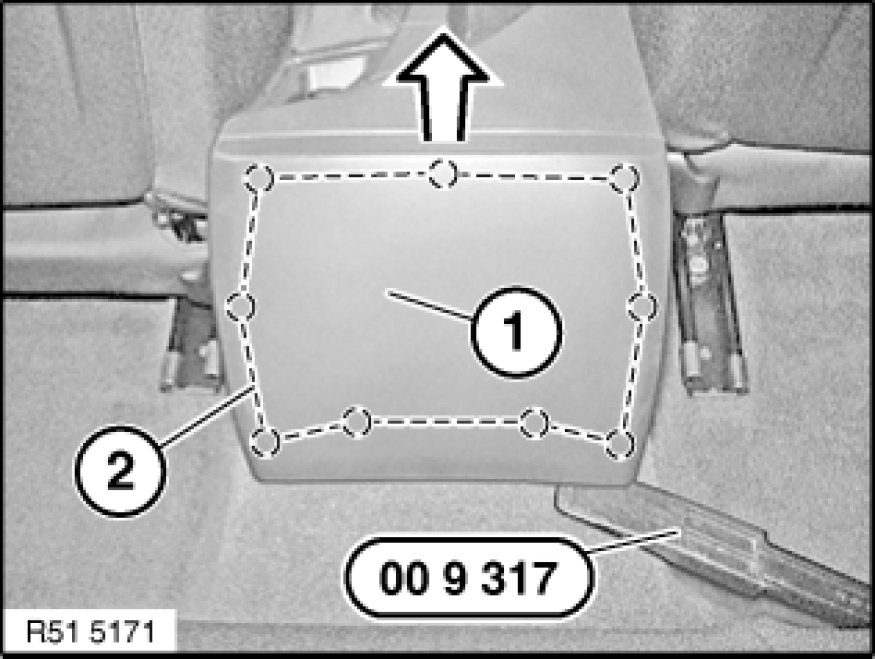

Partially fit special tool 00 9 317 as illustrated.

Lever trim (1) upwards out of catches (2) and remove.





Installation:
Catches (1) on trim (2) must not be damaged.





Version with centre armrest:

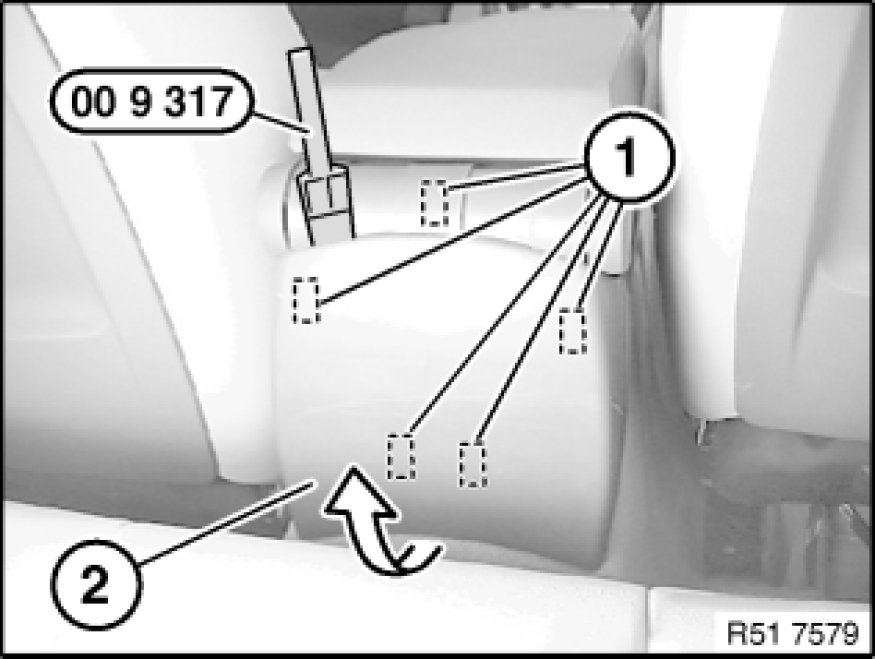

Lever out trim (2) on catches (1) with special tool 00 9 317 and remove in direction of arrow.





Installation:

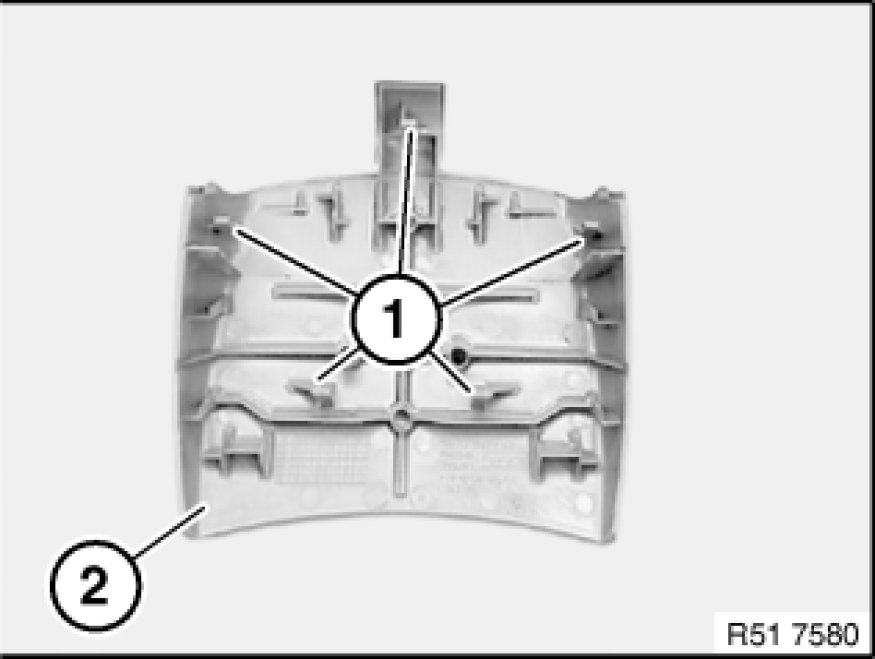

Catches (1) on trim (2) must not be damaged.
