51 47 440 Removing and Installing/Replacing Rear Carpet on Seat Pan

51 47 440 - Removing and installing or replacing rear carpet on seat pan





Necessary preliminary tasks:
- Remove left/right front seat Removing and Installing Left or Right Front Seat (Normal / Manual)
- Remove rear seat Removing and Installing / Replacing Rear Seat
- Remove handbrake lever 34 41 000 Removing and Installing/Replacing Handbrake Lever
- Remove airbag control unit Service and Repair
- Remove inner entrance cover strips 51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip
Version with central bass speaker:
- Remove central bass speaker trim 65 12 050 Removing and Installing/Replacing Left or Right Central Bass Speaker (Under Front Seat) on left/right

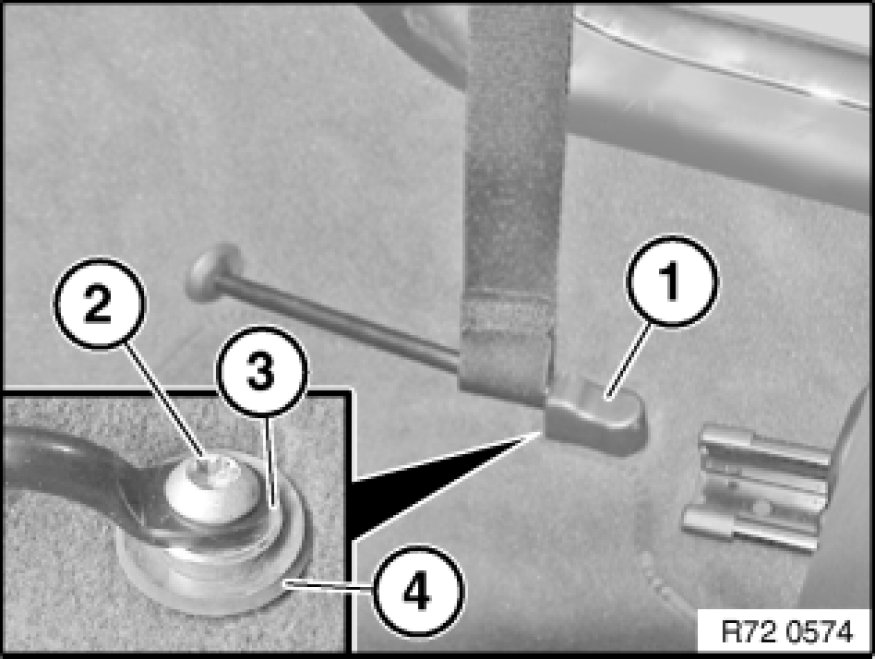

Lever out protective cap (1) on left/right.
Loosen left/right screw (2).
Tightening torque 72 11 05AZ Specifications.

Installation:
Check that spacer bushing (3) and rubber ring (4) are in correct position.

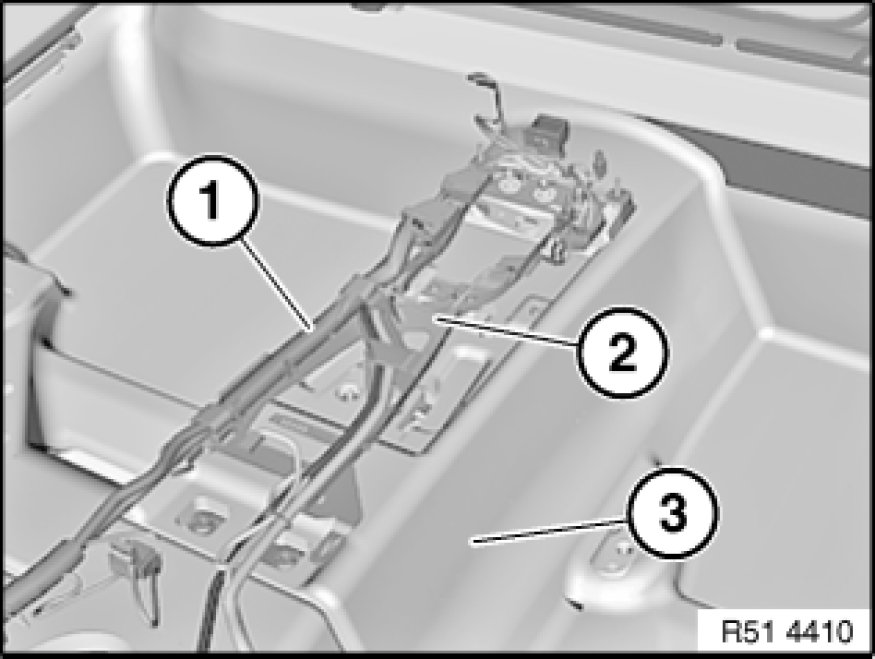

Pull back cable (1) with cable holder (2).
If necessary, release side trim panel lower section Removing and Installing/Replacing Rear Left or Right Lower Side Trim Section in lower covered area.
Feed out carpet (3) and remove.

Installation:
Make sure openings for air duct and attachment points are correctly positioned.
