Removing and Installing/Replacing Right Hood/Bonnet Lock

51 23 105 - Removing and installing/replacing right hood/bonnet lock





Warning!
Scalding hazard!
Only perform work after engine has cooled down.

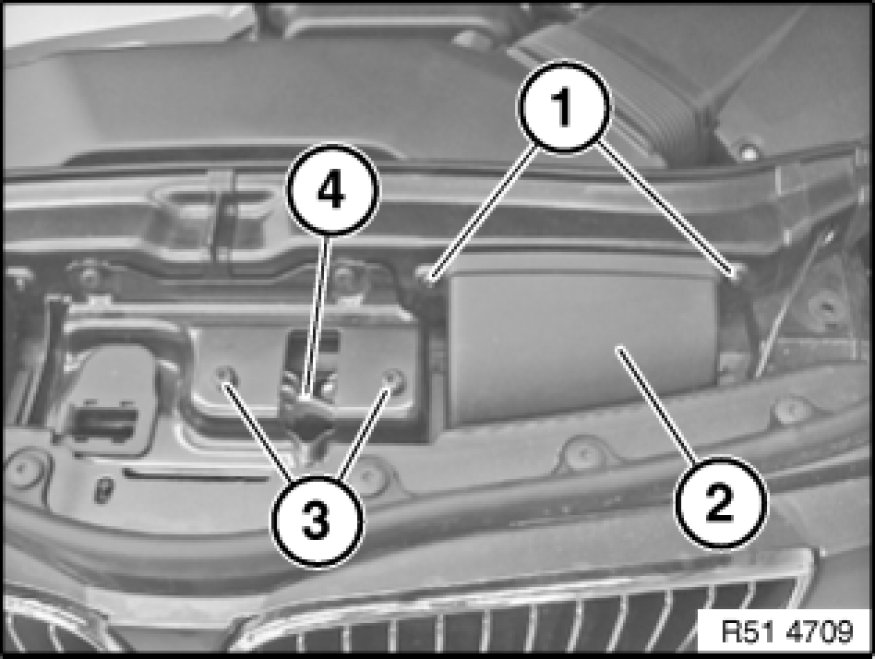

Release screws (1) and remove intake duct (2).
Release screws (3) and feed out hood/bonnet lock (4) sideways.
Tightening torque 51 23 2AZ [1][2]Hood Latch.





Note:

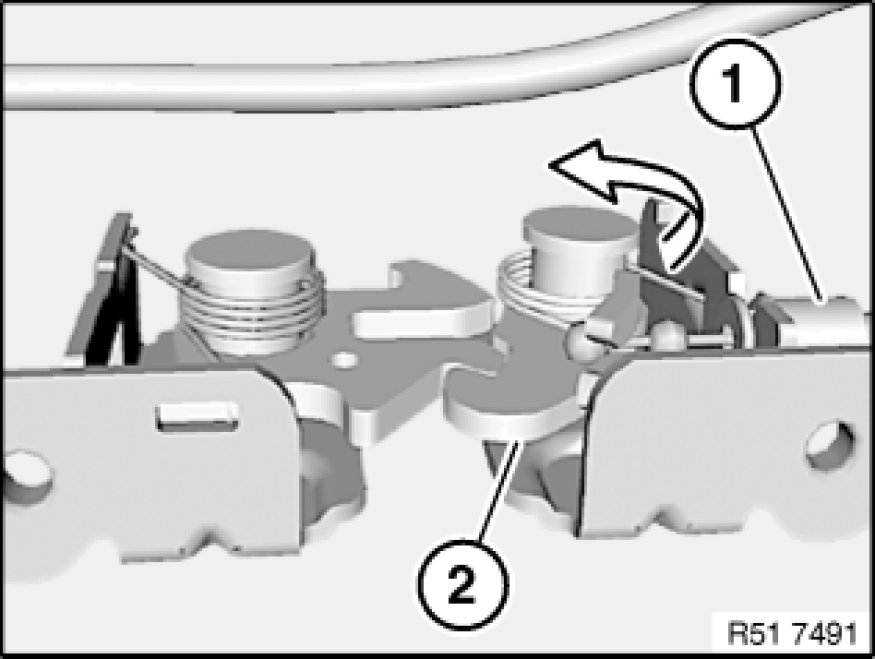

Engine hood/bonnet lock (2) shown without attachment parts for purposes of clarity.

Disengage Bowden cable (1) from hood/bonnet lock (2).
