Rear Bumper Bracket: Service and Repair

51 12 801 - Replacing bracket for rear bumper at left or right





Necessary preliminary tasks:
- Remove rear bumper trim

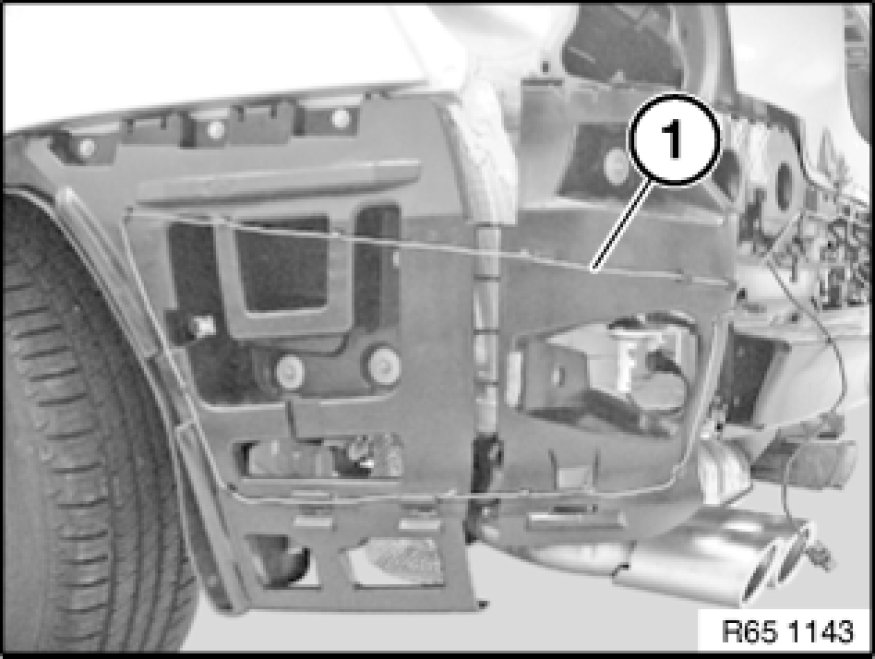

If necessary, feed aerial cable (1) out of holder.

Installation:
Ensure correct lead routing.

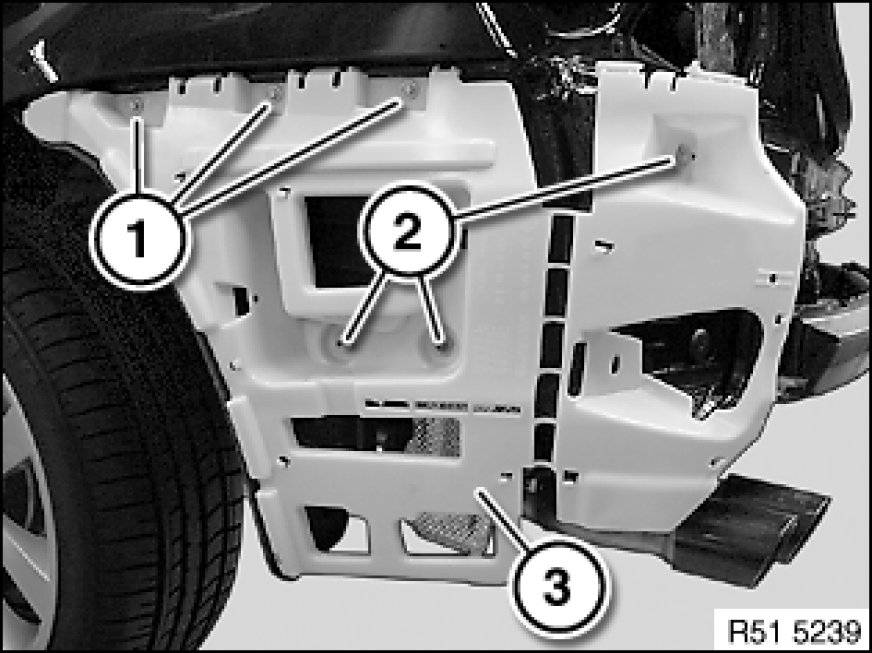

Release screws (1).
Release nuts (2) and remove holder (3).





Installation:

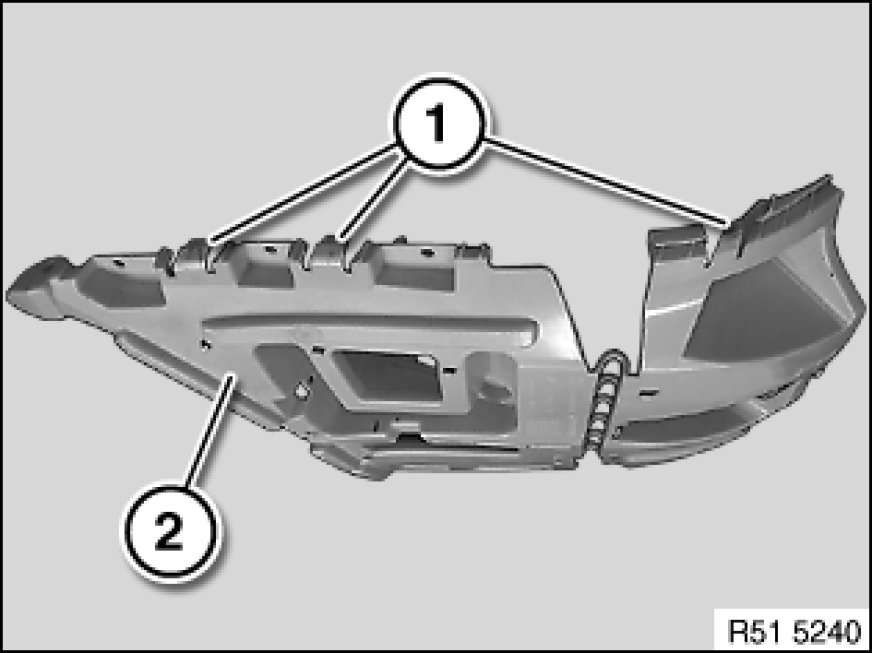

Catches (1) on holder (2) must not be damaged.
