CD Changer: Service and Repair

65 11 070 - Removing and installing/replacing CD changer





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove luggage compartment trim on left.





Note:
Follow instructions for handling optical fibres 61 00 ... Notes on Handling Optical Fibers.

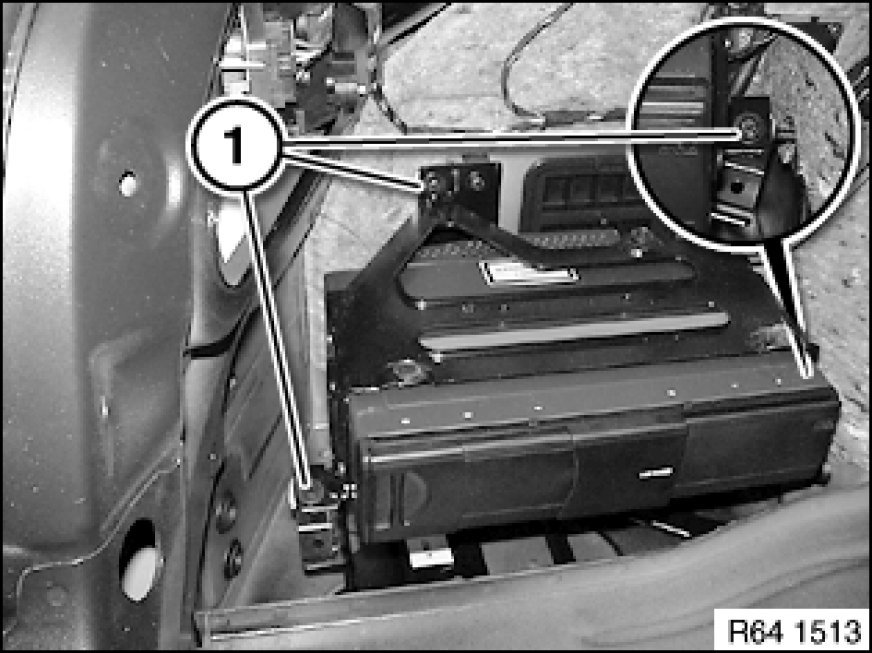

Release screws (1).
Pull CD changer (2) forward and unlock and disconnect plug connections.
Remove CD changer (2) complete with holder.





Replacement:
Release screws (1) and remove holder (3) from CD changer (2).
