Antenna, Navigation: Service and Repair

65 90 540 - Removing and installing/replacing aerial of Global Positioning System (GPS)

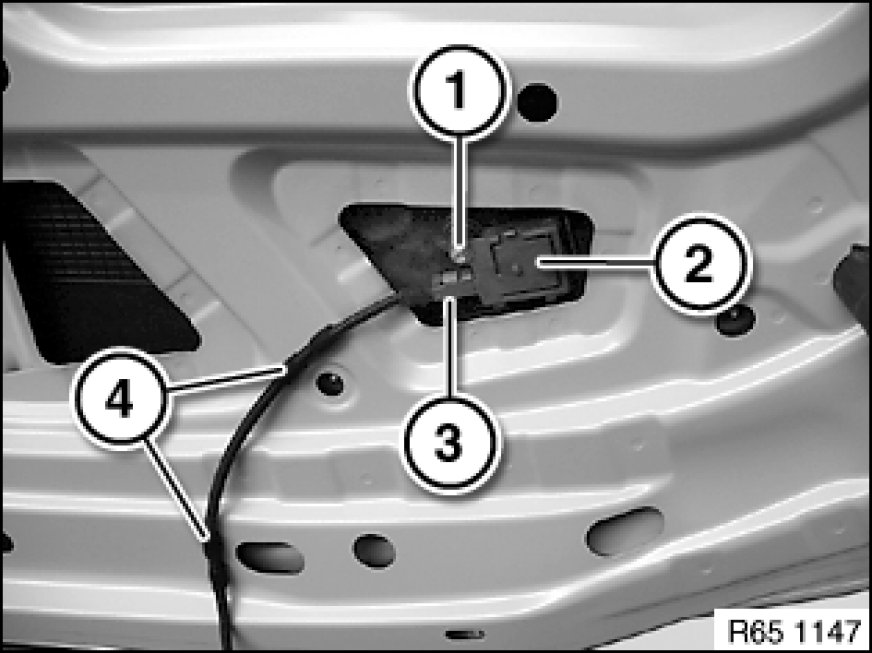

Move convertible top into position shown.





Release screw (1).
Remove aerial (2) and disconnect plug connection (3).

Installation:
Make sure lead (4) is correctly seated.
