23 12 090 Replacing Radial Seal For Selector Shaft (GS6-17BG)

23 12 090 - Replacing radial seal for selector shaft (GS6-17BG)





Special tools required:
- 23 0 210 23 0 210 Extractor
- 23 0 220 23 0 220 Impact Bush





Note:
After completion of work, check transmission oil level.





Important!
Use only the approved gear oil in this manual transmission.

Failure to comply with this requirement will result in serious damage to the manual transmission.





Shift transmission into 2nd gear.

Unflange propeller shaft from transmission 26 11 000 Removing and Installing Propeller Shaft (Cardan Universal Joint) Completely and tie back to one side.

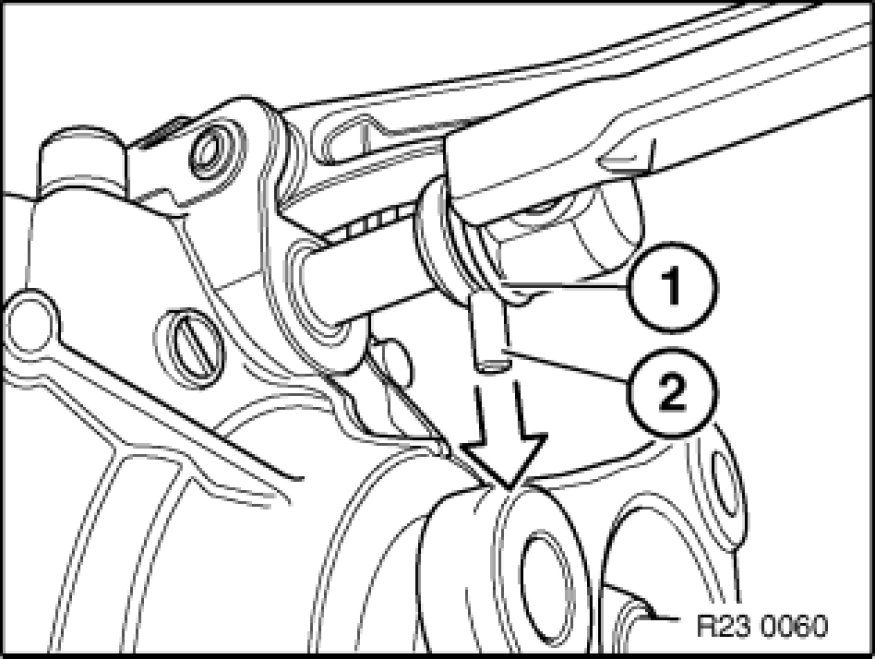

Lever retaining ring (1) out of groove with a small screwdriver.

Push retaining ring (1) towards rear.

Drive out straight pin (2).

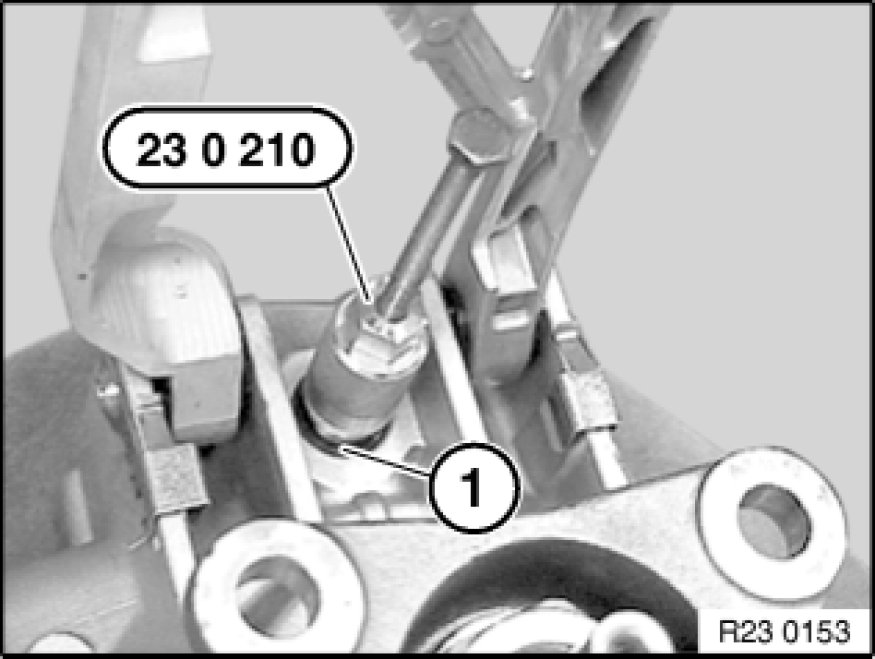

Screw in special tool 23 0 210 23 0 210 Extractor until it is firmly connected to radial seal (1).

Pull out radial seal with special tool 23 0 210 23 0 210 Extractor.





Coat sealing lips of radial seal and selector shaft with gear oil.

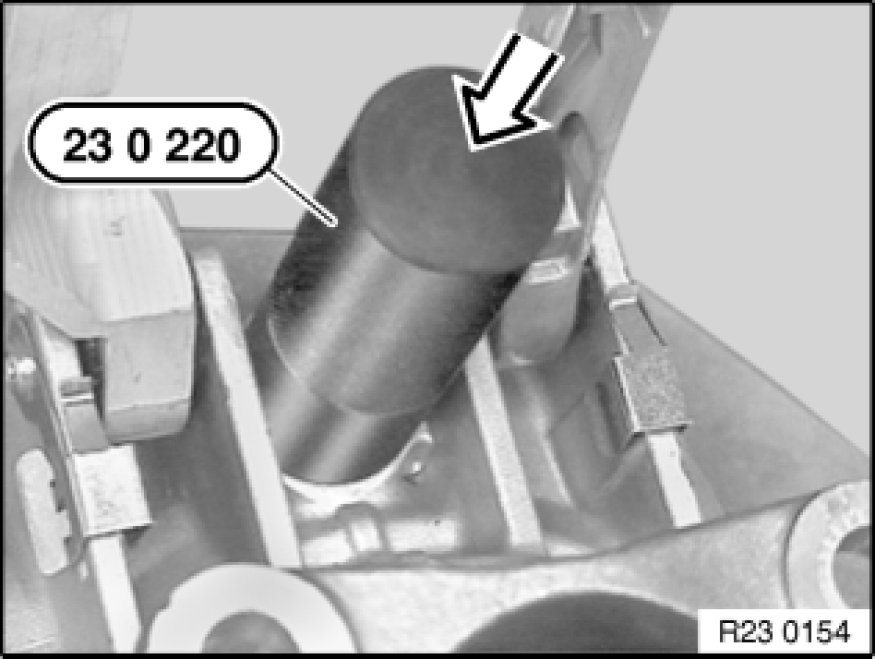

Drive in radial seal with special tool 23 0 220 23 0 220 Impact Bush.
