24 14 003 Replacing Selector Shaft Seal (GA6L45R)

24 14 003 Replacing Selector Shaft Seal (GA6L45R)

Special tools required:







IMPORTANT:
After completion of work, check transmission fluid level. Use only the approved transmission fluid.
Failure to comply with this requirement will result in serious damage to the automatic transmission.







Necessary preliminary tasks:
- Remove heat shields

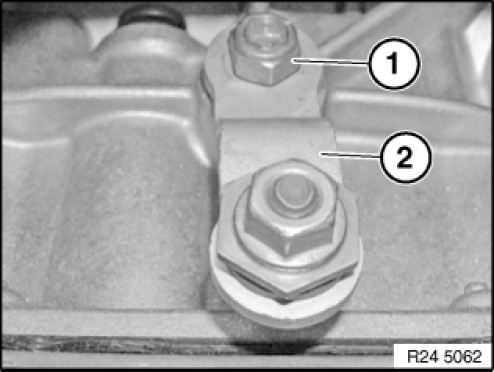

Slacken nut (1).
Take off holder (2).
Tightening torque 24 51 1AZ.
After completing work:
Adjust shift lever.

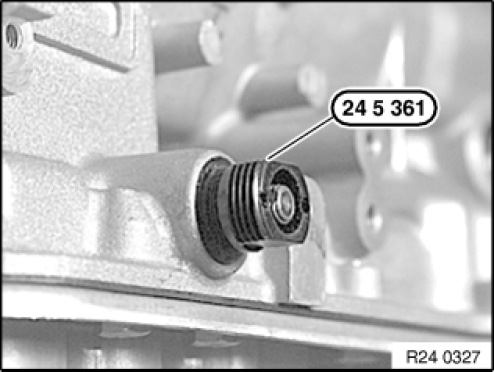

Screw in special tool 24 5 361 until it is firmly connected with shaft seal.

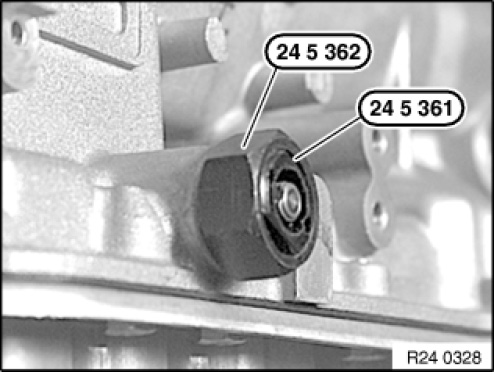

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.
This pulls the shaft seal out of the transmission housing.







Oil sealing lip on shaft seal.
Screw in shaft seal with special tools 24 4 381 and 24 4 382 as far as it will go.
