11 41 000 Removing and Installing/Replacing Oil Pump

11 41 000 - Removing and installing/replacing oil pump (N52K)





Necessary preliminary tasks:
- Remove oil sump Service and Repair

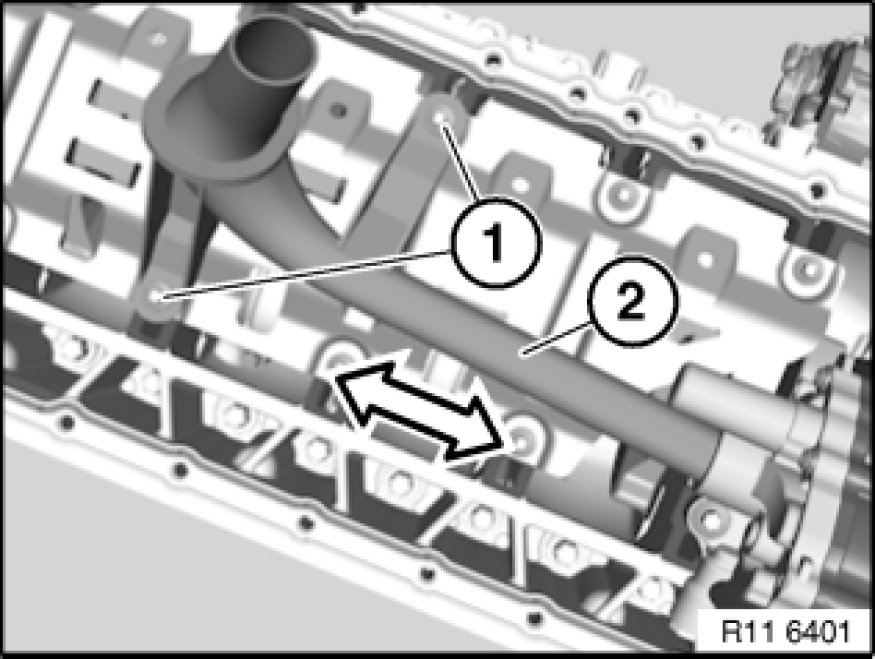

Release screws (1).
Tightening torque 11 41 1AZ. Mechanical Specifications

Installation:
Replace aluminium screws.

Remove intake pipe (2) in direction of arrow.

Installation:
Replace sealing ring.





Note:

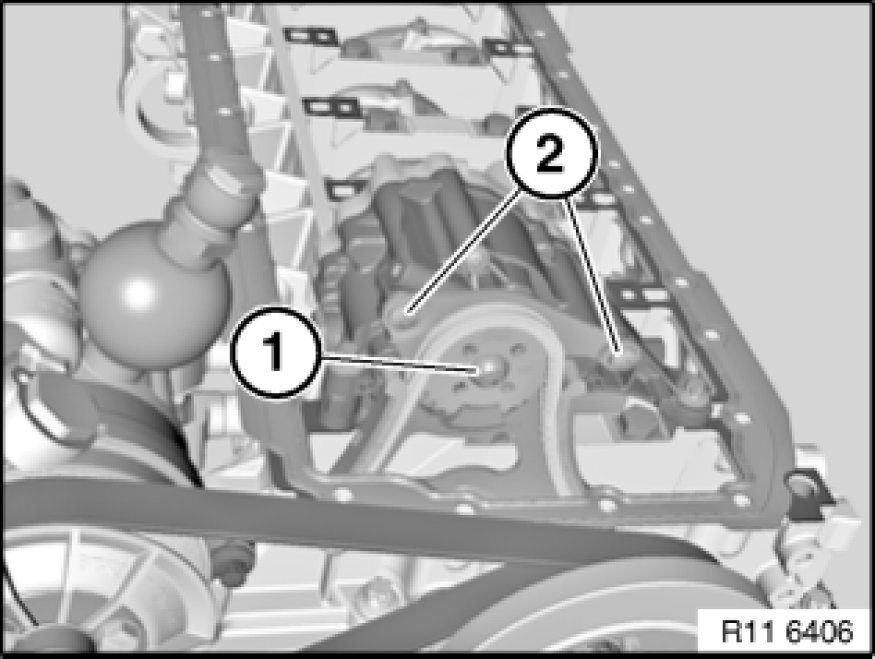

To release bolt (1), insert a 6 mm drill bit between sprocket wheel and oil pump housing.

Release bolt (1).

Tightening torque 11 41 6AZ. Mechanical Specifications
Release screws (2).
Tightening torque 11 41 5AZ. Mechanical Specifications

Installation:
Replace aluminium screws.





Important!
Observe different screw lengths.

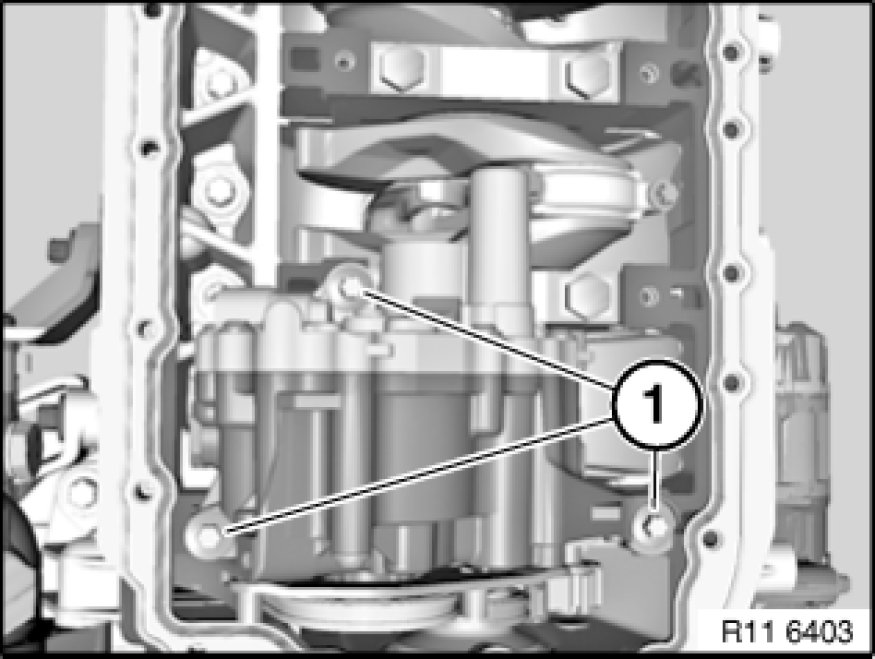

Release screws (1).

Tightening torque 11 41 2AZ. Mechanical Specifications
Tightening torque 11 41 3AZ. Mechanical Specifications

Installation:
Replace aluminium screws.

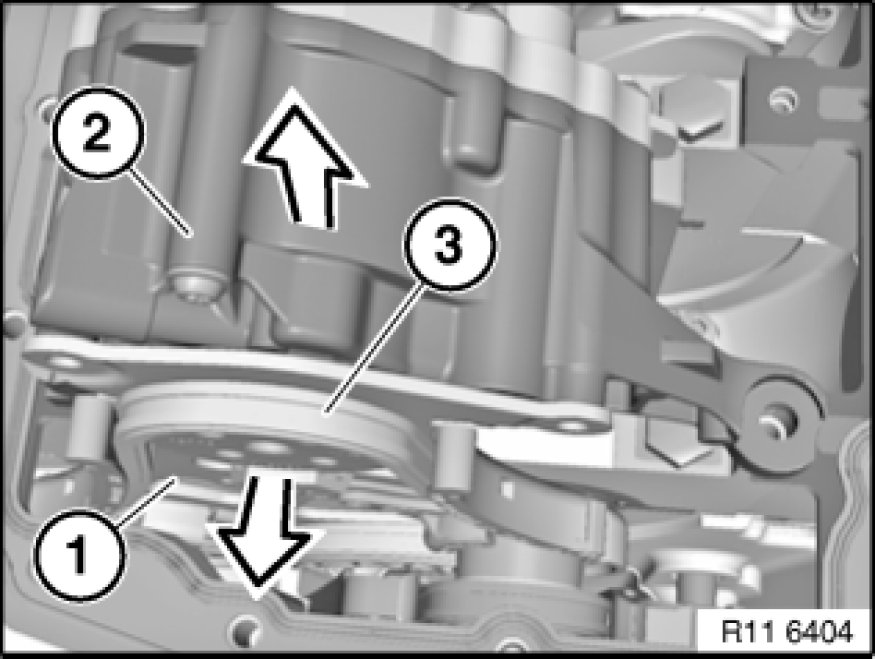

Detach sprocket wheel (1) in direction of arrow.

Note:
Chain tensioner presses timing chain (3) upwards.
Do not remove sprocket wheel (1).

Remove oil pump (2) in direction of arrow.





Installation:

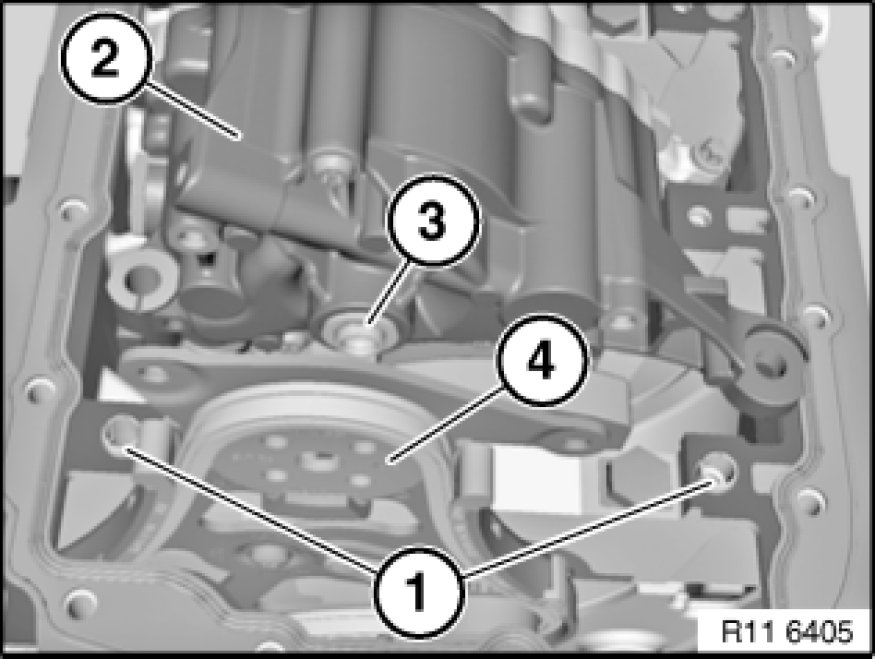

Check spacers (1) for secure seating and damage; replace if necessary.

Align twin surface (3) on oil pump (2) to sprocket wheel (4).

Install oil pump (2).





Assemble engine.
