Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (N51/N52/N52K/N53)





Necessary preliminary tasks:
- Remove underbody protection at front and rear
- Secure engine in installation position Securing Engine In Installation Position
- Remove intake filter housing Service and Repair
- Remove reinforcement strut (E90/91/92 only)
- Remove V-strut (E93 only)





Release grounding strap from engine support arm.
Release clamp from fuel hose of engine support arm.

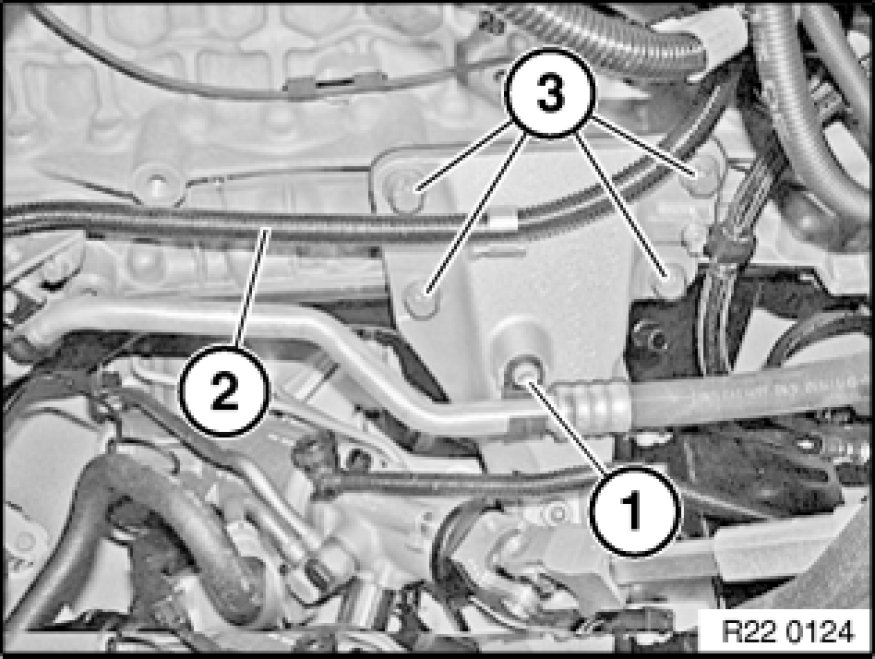

If necessary, release screw (1).
Release corrugated tube (2) from retainer.
Release screws (3).
Remove engine support arm.

Installation:
Aluminium screws/bolts must be replaced.

Tightening torque 22 11 3AZ Specifications
