Harmonic Balancer - Crankshaft Pulley: Service and Repair

11 23 010 - Removing and installing/replacing vibration damper (N52K)





Necessary preliminary tasks:
- Remove underbody protection Removing and Installing/Replacing Front Underbody Protection.
- Remove drive belt Service and Repair

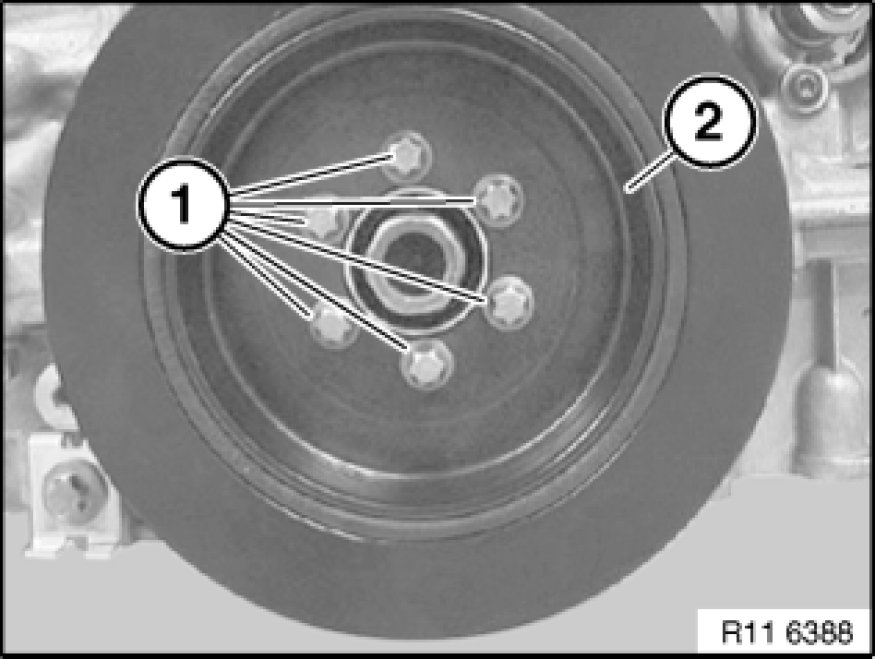

Release screws (1).
Tightening torque 11 23 1AZ. Mechanical Specifications
Remove vibration damper (2).





Assemble engine.
