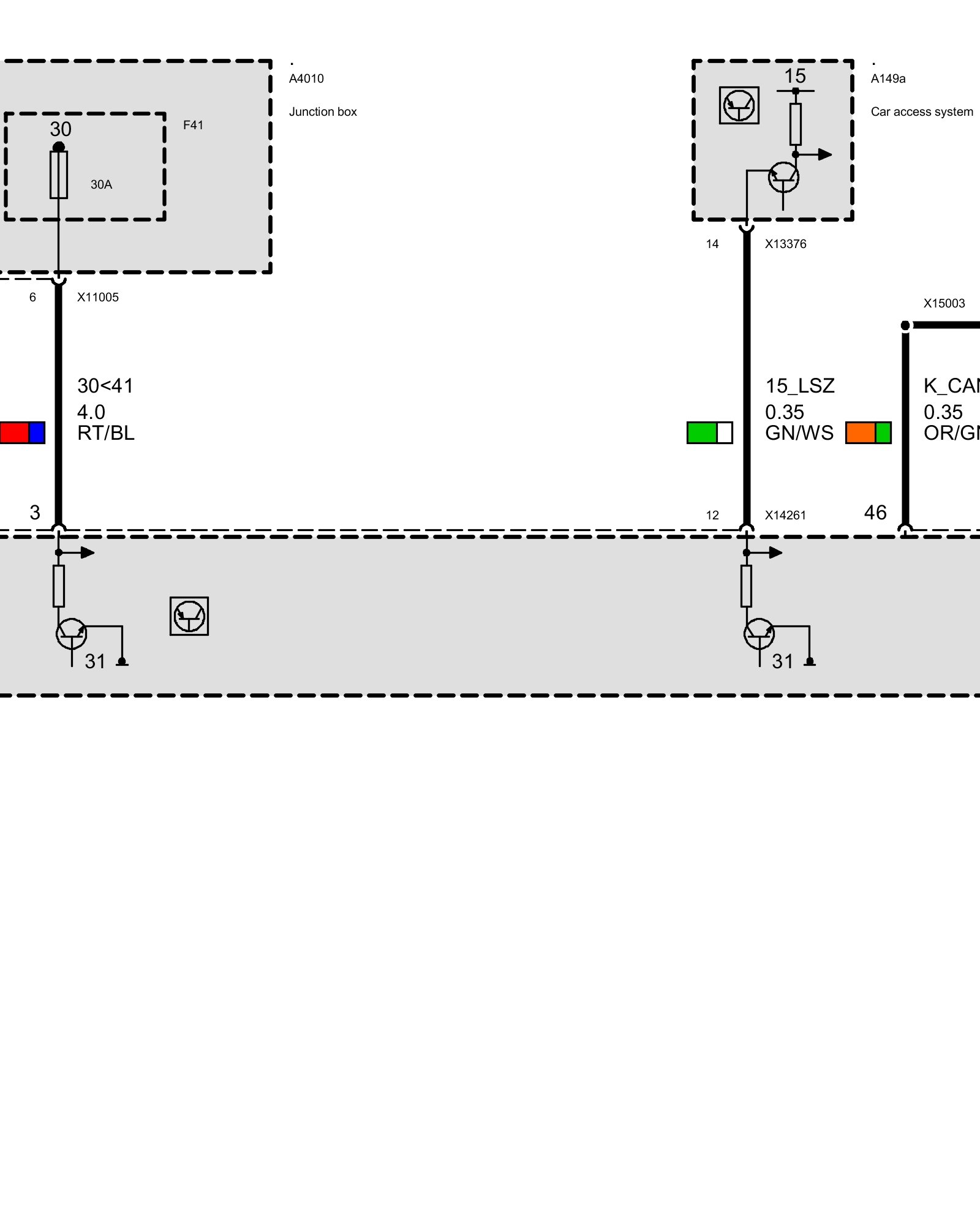

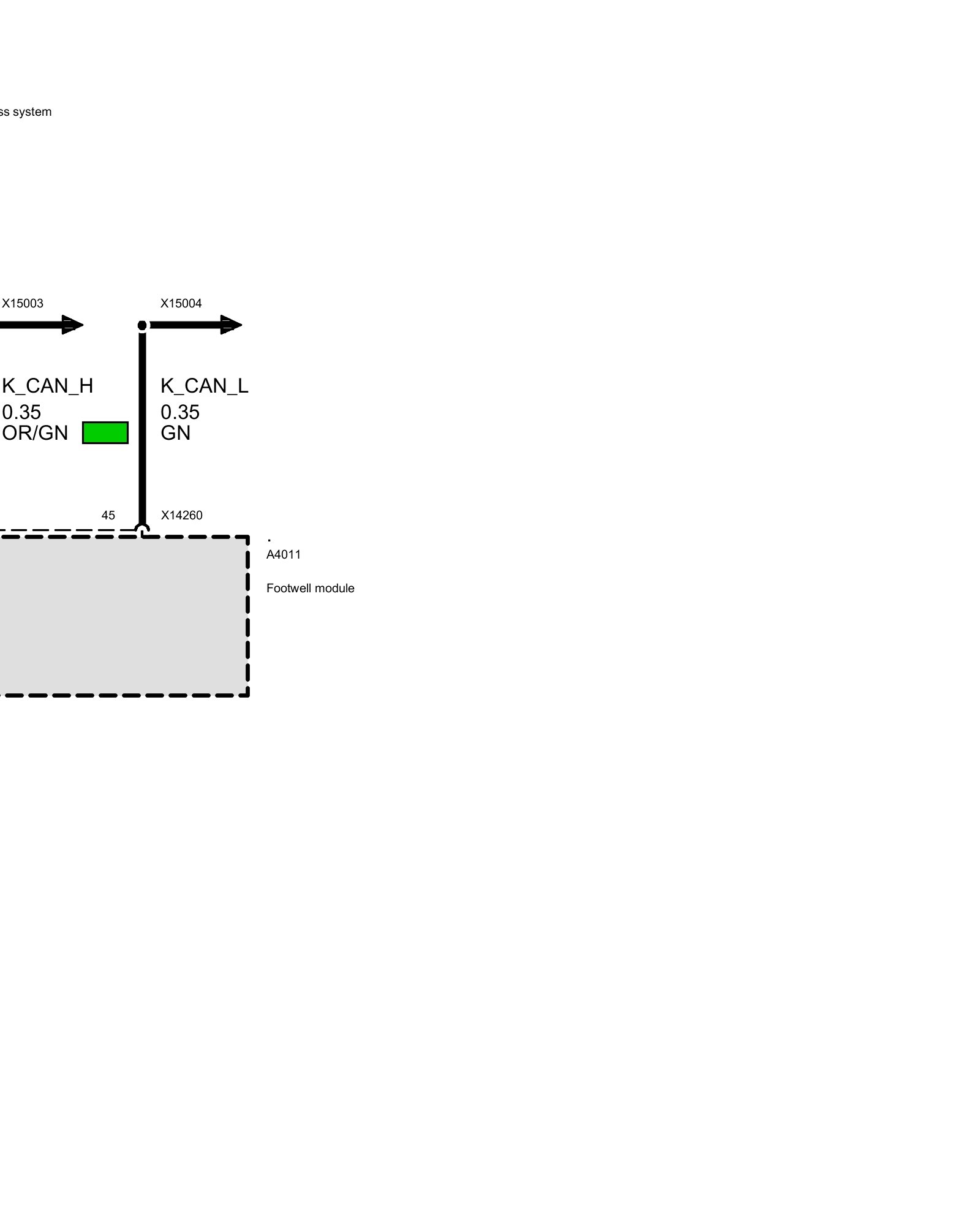

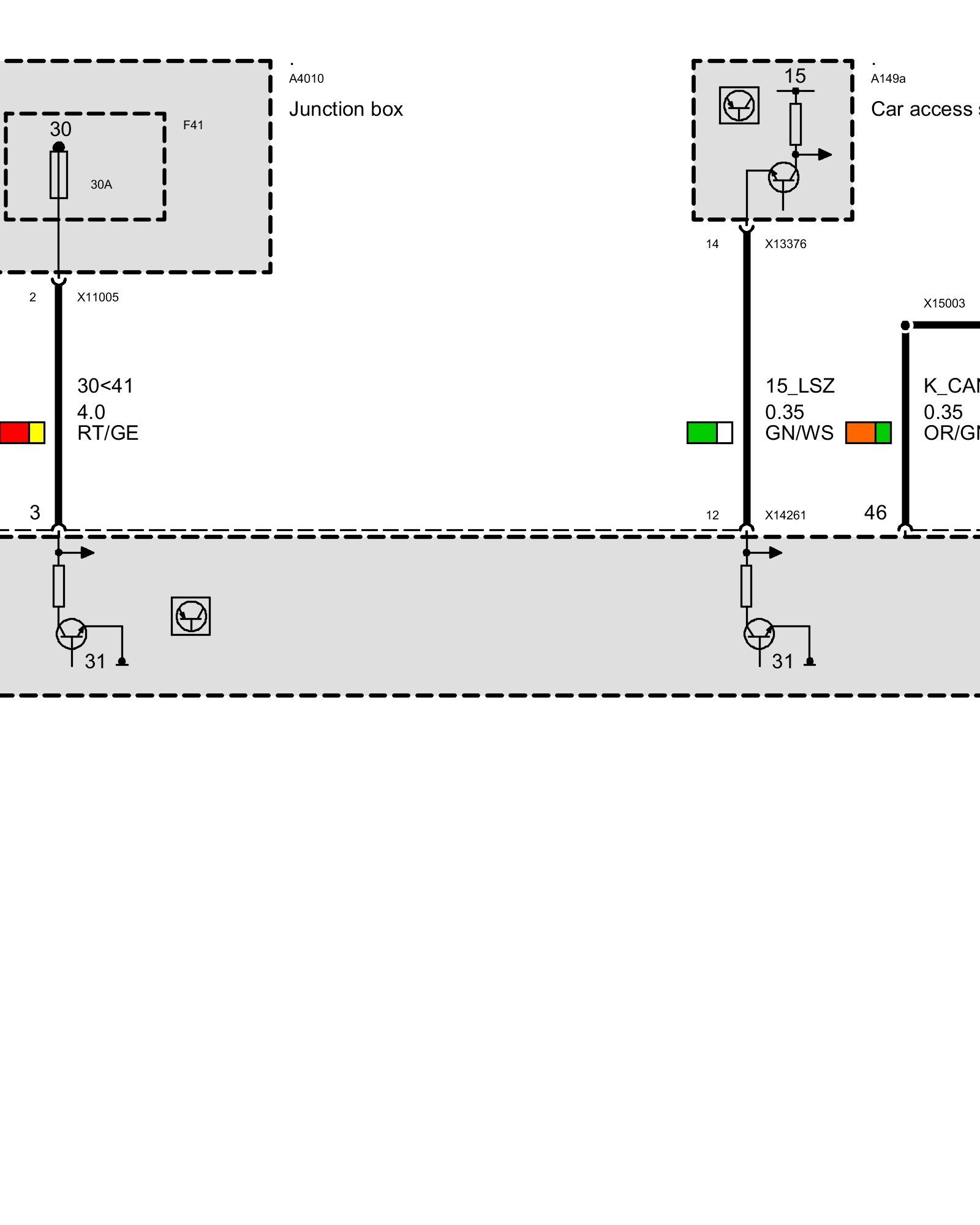

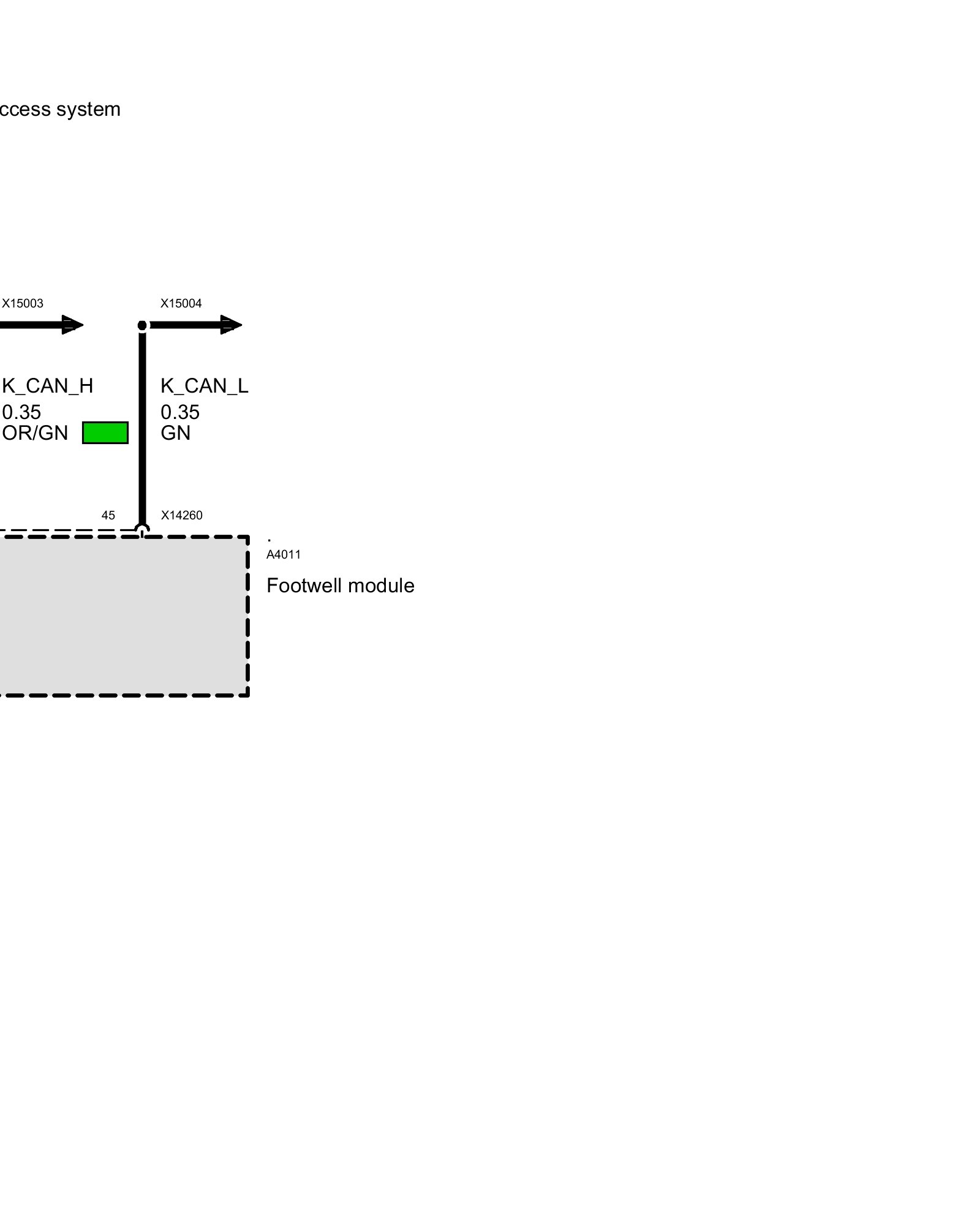

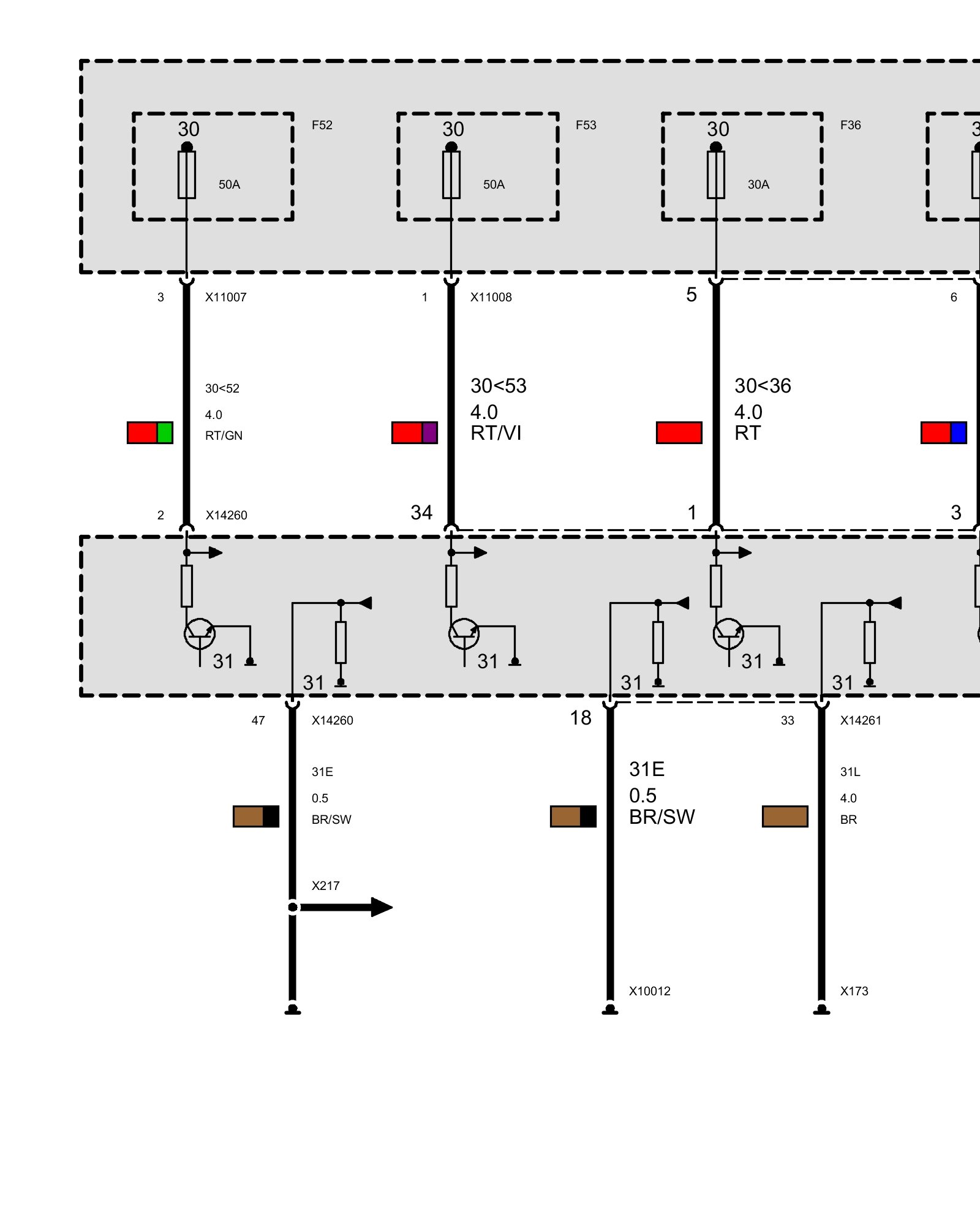

Power Supply, Footwell Module FRM
Power Supply, Footwell Module FRM
Up To 03/07
As Of 03/07 Up To 09/07
As Of 09/07
