13 62 532 Replacing Radiator Outlet Coolant Temperature Sensor

13 62 532 - Replacing radiator outlet coolant temperature sensor (N51)





Warning!
Danger of scalding!
Only perform these tasks on an engine that has cooled down.





Recycling
Catch and dispose of escaping coolant.
Observe country-specific waste-disposal regulations.

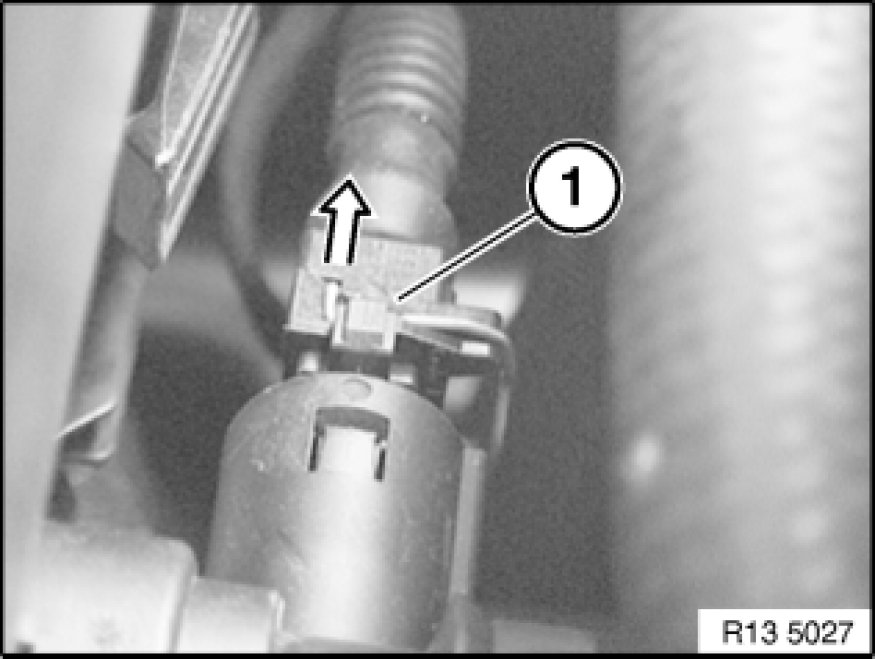

Disconnect plug (1) from temperature sensor.

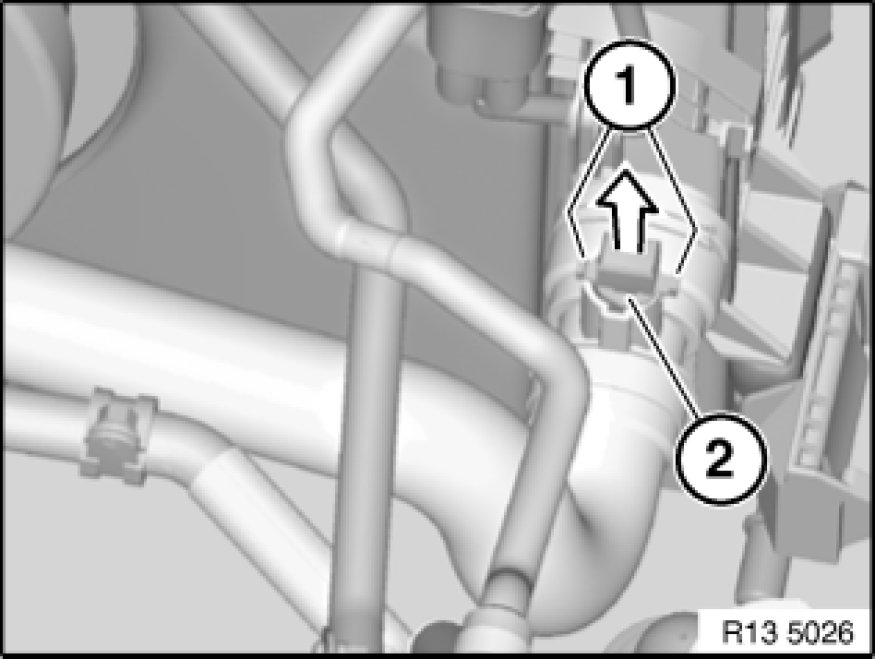

Press retaining clips (1) together.
Remove temperature sensor (2) in direction of arrow.





Assemble engine.
Check function of DME.
Check cooling system Component Tests and General Diagnostics for leaks.
Check coolant level and top up if necessary.
