26 11 051 Replacing Flexible Disk For Front Propeller Shaft

26 11 051 Replacing flexible disc for front propeller shaft





Necessary preliminary tasks:
^ Remove propeller shaft from transmission and center bearing

Note:
To protect universal joints, tie back propeller shaft in area of center mount.

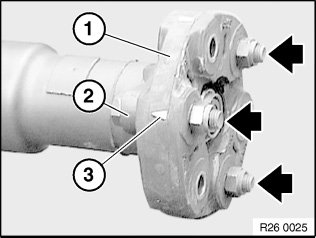

Release screws and remove flexible disc (1) from propeller shaft.

Important!
Replace shiny ZNS bolts and selflocking nuts.

Tightening torque and angle of rotation: 26 11 1AZ.

Installation:
- Arrows (3) on circumference of flexible disc must point to flange arms (2).
- Grip mounting bolts of flexible disc at propeller shaft flange at nuts and tighten down at bolt heads.





Installation:

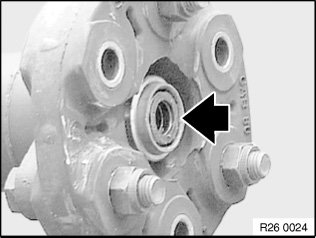

Check centering mount.

Replace damaged centering mount.

Grease centering mount.
