37 90 ... Troubleshooting, Leakage, Dynamic Drive

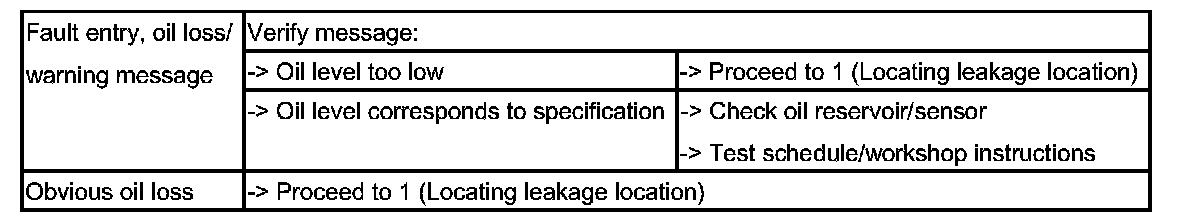

37 90 ... Troubleshooting, leakage, Dynamic Drive

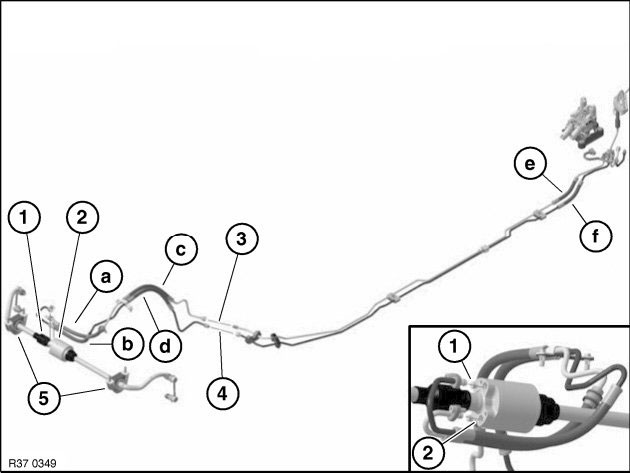

1. Locating leakage location, lines, front axle

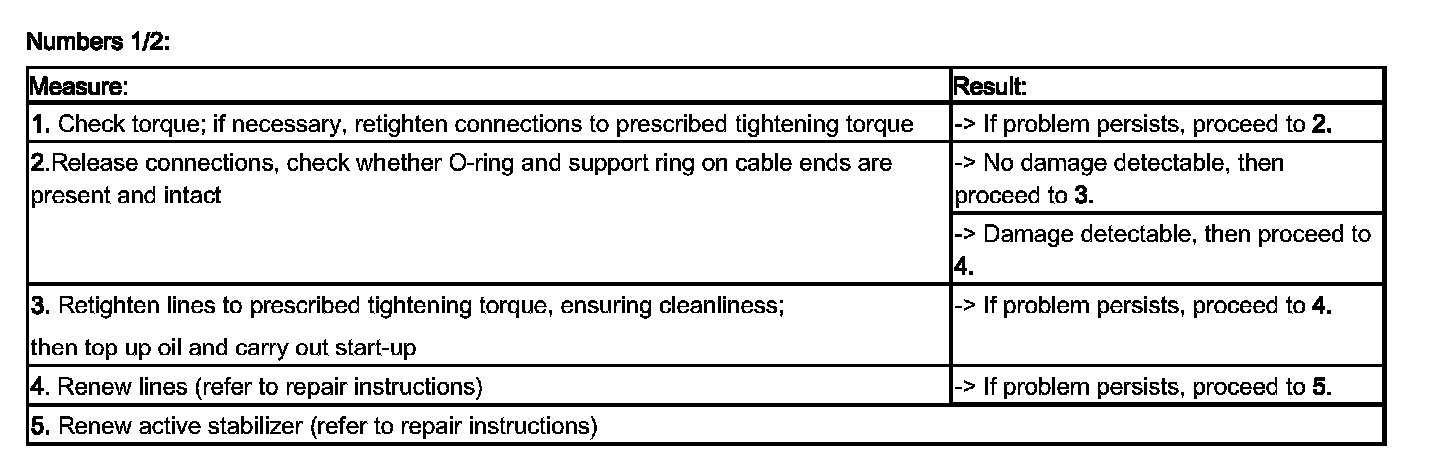

Pressure lines:

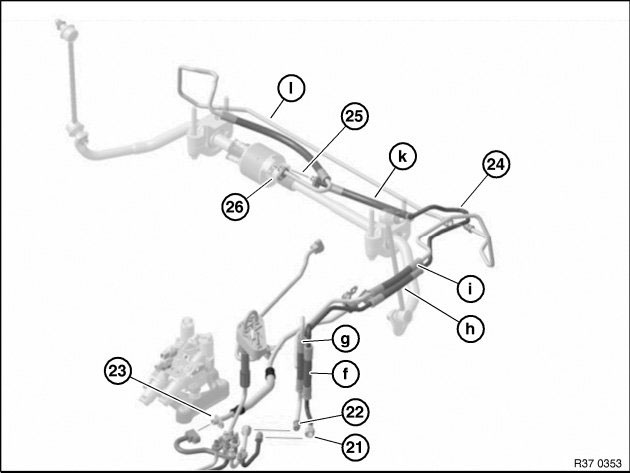

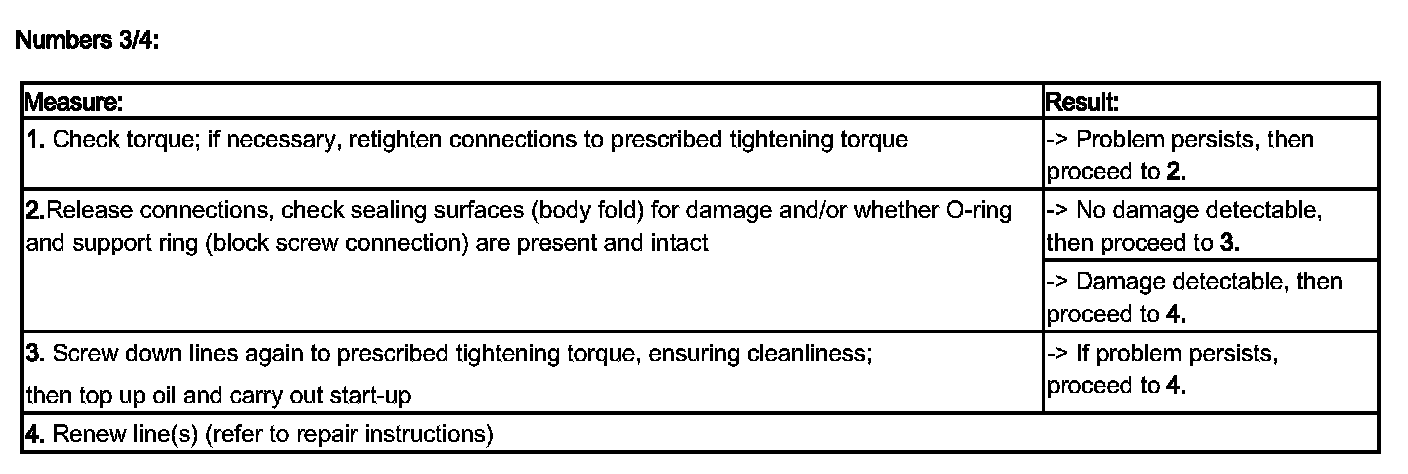

Lines, rear axle/underfloor

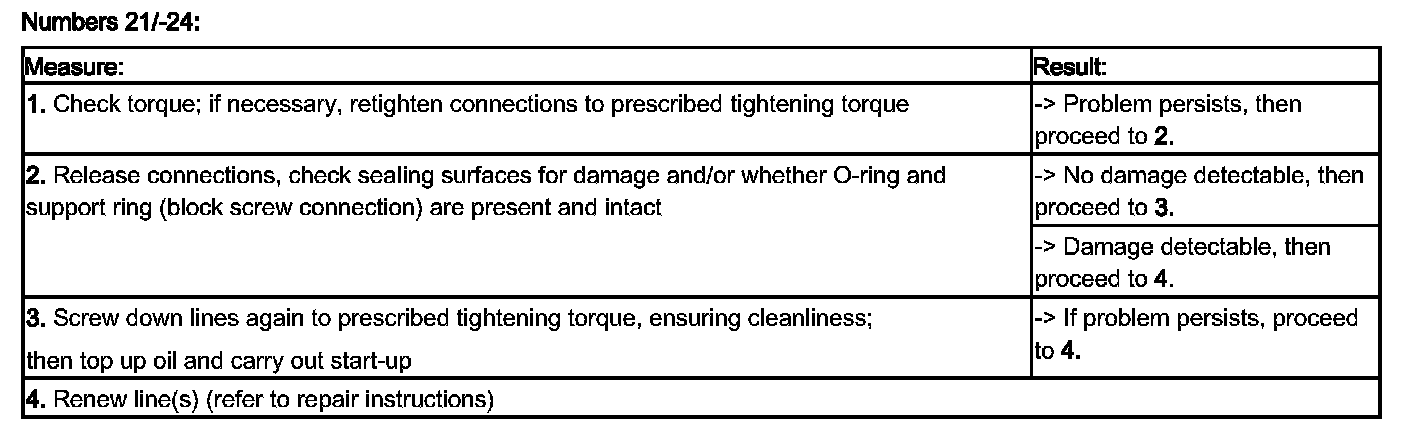

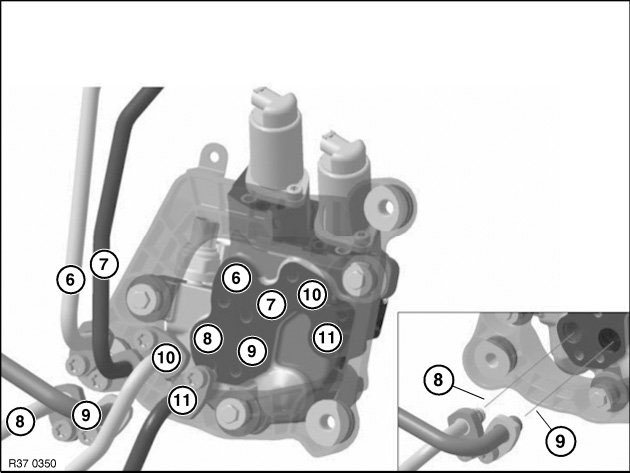

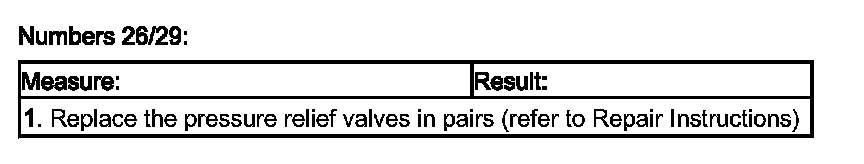

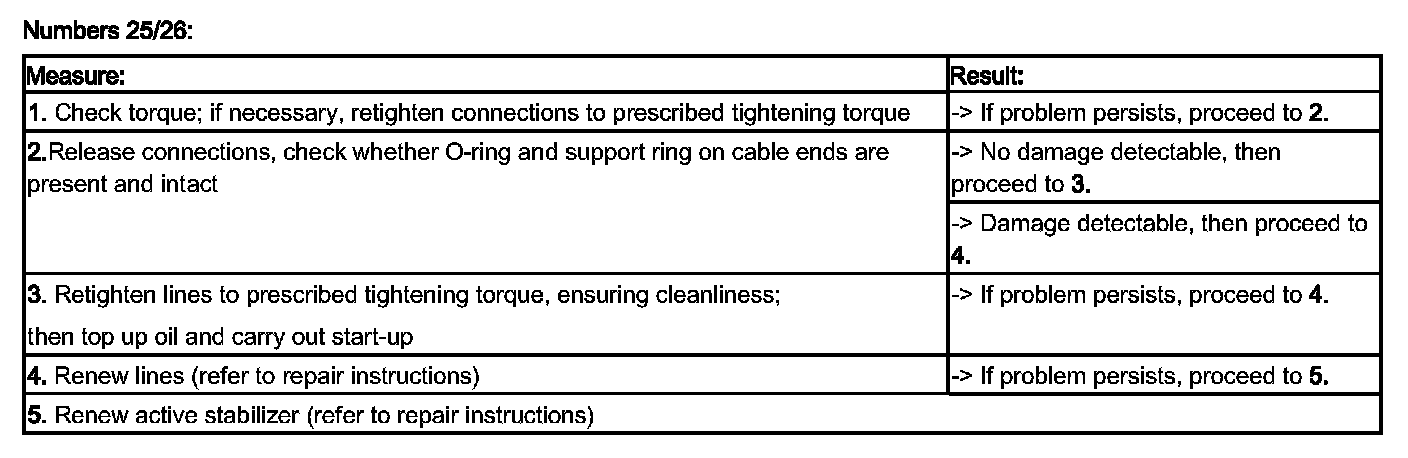

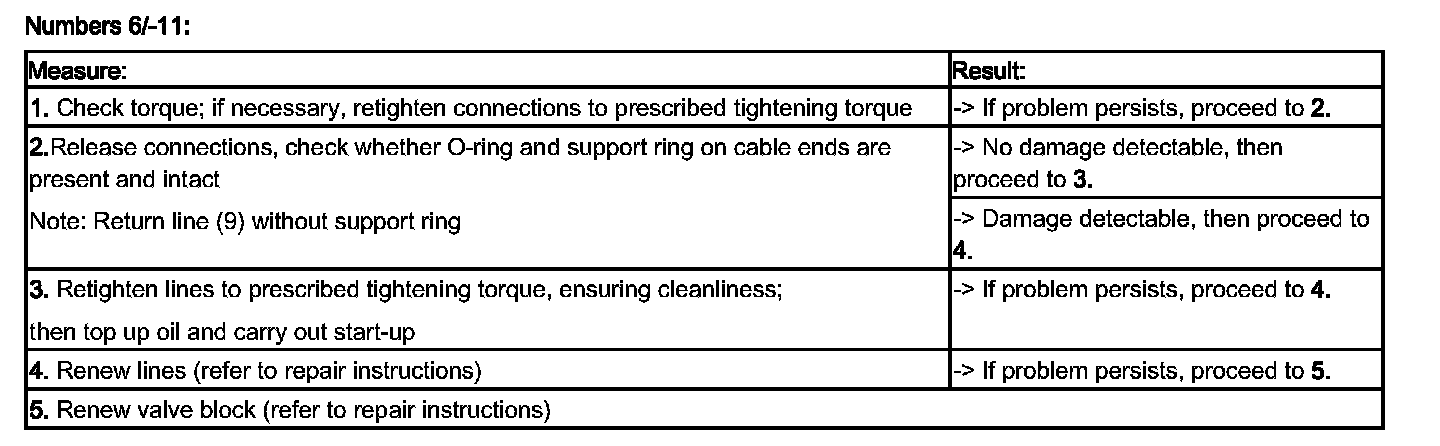

Valve block - connections:

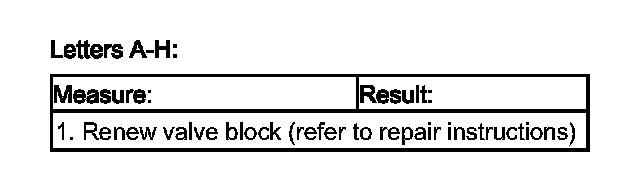

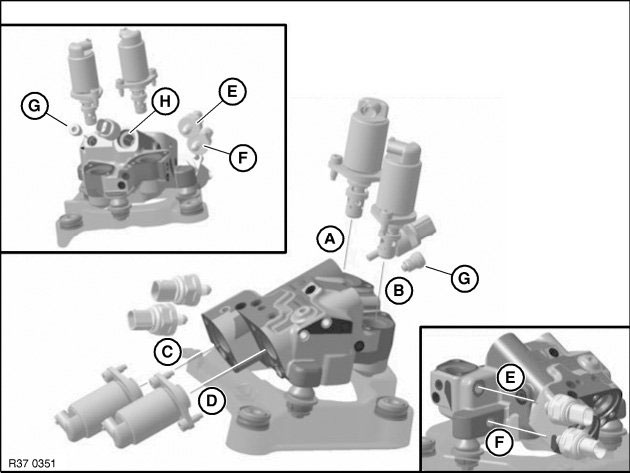

Valve block - add-on components:

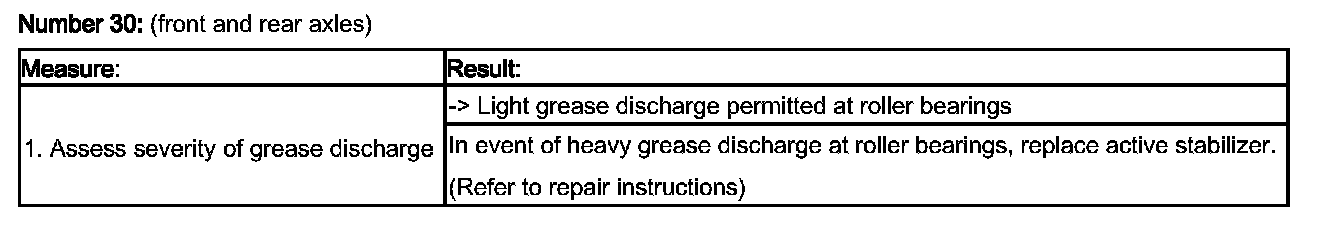

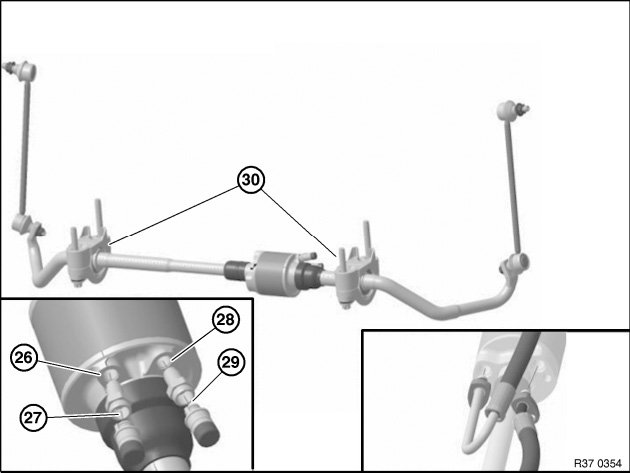

Active stabilizer, front axle
